Modix BIG-60 V4

Large Build Volume, Premium Components, Affordable Price
Print Volume of 600 x 600 x 660mm

Modix BIG-60 v4 3D printer is Modix's flagship 3D printer model. Introduced back in 2017 and now in its fourth iteration. Modix BIG-60 presents a competitive mixture of large build volume, premium components and a competitive price. As before, the improvements made in V4 are shared with all other models. New versions are designed with backward compatibility in mind, therefore owners of previous versions enjoy periodical performance improvements and long term high return on their investment.

Special order terms apply. Payment in full required when order is placed. This item cannot be returned or cancelled for any reason. All purchase orders require payment in full by ACH bank transfer.

Please Note: Requires freight shipment for delivery.

BIG-60 Specifications

Delivery: self assembly kit
Print volume: 600 X 600 X 660 mm (XYZ).
Machine Size (WxDxH): 906x1060x1,356 mm
Shipping Weight: 140 KG (depend on add-ons selection)
Enclosure: Optional
IDEX – Secondary print head – optional
Z Axis Guides: Smooth rods, Hiwin rails – optional
Additional add-ons available below.
Price includes 12 months of warranty and lifetime support. Warranty does not include degradable (PEI sheet and nozzles) and consumables. Warranty can be extended up to two additional years, please select the desired extension below.

Improved Generation 4 Offering:

Generation 4 upgrades include: the new Griffin print head, IDEX compatible, increased print speeds, fully automated calibration and other now standard features to increase ease of use.

IDEX enables printing of models with internal geometries, provides high quality surface finish while reducing post processing time.

Griffin print head offers high printing quality, impact resist, easy-swap and higher printing temperatures than before.

Reliability sensors suite designed to save print-jobs on time. It can detect filament run-out, under extrusion and clogs.

Comprehensive set of automatic calibration tools including: bed tilt calibration, bed leveling, gantry alignment and Z offset calibration.

Professional Features

Bondtech Direct Drive

Custom Bondtech direct drive for superior extrusion.

Linear Rails

Hiwin guide rails for high precision.

Touch Screen

7in touchscreen & web interface for remote monitoring.

Duet Controller

Advanced 32bit electronics with web control interface.

Shielded Wires

IGUS signal cables for higher reliability.

Active Air Filter

Protect your health with Carbon and HEPA filters set. (Optional)

Griffin Print Head

High flow hotend balances high performance and ease of maintenance.

IDEX ready platform

Available Independent Dual Independent Extruders

Full Auto Calibration

Automatic Gantry alignment and bed tilt calibration.

clog detector

Detect clogs, under extrusion and filament run-outs.

Crash detector

Detect hardware failures and prevent crashes.

Tilt Screen with Reset Button

Frontal power now standard

Tilt screen & emergency reset optional in some models.

Tour The BIG-60

Easy access from both top lid and frontal doors.

Easy User Interface – 7 inch touchscreen & web-access (WiFi) interface & emergency stop button (electronic controller reset)

Feeding filament through the filament the clog detector that can detect: filament run-out, under extrusion and hotend clogs.

Printing with dual independent extruders (IDEX). Idle print head parks outside the bed while inactive.

Large 3D printing space for any of your large projects.

Tilt screen, frontal power switch and a secondary larger emergency stop.

Key Features

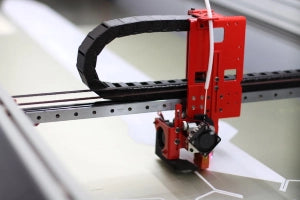

Heavy Duty Design

High Strength Chassis

All Modix 3D printer chassis and frames are built using solid 40x40 T-Slot aluminum profiles. This high quality frame material gives you the rigidity necessary to print accurately and reliably over the entire build volume of even Modix's biggest printers. A 3D printer is only as strong as its joints, and the Modix team knows it. All of the Modix large format 3D printers are held together with powder coated laser cut aluminum brackets & joints. These custom made pieces are capable of keeping every joint strong and square with every change of direction of the printhead.

Solid 40X40 T-slot aluminum profiles
Powder coated laser cut aluminum brackets and joints
Enclosure – Closed enclosure made of 3mm black Aluminum Composite Panels (ACP). Enclosure is an optional add-on for BIG-60, BIG-120X & BIG-120Z and a default option for BIG-Meter and BIG-180X.

High Speed Motion System

Modix’s printers are now capable of printing significantly faster than before. Travel speed of up to 350 mm/s, and printing of up to 250 mm/s.

HIWIN MGW9H linear guide rails
Four Z ball screws for Z axis movement. 12mm diameter, 4mm pitch
9 mm width Gates GT2 timing belt, reinforced with fiberglass
Motors: X & Z Axis: NEMA-23, Y Axis: NEMA-17
Mechanical position accuracy: X-10 Micron, Y-10 Micron, Z-0.5 Micron
Print speed (based on 0.4mm nozzle):
Up to 100 mm/sec – normal quality
Up to 250 mm/sec – draft / non functional infill
Up to 350 mm/sec – travel
Larger nozzles normally are required to print slower but provide parts much faster due to a reduced number of layers.

Improved Rigidity & Reduced Weight

Modix Generation 4 3D printers have been modified to support faster speeds. The lightning fast print speed has been made possible thanks to strong NEMA 23 motors on the X axis instead of NEMA-17 motors.

In addition, the weight has been reduced on the Y axis as the weight of one motor is split now into two independent ones, using the IDEX setup.

The Z axis been improved with CNC machined brackets that hold the bed firmly and at a higher level of accuracy.

Premium Print Bed

High quality, low-warp print beds are incredibly important for large format 3D printers. That is why Modix only sources incredibly high-quality parts for their printbeds.

6.35mm thick, Alcoa Mic6 milled cast aluminum plate, made in the USA.
AC powered bed heater 1370 Watt (1,200 Watt for 110V users). Requires a dedicated independent 15A AC source.
Dual heating zones. Inner 200X200mm size for small objects and lower power consumption.
Max temperature – 110oc (with enclosure)
Print surface – PEI film with 3M high temp adhesive sheet.

Removable Magnetic Bed

This add-on will greatly improve the user experience and save you time on a daily basis. Modix’s printers are delivered by default with a PEI sheet that releases the print once the bed is cooled down to room temperature. With the removable magnetic bed add-on, users do not need to wait or work hard with a spatula and can easily and immediately remove objects after completing the print job by simply bending the spring steel plate.

This add-on includes an adhesive magnetic sheet that should be fixed to the aluminum bed plate and a removable spring steel plate that should be placed on top of it.
The flexible spring steel plate can be printed on from both sides. One side is PEI powder coated providing textured bottom surface and the other side is serviced with a smooth PEI sheet providing a glossy bottom finish.

Another advantage is with maintenance, the PEI installed on the bed plate can degrade over time. Print removal with a spatula may result in unwanted scratches that later appear at the bottom of the printed object. Replacing the PEI on the removable spring steel or even buying a spare unit is much easier than removing it from the bed plate itself.

Designed with Safety in Mind

Recommended Enclosure

The enclosure helps to improve the printer stability providing higher quality print results. It captures the heat generated from the bed, creating a passively heated chamber. This heated chamber helps to reduce wrapping and cracks due to uneven part cooling.

Enclosure made of 3mm black Aluminum Composite Panels (ACP). Enclosure is a highly recommended add-on for the BIG-60, BIG-120X & BIG-120Z and a default option for BIG-Meter and BIG-180X.

Recent Improvements

The new Modix Generation 4 enclosure enjoys a fresh updated design and has been improved by adding the following features:

Pneumatic top lid
Rear maintenance opening hatch
Sturdy door hinges
Door and lid sealing strips
Improved internal led lighting

Active Air Filter

The Modix Active Air Filter (MAAF) is an external air filter device. The filter cleanses the printers’ chamber by capturing micro-particles and gas fumes that are released from melted filament throughout the 3D printing process. MAAF provides a constant air cleansing process during the entire printing process, circulating the air in and out and back into the printer while cleaning it repeatedly.

Multi-layer filtering
A large fan inside the device draws the air from the printer through a flexible vent tube connected to the top of the device. The air is then guided through a set of three filters before it is circulated back into the printer.

The triple filter system includes:

1. Pre-Filter – Remove large dust particles from the air.
2. HEPA Filter – High-Efficiency Particulate Absorbing (HEPA) filter, composed of a mat of randomly arranged fiberglass fibers designed to capture tiny particles released during printing.
3. Active Carbon Filter – Clean the air from toxic fumes released during the 3D printing process.

Highly recommended

It is about your health!
Sub-micron particles and fumes released during the plastic melting process pose risk to your health. Therefore, every owner of a Modix 3D printer is strongly advised to install an air filter. Air filter is a MUST-HAVE add-on if you intend to print with any plastic beyond PLA, i.e. PETG, ABS… Although common knowledge is that printing PLA in a well-ventilated room is fine, there is no clear definition of proper room ventilation and during the winter and summer times windows are normally closed.

Controlling the air speed
Frontal speed selector allows controlling the air flow speed. Running the filter on the lowest speed during the printing process will not affect the internal chamber temperature while providing effective filtering. By the end of the printing, you can set the speed for the highest option for a few minutes in order to ensure the complete chamber has been cleaned of any harmful additives opening the doors.

Spare Filters
Considering the daily use of the printer in a clean room, the HEPA/Carbon combo filters last from 6 to12 months and the pre-filter from 3 to 6 months. An alert indicator to change the is located on the front panel.

Active Air Filter

The Modix Active Air Filter (MAAF) is an external air filter device. The filter cleanses the printers’ chamber by capturing micro-particles and gas fumes that are released from melted filament throughout the 3D printing process. MAAF provides a constant air cleansing process during the entire printing process, circulating the air in and out and back into the printer while cleaning it repeatedly.

Multi-layer filtering
A large fan inside the device draws the air from the printer through a flexible vent tube connected to the top of the device. The air is then guided through a set of three filters before it is circulated back into the printer.

The triple filter system includes:

1. Pre-Filter – Remove large dust particles from the air.
2. HEPA Filter – High-Efficiency Particulate Absorbing (HEPA) filter, composed of a mat of randomly arranged fiberglass fibers designed to capture tiny particles released during printing.
3. Active Carbon Filter – Clean the air from toxic fumes released during the 3D printing process.

Highly recommended

It is about your health!
Sub-micron particles and fumes released during the plastic melting process pose risk to your health. Therefore, every owner of a Modix 3D printer is strongly advised to install an air filter. Air filter is a MUST-HAVE add-on if you intend to print with any plastic beyond PLA, i.e. PETG, ABS… Although common knowledge is that printing PLA in a well-ventilated room is fine, there is no clear definition of proper room ventilation and during the winter and summer times windows are normally closed.

Controlling the air speed
Frontal speed selector allows controlling the air flow speed. Running the filter on the lowest speed during the printing process will not affect the internal chamber temperature while providing effective filtering. By the end of the printing, you can set the speed for the highest option for a few minutes in order to ensure the complete chamber has been cleaned of any harmful additives opening the doors.

Spare Filters
Considering the daily use of the printer in a clean room, the HEPA/Carbon combo filters last from 6 to12 months and the pre-filter from 3 to 6 months. An alert indicator to change the is located on the front panel.

Redesigned Toolhead

Bondtech Direct Drive

Modix Generation 4 Printers are now better equipped for speed, precision and thanks to direct drive- a wider array of materials. Large format printers with Bowden type extruders often have difficulty feeding due to the increased distance from extruder to hotend. Gen 4 Modix printers come equipped with Bondtech BMG direct drive units made custom for Modix Large format printers. The new print-head combines superior extrusion with the now standard Griffin hot-end for a wonderful balance of highflow, precision, and ease of maintenance.

Griffin Print Head

Previously an optional upgrade but now the default print head on all Modix printers, the new Griffin print-head is a major improvement to the capability of Modix printers. It consists of a custom extruder made by Bondtech (based on the BMG model) and of a new hotend designed by Modix. The new design comes default with every Modix printer and includes the following improvements:

High flow rate & high printing temperatures: The Bondtech extruder provides a double drive-gear system that grabs the filament from both sides. The heat-block is made of nickel-coated copper, for an increased rate of heat transfer and compatibility with higher printing temperatures. The design includes the advanced Slice Engineering Bi-Metal heat-break that extends the melting zone inside the heat-block by being mostly made of copper as well. In addition, an upgraded PT-1000 temperature sensor enables printing in higher temperatures of up to 500°c. The hotend components are rated for 500°c and so far have been verified with printing of up to 340°c.

Higher reliability: Large scale 3D printing usually involves the risk of the print-head scratching or crashing into the thick layer models resulting in bent or broken heat-breaks. The new print-head provides a rigid mounting of the heat-block, so it’s naturally more reliable and reduces these situations. The main reason for this is that the heat-block is now mounted on three faces instead of only one. It can withstand a much stronger impact thanks to this additional bracing. The longer-type E3D Super Volcano can also be attached to the rigid mounting as well, using a dedicated adapter (Late summer 2022)

Improved User Experience: The new print-head design makes nozzle replacements easier. The rigid mounting of the heat-block allows one handed nozzle replacement, making it even easier to change to different nozzle diameters.

Easy Swap: The design of the mounting bracket and the D shaft style of the Slice Engineering heat-break gives users the ability to replace the entire filament melting subsystem with ease. This will allow users to dedicate a complete setup for a specific filament type. i.e., keeping one setup for abrasive carbon filled filament and another for prototyping with PLA.

Compact Design: The new design maintains the previous design benefits of compact design that preserves the generous Z-axis travel and is compatible with the vast offering of E3D Volcano nozzles coming in numerous sizes and materials.

Smart: The new print-head allows automatic Z off-set calibration between the nozzle and the BL Touch probe. This is easier and more precise than the manual procedure. A dedicated sensor allows the BL-Touch and the nozzle to touch the surface, consequently. The precise relative distance between the probe and the nozzle (“Z-offset”) is saved automatically to the printer.

IDEX dual printing add-on

“IDEX” stands for independent dual extruder, where each extruder is capable of moving independently from each other. As a result, while the active extruder is printing, the second extruder is “parked” outside the printing area. Therefore, dual material printing made with IDEX technology comes out cleaner and with higher success ratios in compare to other configurations as such the two print heads are installed side by side on the same carriage.

IDEX allows printing of advanced models that have internal geometries by using water-soluble filament. In addition, printing the dense support layers (interface layers between the model and the solid support structure) with a breakaway support filament, saves a lot of manual labor for support removal. In addition, since there is no need to keep air gap between the dense support and the model itself as normally happened when using the same material for support, the supported bottom surface of the models comes out clean and smooth. This saves a lot of time needed usually for sanding during the post process.

The IDEX is sold as an optional add-on for all generation 4 printers. includes:

Secondary printing subsystem: Griffin print head, clog detector, PTFE, spool mount.
Motion system: secondary Y axis motor with the required components (belts, pulleys etc.).
Metal brackets for both Y axis and print heads
Wires, drag chains and optical end-stops.

Super Volcano

Super volcano hotend high flow is an optional add-on designed for customers who print large bulky objects and need to print fast. It is also an excellent choice for printing thick vase mode style objects since the single walled objects are stronger.

This add-on is based on the E3D super volcano heat-block and nozzles. It is provided with 80W heater and a thermistor. The new addition is now delivered with a mounting CNC made bracket. This mounting protects and stabilizes the long heatblock during printing. As a result it provides high print quality as vibrations are minimized during accelerations.

Includes:

E3D SuperVolcano heater block
1mm nozzle brass nozzle
Slice Engineering bi-metal heat-break
80W heater
CNC adapter
Blower Fan & duct

Premium Electronics

Electronic Controller

Duet 2 WiFi, a powerful 3D Printer controller made in the UK. Duet is a well known and widely supported electronic platform for professional 3D printers. It is made by a respectful company and it is a major factor in the ability to provide ongoing high level of quality and reliability.

Powerful 32 Bit Processor
Dedicated WiFi module with external antenna
Quiet TMC2660 stepper drivers, up to 256 micro-stepping.
High speed USD card and support for a second external SD card if required.
Dual extruders controlled on the main board, up to 5 additional stepper motor drivers are controlled on the DUEX expansion board.
High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A.
Access the printer via a PC, tablet or smartphone on a local network.
Set up and control your printer through the web interface.

Fully Automated Calibration

All Modix printers are now delivered with the electronic expansion board named “Duex 5”. By using Duex 5, a dedicated stepper motor driver is allocated for each Z and X axis motor. As a result, Modix printers now offer a full set of automated calibration routines to all Generation 4 models, including:

Bed tilting calibration
Bed leveling
Gantry alignment
Z offset calibration

Interfaces

Modix printers come with a 7-inch Duet3D touchscreen which is integrated directly with the Duet 2 controller board. The custom-made 7-inch color touchscreen has an 800x480 pixel resolution and integrated high-speed slots for both SD cards and USB. Even though Modix printers can be fully remotely controlled with your computer or even your phone, you don't need to with the full-function touchscreen.

Touch Screen- 7-inch Duet3D touchscreen – integrated with the controller
Front interface updated with convenient frontal power switch

Web Interface – WiFi web access for remote control from either mobile or PC
Directly upload files from workstation

Tilt Screen, Emergency Button & Frontal Power switch

This trio feature combo is standard for BIG-Meter and BIG-120Z. The tilt screen and emergency button are offered as an add-on for the rest of the printers. The Frontal power switch is standard on all models.

Tilt Screen – Mounted on an articulated arm, the tilt screen is a convenience feature. It is very useful during print head calibration process and other maintenance routines as you can always turn the face towards you. Left right, upwards or downwards.

Emergency Reset Button – Together with the tilt screen update, an emergency reset (software reset) button is now located on the front of the machine. This control and safety feature will allow you to immediately stop prints whenever needed.

Frontal Power Switch – Easy to reach power on/off button. Useful when the printer is installed in a tight corner.

Helpful Components

Clog Detector

Previously an optional add-on and now default with every printer, is an improvement to the printer’s reliability. The clog detector is provided with a custom highly sensitive encoder capable of detecting for following potential failures:

Hot-end clogs
Knots in the filament spools
Filament run-out
Under extrusion such as when the nozzle temperature is too low, or the nozzle is too close to the bed.

When a failure is being detected, the printer is paused and the print job can be saved. No more discovering your printer printing midair!

Crash Detector

Previously an optional add-on and now default with every printer is an additional layer of safety in rare cases where the BL-Touch bed leveling probe fails and this failure is not being detected by the printer controller. In this case, the detector will prevent the print head from crashing into the bed plate.

Optical end-stops

End-stop switches are now upgraded to optical switches in all Generation 4 printers. Optical switches are more accurate and have a high level of repeatability over time. This is especially important for job recovery after a power outage.

8KG Spool Mounting Shelf Add-on

A refreshed design of the spool mounting shelf will now enable mounting 8KG. It is designed to work with or without the enclosure. The 8KG Spool Shelf comes standard on the BIG-Meter and BIG-180X.

PTFE management

With Generation 4, the PTFE tube rests in a roller guide that ensures its most relaxed position and as a result this reduces the friction inside the tube.

Top cover on	Top cover slide-out
Back cover on	Back cover slide-out

Wire Management

With generation 4, all the wires connectors are located on top of the print head. Both top and back covers are easily slide-in – & slide-out for maintenance. No need to remove the mounting screws.

Top cover on	Top cover slide-out
Back cover on	Back cover slide-out

Adaptable Platform

Open-Source Software & Firmware

Modix 3D printers all come with open-source Duet RepRap firmware. This firmware is developed and supported directly by Duet3D, the manufacturer of the Modix controller board. This firmware allows you to easily create multiple configurations. You can also easily customize using a macro system. Modix accepts generic g-code, allowing you to use open-source slicers. Modix recommends Simplify3d, but you can also use Slic3r, Cura, and many other programs. Modix also provides specific configurations for settings.

Open-source Duet RepRap firmware. The leading firmware for 3D printing allowing numerous configurations and easy customization using the macro system.
Choose from any available slicer and 3D printer controller including: Slic3r, Cura, and Simplify3d.
Specific printer configurations are supplied in the customer zone.

Open Material Platform

Modix is an open-material platform that uses 1.75mm 3D printer filament. That means that you can use any brand of filament you want, not locking you into a specific brand. This gives you the flexibility to use the filaments that you like and try out fun and exciting new materials.

Modix's printing head supports almost any existing filament including: PLA, ABS, composites: Carbon fiber, Wood, Copper, Brass, Magnetic, PHA, PVA , Hips, Nylon, TPE & TPU (flexible) Co-Polyester, PETG

Open Material System – Any filament from any vendor can be used.

Technical Information

Power

Support both 110V and 230V
For electronics: Meanwell 24V 280W Power Supply
- Protections: Short / Over-load / Over-voltage / Over-heating.
- No load power consumption<0.5W
- LED indicator for power on
- Aviation grade switches and connectors
Heat Bed AC powered heater 1370 Watt
PID bed heater controller by Autonic
BIG METER and 180x require 208-240V, 32A connections
- North America customers: NEMA L6 30P 30A outlet
- EU/AU/UK customers: IEC 309 32A Blue (2P+E) outlet
Tripp Lite PDU for meter and 180x
- North American customers: https://www.tripplite.com/support/PDUH30HV
- EU/AU/UK customers: https://www.tripplite.com/support/PDUH32HV

Power Distribution Unit (PDU)

PDU is included by default with the BIG-Meter and BIG-180X due to their high current drawing requirements. Since it has been found to be a very convenient cable management solution, it is now offered for all other models*. Replace 3 AC cables with only one cable connected to the wall.

* This solution does not support BIG-120X running on 110V, please contact the sales team for an alternative solution.

Modix BIG-60 Videos

(will be updated with V4 soon)

Modix Big-60 Assembly time-lapse

Assembly Highlights from the online guides

Sequence printing (one by one)

Modix Big-60 printing multiple models

Printing of large object

Printing complex model on BIG-60 V2
