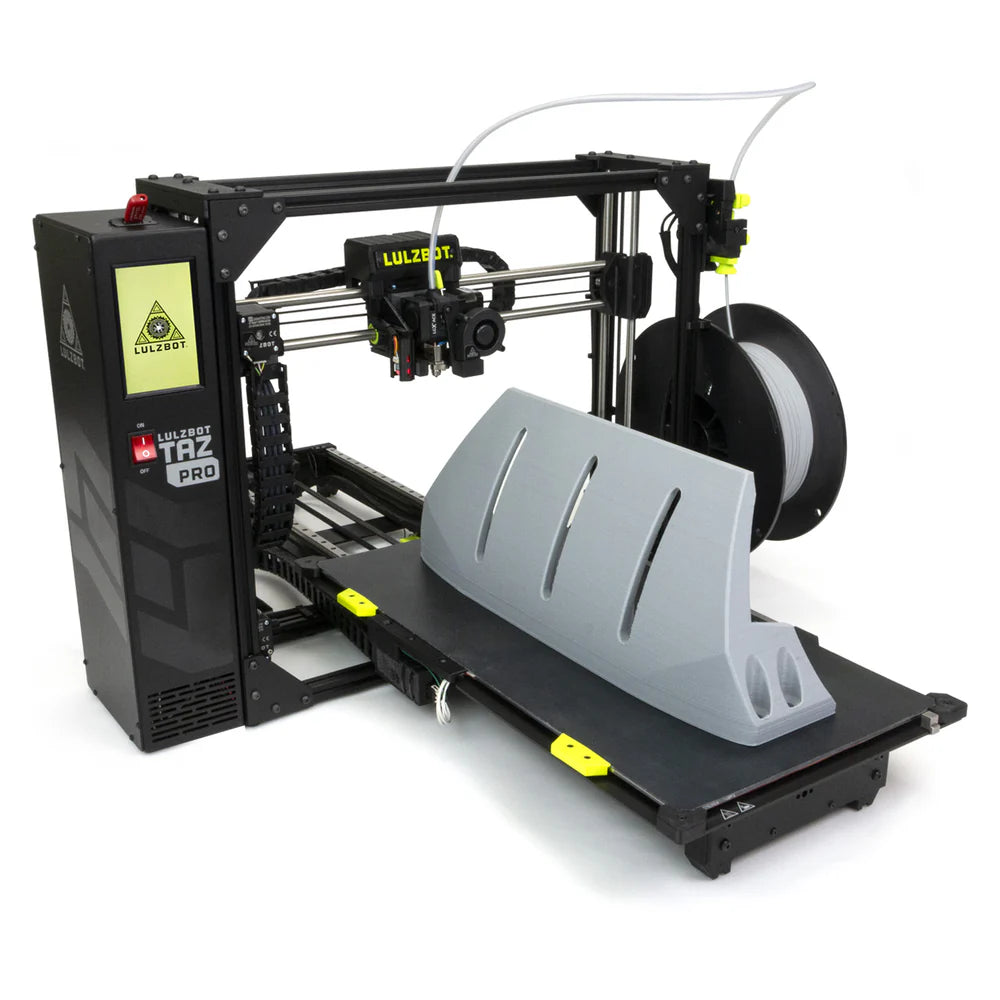

LulzBot TAZ Pro Long Bed V2
Overview
This isn't just a 3D printer; it's a USA-Made powerhouse that redefines scale and strength. With its sprawling build platform, the TAZ Pro Long Bed v2 echoes the might of a freight train, chugging through layers of .gcode with unwavering reliability and strength.
No wonder its seen as a 3D printing freight train!
TAZ PRO LONG BED FEATURES
Asteroid 285 Tool Head: The Asteroid 285 Tool Head features dual heater cartridges, delivering high-volumetric material flow through a 1.2mm GammaMaster nozzle.
Industrial Y-Axis Rails: Robust y-axis rails feature drylin W coating, a self-lubricating and maintenance-free material. A clean environment and less friction means quieter operation lower potential for artifacts in prints.
Known Reliability: Enter a new dimension of printing with the quality and performance that the LulzBot TAZ Pro line is known for. The Pro platform paired with the extended y-axis will take your projects to the next level.
Magnetic Flex Sheet: Its machined aluminum magnetic bed comes with a Laminated PEI blue spring steel top sheet, a durable and flexible alternative to glass beds. Equipped with neodymium magnets, it securely holds the print sheet while allowing for easy removal.
Massive Build Size: Feel confident throughout extended prints with the improved Filament Runout and Stripping Sensor. The filament is constantly monitored to prevent interruptions from various filament mishaps.
Updated Runout Sensor: Feel confident throughout extended prints with the improved Filament Runout and Stripping Sensor. The filament is constantly monitored to prevent interruptions from various filament mishaps.
What's in The Box?
- LulzBot TAZ Long Bed V2 3D Printer
- 1kg Polylite LulzBot Green PLA
- LulzBot 16GB USB Flash Drive
- LulzBot Die-Cut Sticker
- Premium Tool Kit
- Standard 1 Year Warranty
- Unlimited Access to LulzLessons Curriculum
- Unlimited Downloads of Cura LE Software
Parts & Specifications
3D Printing Technology: | FFF (Fused Filament Fabrication) |
Build Volume: | 282 x 582 x 285 mm (11.10 x 22.91 x 11.22 inches) |
Standard Tool Head Model: | Asteroid 285 |
Equipped Layer Height Range: | 0.3mm (300 microns) to 0.9mm (900 microns) |
Platform Layer Height Capabilities: | 0.05mm (50 microns) to 1.8mm (1800 microns) |
Nozzle Diameter & Material: | 1.2mm GammaMaster® Steel |
Maximum Hot End Temperature: | 290°C (554°F) - Firmware Limited |
XYZ Positional Resolution: | X and Y axes - 0.01mm (10 microns), Z axis - 0.002mm (2 microns) |
Movement System: | GT2 Belt Drive, Linear Rails Y axis, Igus SST Rods and Polymer Bushings X & Z axes |
Maximum Travel Speed: | 150 mm/s - Firmware Limited |
Print Head Heater: | 360W 24V Silicon |
Print Bed Material: | Magnetic Flex Bed System |
Maximum Print Bed Temperature: | 80°C (176°F) |
Filament Diameter Compatibility: | 2.85mm (Standard), 1.75mm (Optional) |
Filament Sensor: | Runout and Stripping Detection |
Mainboard: | 32-bit Archim 2.2b with Trinamic TMC2130 drivers for quiet printing |
Firmware: | Marlin |
Bed Leveling System: | Automatic BLTouch 32-Point Mesh |
Calibration: | Automatic X-Axis Tramming, Z-Offset, and Backlash Compensation |
Power Supply: | 500W 24V Mean Well, Auto-Switching |
Power Input: | 100VAC-240VAC |
Slicer Software Recommendation: | Cura LE (LulzBot Edition) |
OS Compatibility: | Windows, macOS, Linux |
Supported File Formats: | STL, OBJ, X3D, 3MF |
Operating Temperature Range: | 41°F to 113°F (5°C to 45°C) |
Supported Print Materials: | PLA, TPU, ABS, PETg, PVA, PVB, Nylon, PC, and others below 290°C |
Connectivity Options: | USB Serial, Includes 16GB Flash Drive for Standalone Printing |
Certifications: | FCC, CE, RCM, ETL (Intertek/UL), CSA, OSHWA, WEEE |
Country of Origin: | USA |
Part Number: KT-PR0066NA
