Note: This item is made to order in the USA. Please allow up to 6 weeks from purchase for fulfillment.

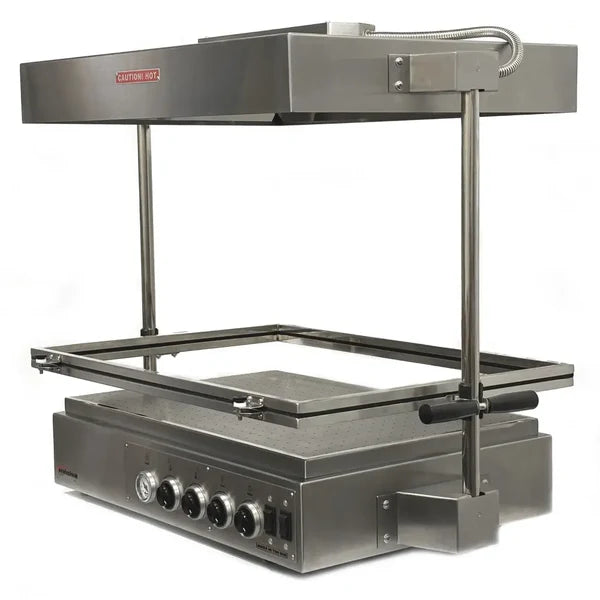

The Centroform EZFORM LV 1827 V2 is a professional vacuum forming machine designed for prototyping, short-run production, mold making, packaging, signage, special effects, and a wide range of custom thermoforming applications. Its 18" x 27" forming area accommodates plastic sheets from approximately 21 1/4" x 30 1/4" up to 22" x 31", while the machine can form thermoplastic sheets up to 1/4" thick with a maximum draw depth of approximately 9–11 inches, depending on mold geometry and material. Centroform's EZFORM machines are individually manufactured in the USA and feature an all-stainless-steel welded construction designed for demanding forming applications.

What sets the EZFORM LV 1827 V2 apart is its dual adjustable built-in vacuum system, making the machine a true plug-and-play solution without requiring a separate shop vacuum or external vacuum pump. During forming, the vacuum motor initially removes the majority of the air, then a vacuum pump automatically takes over to remove remaining air and help achieve fine detail. The vacuum level and duration are adjustable, and an integrated vacuum gauge provides a visual reference during operation. A small internal chamber also helps the machine achieve faster suction.

The LV 1827 V2 uses two independently adjustable 1,500-watt heating elements for 3,000 watts of total heating power, engineered to provide uniform heat distribution across the forming area. Its welded and polished stainless-steel quick-load frame adjusts for different plastic thicknesses and moves quickly into position before the heated sheet begins to cool. The machine is compatible with a broad range of thermoformable materials, including styrene, acrylic/Plexiglas, PET-G, PVC, ABS, polyethylene, vinyl, polycarbonate/Lexan, and other formable plastics.

The EZFORM LV 1827 V2 operates on standard 110–120V single-phase power, with a 210–240V single-phase version also available. With its combination of a large 18" x 27" forming area, integrated dual-stage vacuum system, adjustable heating, stainless-steel construction, and ability to form plastics up to 1/4" thick, it provides a versatile solution for professional shops, fabrication environments, makerspaces, educators, product developers, and manufacturers looking to produce formed plastic parts in-house.

Specifications:

• Unit measures: 30.5 " high x 37 " long x 22 " wide
• Plastic sheet size: 21 1/4 " up to 22 "x 30 1/4 " up to 31 " ( 6 pieces out of a standard 4 x 8 feet sheet )
• Forming area: 18 " x 27 "
• Weight: 75 lbs
• Voltage: 110-120 ( Also available in 210 - 240 volts single phase )
• Max depth of draw: 9-11 inches depending on mold Geometry
• Adjustable temperature - heater: 1500 Watts x 2 ( 3000 Watts Total )
• Plastic thickness: up to 1/4"
• Vacuum level and duration fully adjustable
• All stainless steel body
• Vacuum Gauge
• DUAL ADJUSTABLE BUILT IN VACUUM SYSTEM First the vacuum motor removes most of the air followed by a vacuum pump to achieve fine detail automatically

EZFORM LV 1827 MODEL COMPARISON CHART

Which EZFORM LV 1827 Vacuum Forming Machine Is Right for the Application?

The EZFORM LV 1827 E, V2, and VX all provide an 18" x 27" forming area and 3,000 watts of adjustable heating power, but their vacuum configurations and machine sizes differ. The LV 1827 E is designed for users who already have a suitable external vacuum source and want to connect their own shop vacuum, vacuum pump, or other suction equipment. The LV 1827 V2 adds a dual adjustable built-in vacuum system in a more compact 75-lb chassis, making it a convenient plug-and-play option.

The EZFORM LV 1827 VX also includes Centroform's dual adjustable built-in vacuum system but uses a larger 110-lb chassis measuring 41" long by 24.5" wide. All three models can accommodate sheets up to approximately 22" x 31" and form plastics up to 1/4" thick. Choosing between them therefore comes down primarily to the desired vacuum configuration, available workspace, and machine size rather than forming-area capacity or heater power.

Additional Specs

• INDIVIDUALLY MADE IN THE USA
• Patented
• Fuse protected
• All Stainless Steel welded construction , laser cut
• Maintenance free polished edges ( Forming area)
• Small internal chamber which allows quicker suction
• Certified industrial grade components
• Stainless steel welded and polished quick load plastic frame ( adjustable to accommodate different plastic thicknesses ) slides down quickly before plastic starts to cool
• Symmetrically heating element engineered for uniform heat distribution to critical areas with no dead spots
• Forms plastics up to 1/4"
• Operator’s Manual is included with tricks on vacuum forming and molds
• Works with all formable plastics which include : Styrene, Acrylic or Plexiglas, Pet-G, PVC, ABS, Polyethylene, vinyl, and many more
• 1 full year warranty and free technical support
