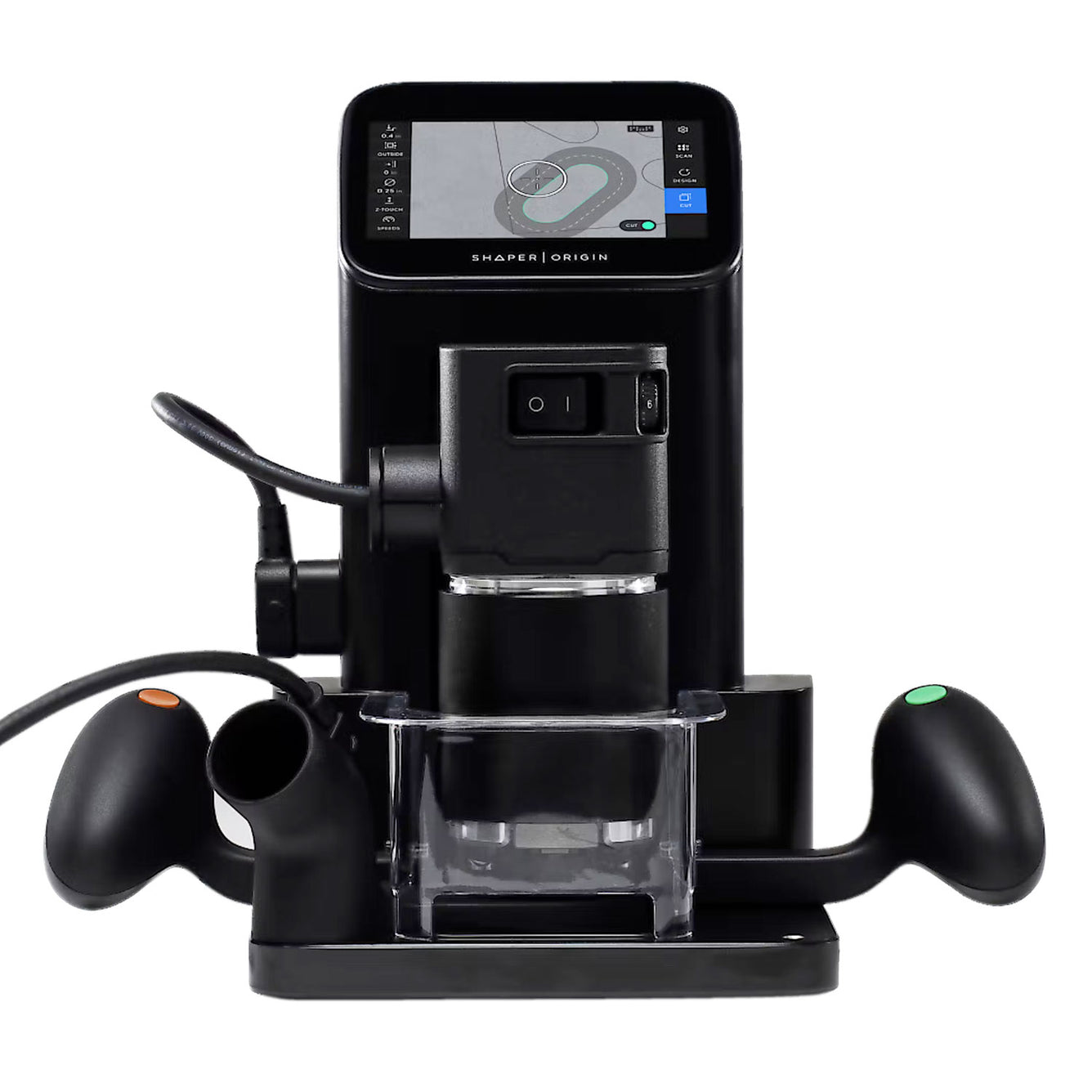

Shaper Origin
Shaper Origin Gen2
Elevate Your Craft
Shaper Origin is an easy-to-use, handheld CNC router providing portable precision cutting. Work with unparalleled accuracy, flexibility & efficiency.
Approach your projects with ease
Bring digital precision to the craft of woodworking
Work hands on with unparalleled accuracy, flexibility and efficiency.
Precise Joinery
Combine Origin with Shaper Workstation to cut mortise and tenons, box joints, and other custom joinery with ease and precision.
The vertical and horizontal workholding capabilities of Workstation allow for a range of different projects and the ability to cut tenons at any angle from 0° to 45° with confidence.
Combine Origin’s Box Joint Basic Extension with Workstation to cut precise box joints with ease.
Easy & Intuitive Workflow
Set up Your Workspace
Apply ShaperTape and scan your work area. Origin automatically detects and stores your Workspace.
Add Designs
Easily create or import designs; no programming required.
Start Cutting
Switch the spindle on and get cutting. Make changes on the fly to adjust for real-world fit.
Unmatched Portability
Bring Origin to the job and work at any scale. Install virtually any hardware or inlay, and route pockets with minimal setup and maximum repeatability.
Combine with Plate – the universal template for Origin – to work on smaller tasks from hardware installation to corner rounding.
Designing for Origin
Set up Your Workspace
Apply ShaperTape and scan your work area. Origin automatically detects and stores your Workspace.
On-tool design
Use Origin to create designs wherever you work. Make adjustments on-site, on the fly, no computer required.
ShaperHub
Explore ShaperHub’s continuously expanding catalogue of downloadable hardware and projects.
Import designs
Work with files from your favorite design software and get cutting faster with quick file transfer through ShaperHub. (USB transfer also available).
Applications
Advanced Joinery
Add sophisticated elements and handcrafted details to solid wood projects and custom furniture.
Custom Signage
Bring text to life with personalized signage, large and small.
Install Hardware
Inlay hardware, cut mortises for door hinges, and make on-the-fly adjustments.
Keepsake Boxes
Bring your idea to life with easy-to-use design and layout tools. Route intricate joinery like this double dovetail box with Origin and Workstation.
Flooring
Create custom inlays, vents, repairs and patches, onsite with precision and efficiency.
Custom Instruments
Cut everything from profiles and pickups to fret inlays and make design adjustments as you work.
Parts & Specs
Touch screen
Capacitive multi-touch full-color LCD
Dust extraction port
Designed for the SM-1 spindle
Fits most standard 27mm & 36mm suction hoses.
120 VAC (60HZ)
Input Power
WiFi & USB
Connectivity
Over the air software updates
Transfer design files via ShaperHub
USB port allows easy offline transfer of design files
Brushed Motor Spindle
720 Watt (AC), 10,000 - 26,000 RPM with load-compensating speed control. Soft-start, over-temperature and over-load safety cut-offs.
Produced with Festool to Shaper specifications
1/4" Collet
Ships installed
Accepts any commonly available
¼” shank router bits
⅛” Collet sold separately
43mm / 1.7"
Z-AXIS MAX Depth
Digitally adjustable depth-of-cut
Automated touch-off sensor
14.9lbs
Weight
12.04in
Height
8.94in
Depth
13.35in
Width
What's in the box?
Tanos Systainer3
23.5 lbs (Origin packaged with accessories)
15 ½” W x 11 ½” D x 17” T
ShaperTape (ST1-150)
2 Rolls (150-feet each roll)
A single roll provides ample coverage for approximately one and a half standard
4' x 8' sheets of plywood
4mm T-Hex Wrench
For spindle removal
Router Bits
1/8" Up-Spiral Bit
1/4" Up-Spiral Bit
V60° Engraving Bit
19 mm Wrench
For loosening / tightening collet
