xTool F2 Ultra UV

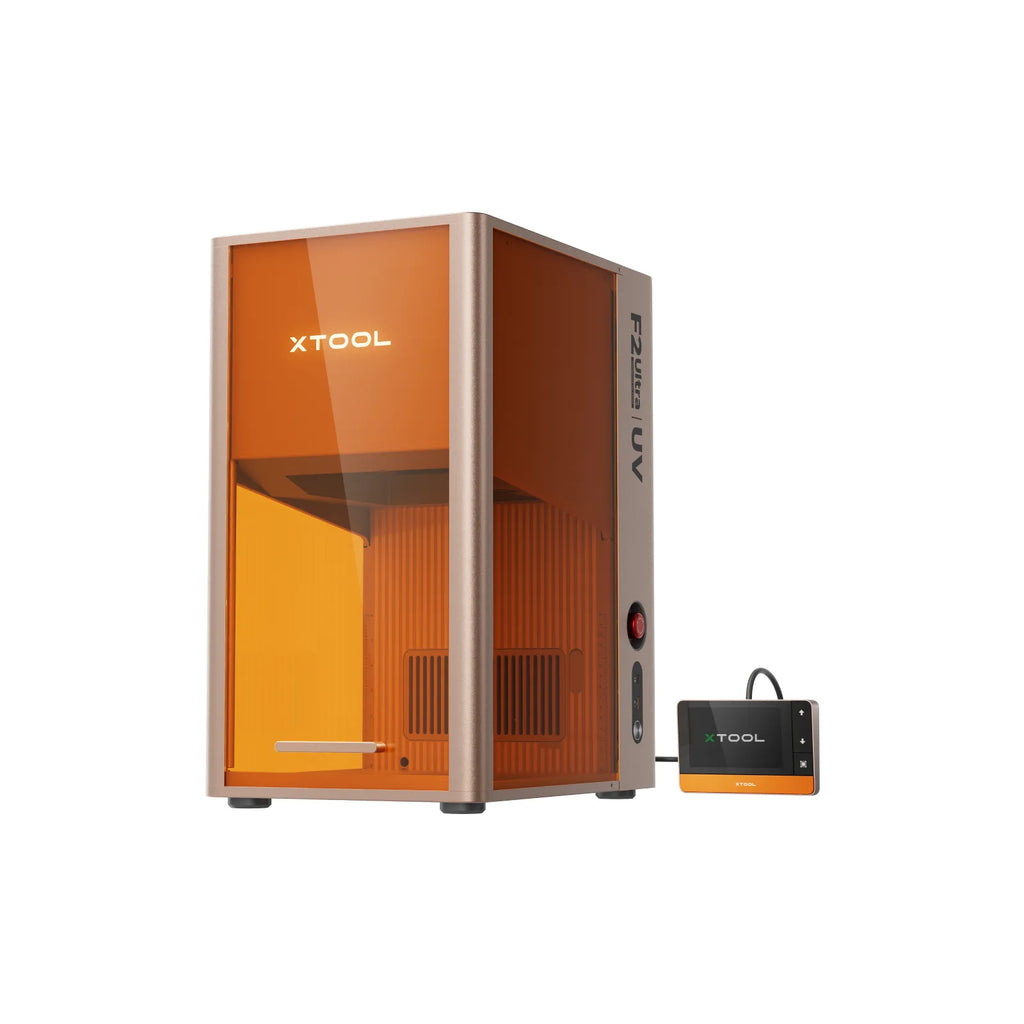

xTool F2 Ultra UV Laser Engraver
Next-Level Precision for Glass and Beyond.
- Master of Glass: Excels in 3D inner engraving, embossing, cutting, and fine engraving.
- Unmatched Material Compatibility: Unlock more materials, even those that others can't.
- Micron-Level Precision: Brings every detail to life with stunning clarity.
- Burn-Free Edges: With cold processing, no prep or polishing—perfection in one step.
- User-Friendly: Dual 48MP cameras, one-click 2D to 3D, 15,000 mm/s speed.
The xTool F2 Ultra UV Laser Engraver is a high-precision 5W UV laser machine designed for professional glass engraving, crystal customization, acrylic processing, and detailed marking across a wide range of materials. Its 355 nm UV laser delivers precise, low-heat “cold processing” for clean, detailed results while minimizing the risk of cracking, melting, or heat damage.
With engraving speeds up to 15,000 mm/s, a 0.02 × 0.02 mm laser spot, and advanced 48MP dual-camera positioning, the F2 Ultra UV combines precision with production-level efficiency. Its LiDAR ranging system, autofocus, and camera positioning simplify setup and help maintain consistent results across repeated jobs.
The F2 Ultra UV supports 3D inner engraving, surface engraving, embossing, and laser cutting, making it especially well suited for customized glassware, crystal awards, acrylic products, promotional items, signage, jewelry, and other high-value personalized products. Its working area supports surface engraving up to 200 × 200 mm, expandable to 200 × 500 mm with the conveyor, while the dedicated inner engraving area measures 70 × 70 mm.
Compatible with xTool Studio on Windows and macOS, the F2 Ultra UV accepts popular 2D and 3D file formats and includes AI-powered design capabilities through AImake. The machine arrives pre-assembled and features USB, Wi-Fi, and IP connectivity for a streamlined professional workflow.
Whether you're adding personalized glass and crystal products to an existing business or bringing high-end laser customization in-house, the xTool F2 Ultra UV provides the speed, precision, automation, and material versatility needed for professional production.
xTool F2 Ultra UV Specifications
| Processing Capacity | |
| Laser Type | 5W 355 nm UV Laser |
| Processing Mode | Laser Engraving Laser Cutting |
| Supported Materials |
Laser Engravable: Glass, Crystal, Acrylic, Wood, Metal, Leather, Plastic, Rubber, Silicone, Ceramic and more Laser Cuttable: Glass, Plastics (PE, PP, EVA, PET, etc.), Fabric, Leather, Acrylic (Not Fully Transparent), Paper, Wood, and More |
| Working Area |
Inner Engraving: 2.8" × 2.8" (70 mm × 70 mm) Surface Engraving: 7.9" × 7.9" (200 mm × 200 mm) Surface Engraving with Conveyor: 7.9" × 19.7" (200 mm × 500 mm) |
| Max. Working Speed | 590.55 ips (15,000 mm/s) |
| Max. Laser Cutting Capacity (Basswood) | 0.59" (15 mm) in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 0.47" (12 mm) in Multiple Passes |
| Max. Processing Height | 5.9" (150 mm) |
| Max. Rotary Engraving Diameter | 5.9" (150 mm) |
| Smart Software | |
| Supported Software | xTool Studio |
| Operating System | Windows/macOS |
| Connection Method | USB/Wi-Fi/IP |
| Supported Files |
2D: SVG, DXF, JPG, JPEG, GIF, PNG, BMP, WEBP 3D: STL, OBJ, AMF, 3MF, GLB, PLY |
| AImake Compatibility | Yes |
| Easy Operation | |
| Pre-assembled | Yes |
| Built-in Camera | 48 MP Dual Cameras |
| Positioning Method | Camera Positioning |
| Focus Mode | Autofocus |
| Ranging System | LiDAR Ranging System |
| Preview Method | Smart Camera Preview High-speed Light Live Preview |
| Accuracy & Precision | |
| Laser Spot Size | 0.02 × 0.02 mm |
| Positioning Accuracy | 0.0079" (0.2 mm), Camera |
| Ranging Accuracy | 0.0079" (0.2 mm), Camera |
| Image Resolution | 48 MP |
| Motion Resolution | 0.00005" (0.00133 mm) (Inner Engraving) |
| Vector Fitting Resolution | 0.00004" (0.001 mm) |
| General | |
| Safety Certification | Class 4 Laser Safety |
| Machine Dimensions | 11.6" × 16.9" × 20.5" (294 mm × 429 mm × 520 mm) |
| Machine Weight | 49.6 lb (22.5 kg) |
| Max. Machine Input Power | 348W |
| Power Adapter Input Voltage | 110V - 240V, AC 50/60 Hz |
| Storage Temperature Range | -10 to 60°C (14 to 140°F) |
| Operating Temperature Range | 10 to 30°C (50 to 86°F) |
| Storage Humidity | 10 - 60% RH |
What's in the Box
FAQ
Why is F2 Ultra UV the Best Choice for Glass Customization?
F2 Ultra UV delivers an all-in-one, commercial-grade solution for high-speed, premium glass customization.
- Premium results that boost product value: Smooth, uniform, crack-free finishes — even on thin glass — help you create high-end products with higher margins.
- High-efficiency production for scalable business: No pre-treatment or cleaning needed. Engraving speeds up to 15,000 mm/s, with batch and rotary support for more SKUs.
- More profit and flexibility than outsourcing: Bring production in-house for faster sampling, quicker turnaround, and greater control over trends and costs.
- Complete glass processing in one machine: Supports 3D inner engraving, fine surface engraving, embossing, and precision cutting.
Why Is It Only 5W — Is That Enough?
Yes — 5W is the golden power level for desktop UV laser systems.
With UV lasers, performance is not driven by wattage alone. UV uses short wavelengths and high-energy photons to break molecular bonds with minimal heat. This “cold processing” delivers far higher energy density and precision than traditional heat-based lasers.
F2 Ultra UV’s 5W fully covers professional needs:
- High-speed efficiency: Up to 15,000 mm/s, with 3D inner engraving typically using only around 60% power output, leaving extra capacity.
- Maximum desktop precision: Higher wattage does not significantly improve fine details.
- Widest material compatibility: Excellent for glass, plastics, acrylic, and more, with practical cutting support.
- Best long-term value: Premium optics and strict quality control ensure reliable commercial performance.
What Makes F2 Ultra UV Better Than Other UV Lasers?
Compared to other UV laser systems, F2 Ultra UV leads in ease of use, automation, speed, scalability, and inner engraving quality:
- Effortless 3D inner engraving: One-click 3D model generation from images or text, with smart presets and Atomm’s rich project library to guide every step.
- Dual 48MP camera automation: Autofocus and 0.2mm positioning accuracy for consistent batch production.
- Fastest productivity: Up to 15,000 mm/s, with inner engraving algorithms up to 180% faster than standard systems.
- Greater flexibility: Dual field lenses, the largest working area, and conveyor support for more applications.
- Finer, more uniform results: Exclusive stabilization and power compensation ensure clean, even engraving across large areas.
