UltiMaker Bowden Pack - Merger To Decoupler - L528 X 2 (F Series)

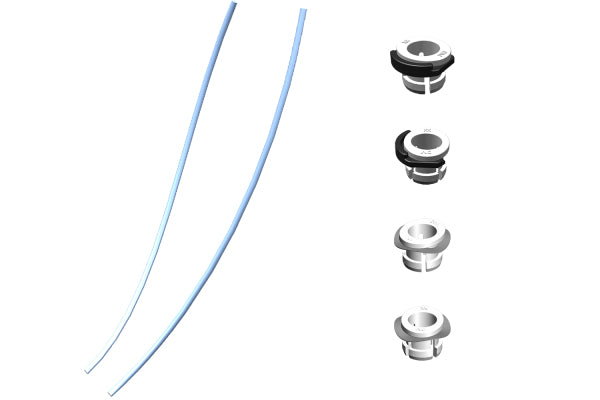

This pack contains two Bowden tubes with length 528 mm and fasteners.

These Bowden tubes run between the Factor 4 merger and the decouplers. Also included are four tube coupling collets, two wave washers (used to secure the tubes on the mergers), and two black clamp clips (used to secure the tubes in the decouplers).

The Bowden tubes are consumable items and excluded from warranty. Over time, materials may slightly scratch the inside of the tubes, or the ends become damaged by the metal grips in the collets. These tubes are slightly less prone to wear than the print head tubes, but should be checked in case of material loading issues etc (excessive friction). Replace the tubes if signs of wear are visible.

Note: All Bowden tubes in UltiMaker 3D printers have a specific length. These tubes are not interchangeable with other printers, nor should they be used in other parts of the Factor 4 extrusion train.

Machine Compatibility: Factor 4 Series

UltiMaker Product Number: 80-191928
