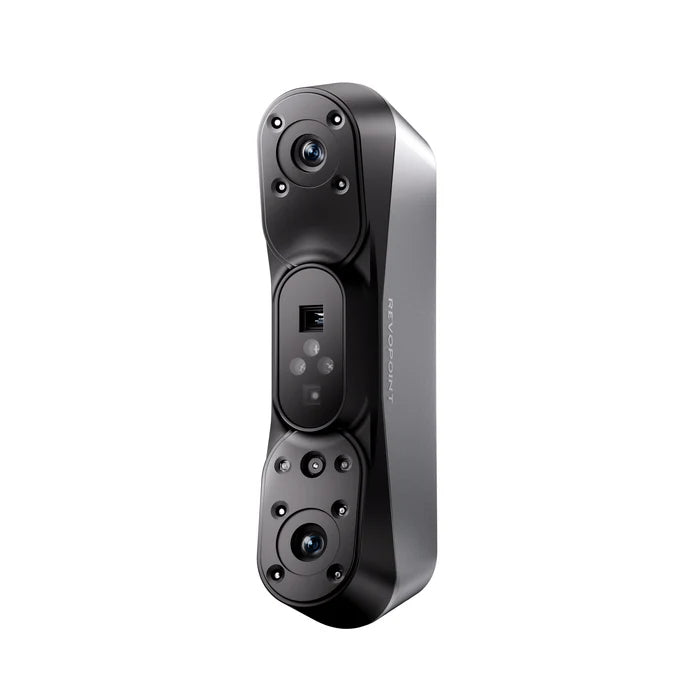

Revopoint POP 4 3D Scanner
Revopoint POP 4
The World's First AI-Powered Wireless Hybrid 3D Scanner
Scan everything, everywhere. The Revopoint POP 4 is a revolutionary 5-in-1 versatile 3D scanner that combines high-precision Blue Laser technology with versatile Infrared light. Powered by real-time AI segmentation and patented 3D Gaussian Splatting, it delivers metrology-grade results for 3D printing, CAD, and photorealistic modeling in any environment.
5 Modes. Total Coverage.
The POP 4 adapts to any scanning challenge. Whether you're capturing intricate mechanical parts or large outdoor statues, its hybrid light source ensures perfect data every time.
- ✓ 30 Cross-laser Lines: Ultra-fast capture of dark or shiny surfaces at 105 fps.
- ✓ Single Laser Line: Engineered for deep holes, grooves, and complex crevices.
- ✓ Full-Field HD Mode: Marker-free infrared scanning at up to 5,000,000 points/s.
- ✓ VCSEL Rapid Scanning: The master of outdoor scanning, even in direct sunlight.
- ✓ Hybrid HD Mode: Combines the best of all modes for high-quality surface modeling.
Metrology-Grade Accuracy & AI Power
Don't let the portability fool you. The POP 4 delivers a volumetric accuracy of 0.03 mm + 0.05 mm × L (m), ensuring your scans are ready for industrial applications.
Real-time AI Segmentation: Powered by innovative AI technology, the POP 4 automatically identifies and segments objects during scanning, significantly streamlining your post-processing workflow.
Exceptional Outdoor Performance
Scan anywhere, even in direct sunlight up to 100,000 lux. The high-intensity VCSEL projector and specialized Outdoor Blue Filter (Premium Edition) make the POP 4 the most capable outdoor scanner in its class.
Beyond Mesh: Capture Reality
3D Gaussian Splatting
Convert scan data into photorealistic 1:1 Gaussian models with patented physically-scaled technology.
Near-to-Far Coverage
Versatile working distance from 200mm for details to 800mm for rapid large-area capture.
No Spray Needed
Effortlessly capture flat, shiny, or dark surfaces without messy scanning sprays using Blue Laser mode.
Platform Compatibility & Functionality
| Feature | Windows 10/11 | macOS | iOS | Android |
|---|---|---|---|---|
| Revo Scan 6 | Full | Full | App | App |
| Multi-line Laser Mode | Yes | Yes | No* | No* |
| Full-Field HD Mode | Yes | Yes | Yes | Yes |
| AI Segmentation | Yes | Yes | No | No |
| 3DGS Export | Yes | Yes | No | No |
*Note: Multi-line scanning mode requires connection to a PC via WiFi for screen casting to mobile devices.
Complete Technical Specifications
| Specification | POP 4 Detailed Value |
|---|---|
| Technology | Blue Multi-line Laser, Near-Infrared Full-field Structured Light, and VCSEL Structured Light |
| Single-frame Accuracy | Line Laser: 0.03 mm | Full-field: 0.08 mm | VCSEL: 0.10-0.20 mm |
| Volumetric Accuracy | 0.03 mm + 0.05 mm × L (m) [Using Multi-line Laser Mode] |
| Fused Point Distance | Up to 0.05 mm |
| Working Distance | 200-400mm (Laser) | 250-500mm (HD) | 300-800mm (VCSEL) |
| Single Capture Area | 131x134mm (Near) | 312x269mm (Furthest Laser/HD) | 505x538mm (VCSEL) |
| Scanning Speed (up to) | Laser: 105 fps (GPU) / 60 fps (CPU) | Full-field: 20 fps | VCSEL: 30 fps |
| Point Return Rate | Multi-line Laser: 2,000,000 Pts/s | Full-field SL: 5,000,000 Pts/s |
| 3D Light Source | 30 Cross Laser Lines | 1 Single Line (Deep-Hole) | NIR Full-field SL | NIR VCSEL SL |
| RGB Camera | 1.3 Megapixels with Color Scanning Support |
| Outdoor Scanning | Yes (Laser ≤ 50k lux, VCSEL ≤ 100k lux; 100k lux with Laser + Outdoor Filter) |
| Output Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat |
| Weight & Dimensions | 286 g | 160 × 30 × 72 mm |
| Power Bank Capacity | 5500 mAh (Approx. 4 hours battery life) |
System Requirements
Windows
Min: Intel i7 13th Gen / Ryzen 7 5800 | 16GB RAM | RTX 3060 (8GB)
Rec: Intel i9 12th Gen+ | 32GB RAM | RTX 4060 (8GB)+
macOS
Min: M1 Pro/Max/Ultra | 16GB RAM
Rec: M3 Pro/Max/Ultra | 24GB RAM
Mobile
Android: Snapdragon 8 Gen1 / Dimensity 9000+ | 12GB RAM | Android 11+
iOS: iPhone X or later | iOS 14.0+ | 4GB+ RAM (iPad 10th Gen+)
Frequently Asked Questions
Can POP 4 be used outdoors?
Yes, the POP 4 is highly capable outdoors. Its high-intensity VCSEL projector allows for scanning in up to 100,000 lux, and the Premium Edition includes an Outdoor Blue Filter for laser scanning in direct sunlight.
Does the POP 4 have a built-in battery?
No, but the Premium Edition includes a 5500 mAh Battery Grip that provides approximately 4 hours of continuous scanning power for true wireless freedom.
How should I scan transparent or highly reflective objects?
While the Blue Laser mode handles many shiny surfaces, we recommend using a specialized scanning spray for transparent or mirror-like objects to ensure the best possible data capture.
Do I need to use markers during scans?
For feature-rich objects, markers are not required as the POP 4 uses Feature Tracking. However, for smooth, repetitive, or large surfaces, using the included markers will significantly improve tracking reliability.
Can I use the multi-line laser mode on a phone?
The multi-line laser mode requires the processing power of a PC (Windows or macOS). However, you can use Revo Mirror to stream the scan preview from your PC to your smartphone wirelessly.
Laser Safety: Class 1 Laser Safety certified. Safe for body scanning, but avoid direct eye exposure. Not recommended for face scanning.
Unified Ecosystem: The POP 4 is fully compatible with Revo Design for scan-to-CAD and Revo Measure for industrial inspection.
