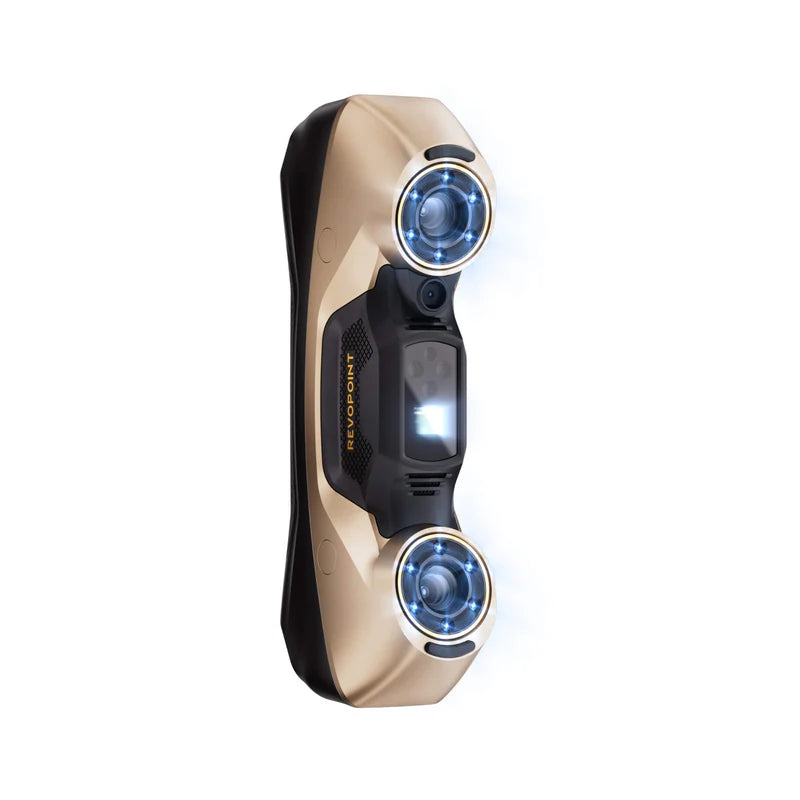

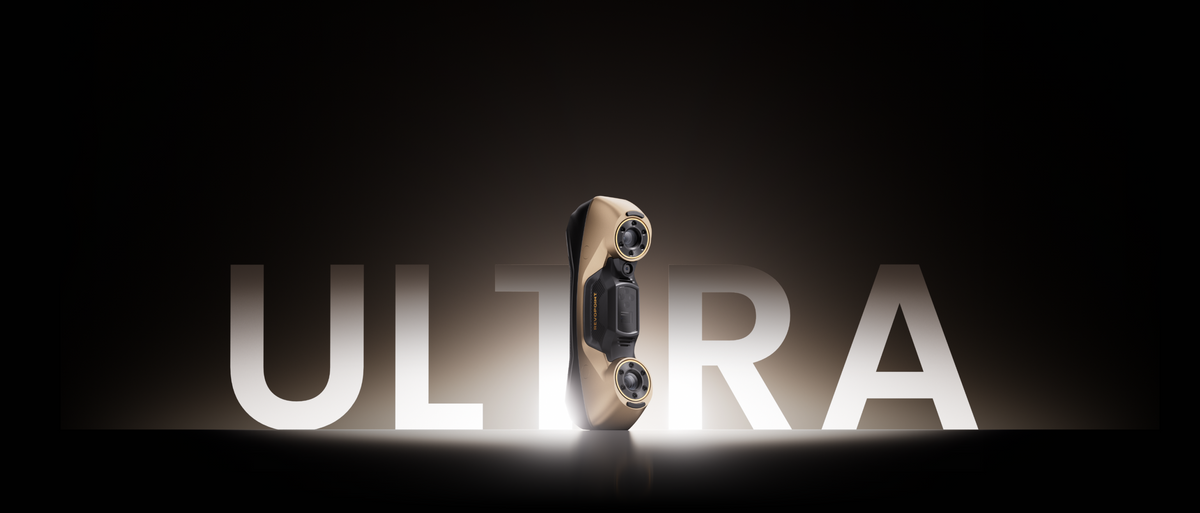

Revopoint MetroY Ultra 3D Scanner
Revopoint MetroY Ultra
Engineered for Metrology-Grade Measurement
The Revopoint MetroY Ultra is a professional-grade 3D metrology solution designed for high-precision inspection, reverse engineering, and design validation. Combining Multi-line Blue Laser technology with Full-field Structured Light, it delivers a volumetric accuracy of 0.015 mm + 0.04 mm × L (m), making it the ultimate tool for capturing small to medium-sized industrial components with uncompromising detail.
5 Blue Light Scanning Modes
From complex industrial geometries to hard-to-scan surfaces, the MetroY Ultra’s 5 specialized modes deliver reliable data without the need for scanning spray or complex workarounds.
- ✓ 34 Cross-lines: Ultra-rapid capture at 3,000,000 points/s.
- ✓ 15 Parallel Lines: High-detail capture for fine edges and complex surfaces.
- ✓ Single Line: Specialized for deep holes, crevices, and grills.
- ✓ Structured Light: Marker-free scanning at up to 7,000,000 points/s.
- ✓ Auto Turntable: One-click automated modeling for repeatable results.

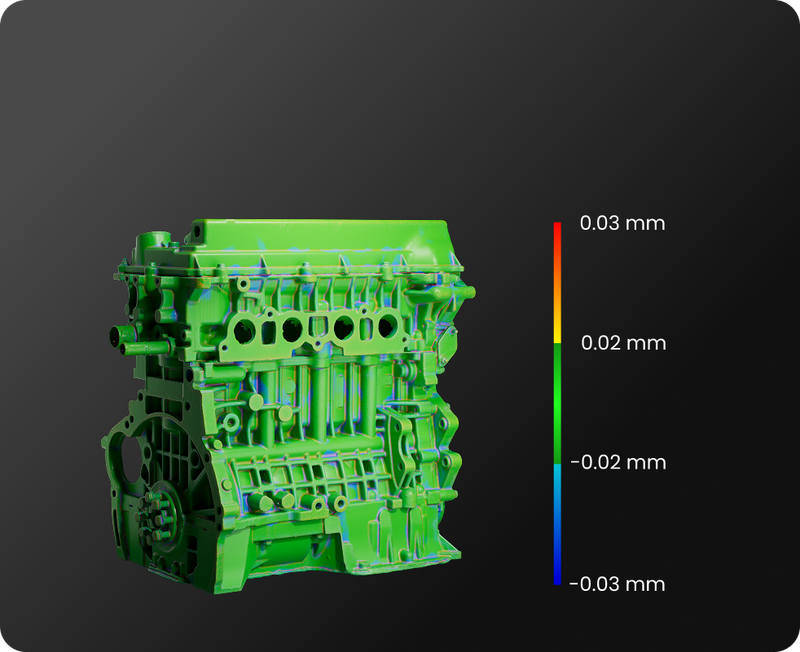

Verified Metrology Accuracy
The MetroY Ultra provides verifiable results you can trust. With a volumetric accuracy of 0.015 mm + 0.04 mm × L (m), it meets the rigorous standards required for industrial quality control.
On-site Real-time Verification: Pair with the CMM-certified carbon fiber ball plate and Revo Metro software for instant accuracy confirmation in your actual working environment.

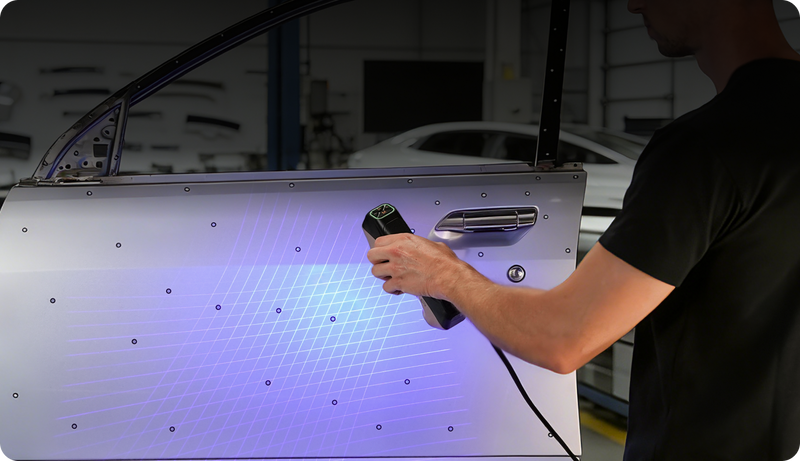

Ultra-Rapid Data Capture
Maximize your efficiency with scanning speeds up to 90 fps (when using NVIDIA GPU acceleration). The MetroY Ultra captures up to 3 million points per second in laser mode and a staggering 7 million points per second in structured light mode.
Versatility for Every Environment

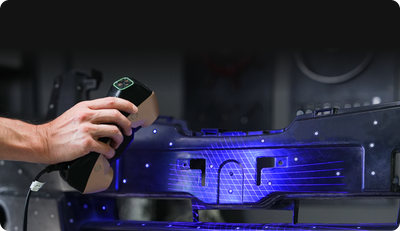

No Spray Needed
Advanced blue laser technology effortlessly captures black, shiny, or metallic surfaces without messy scanning sprays.

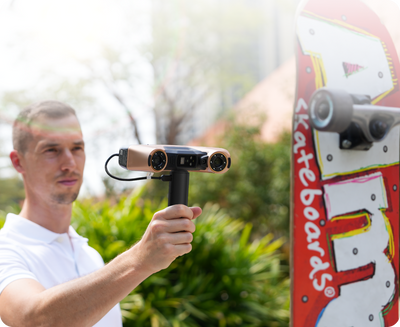

Outdoor Performance
Engineered for the field, the MetroY Ultra operates reliably in lighting environments up to 100,000 lux.
Real Color Results
Create photorealistic 3D models with the built-in 2MP RGB camera for detailed texture mapping.

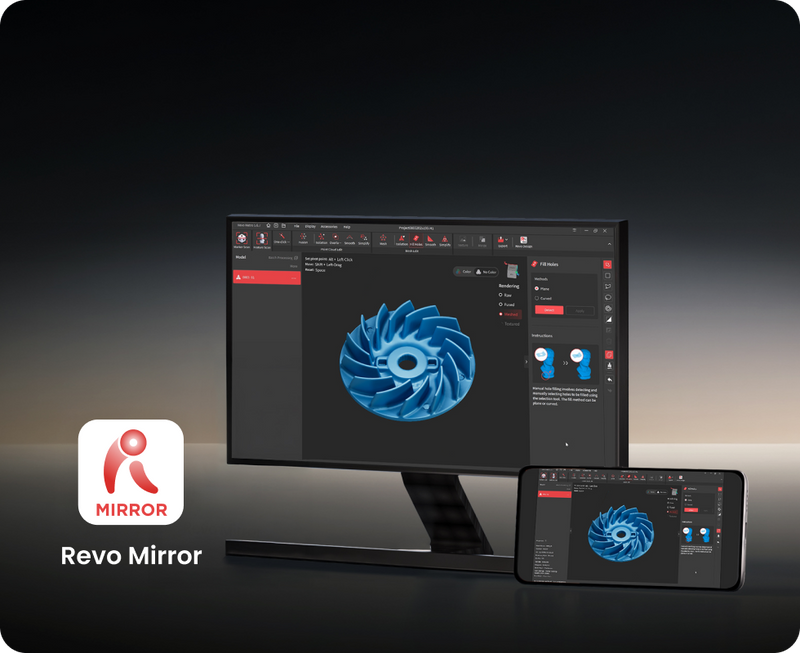

Wireless Freedom & Smart Monitoring
Move freely around your workpiece with Wi-Fi 6 real-time streaming. The MetroY Ultra also features real-time screen mirroring to mobile devices, allowing you to monitor your scan progress from any angle.
Intelligent Temperature Control: Active fan cooling and dual internal sensors ensure the scanner reaches peak thermal stability in just 2 minutes, maintaining accuracy throughout long sessions.
Technical Specifications
| Specification | MetroY Ultra Value |
|---|---|
| Technology | Multi-line Laser & Full-field Structured Light |
| Single-frame Precision | Up to 0.01 mm |
| Single-frame Accuracy | Up to 0.015 mm |
| Volumetric Accuracy | 0.015 mm + 0.04 mm × L (m) |
| Scanning Speed (Laser) | Up to 3,000,000 Points/s | 90 fps (GPU) |
| Scanning Speed (SL) | Up to 7,000,000 Points/s |
| Light Source | 34 Cross / 15 Parallel / 1 Single / 62 Line SL (Blue) |
| Working Distance | 200 mm ~ 400 mm |
| Field of View (H × V) | 49 × 38° |
| Max Capture Area | 332 × 276 mm @ 400 mm |
| Scan Volume Range | 10 × 10 × 10 mm to 2 × 2 × 2 m |
| Output Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Material | Carbon Fiber Frame | Polycarbonate Housing |
What’s in the Box
- ✓ MetroY Ultra 3D Scanner
- ✓ Professional Tripod
- ✓ Dual-axis Turntable
- ✓ Mobile Kit (4th Gen)
- ✓ Calibration Board
- ✓ Markers (6 mm) × 500
- ✓ USB Type-C to Type-C Cable
- ✓ Power Adapter
- ✓ Heavy-Duty Carrying Case
- ✓ Sample Bust
*CMM Edition adds: Metrology Ball Plate & 1-Year Revo Measure License.
Frequently Asked Questions
What is the recommended scanning size for MetroY Ultra?
The recommended scanning size ranges from 10 × 10 × 10 mm to 2 × 2 × 2 m, effectively covering everything from tiny intricate parts to medium-sized industrial components.
Does the MetroY Ultra have a built-in battery?
No, the scanner requires the supplied power adapter or an optional Battery Grip to power the unit during operation.
Can I scan shiny or black surfaces without spray?
Yes. Thanks to the advanced blue laser technology, the MetroY Ultra can capture dark, shiny, or metallic surfaces directly without the need for scanning spray in most scenarios.
What is the difference between MetroY and MetroY Ultra?
The Ultra model is significantly faster, supporting up to 3,000,000 points/s (vs 1,500,000) and 90 fps (vs 60 fps). It also includes the handheld full-field structured light mode and Automatic Turntable scanning mode which are not available on the base MetroY.
Is the software included for free?
Yes, the scanner includes Revo Metro for free, which is compatible with both Windows and macOS. The specialized metrology software, Revo Measure, is included with the CMM Edition or available separately (Windows only).
Can I scan objects with electronic components?
Sensitive electronic components will not be harmed if kept at least 200 mm away from the laser outlet. Avoid positioning components directly next to the laser outlet where energy density is highest.
Laser Safety: Class 2 Laser Safety certified. Avoid looking directly at the laser at close range. Not recommended for face scanning.
Thermal Optimization: For ultimate accuracy, ensure the system reaches thermal stability (approximately 2 minutes). Built-in active heating and temperature sensors monitor this automatically.
