Dual-axis Turntable by Revopoint

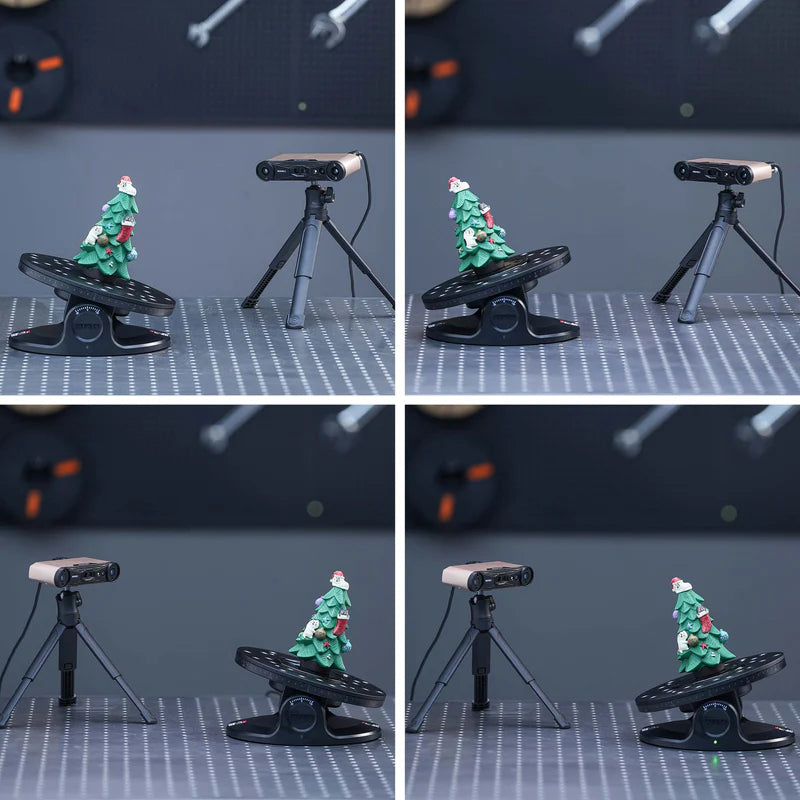

The Dual-axis Turntable offers a 360° clockwise or counterclockwise rotation, ±30° tilt, and adjustable speed, making it easier to acquire accurate cloud points. It eliminates the need for manual adjustments of the object’s position when scanning and enables more of the object to be captured by the scanner’s field of view.
Specifications
| Product Name | Dual-axis Turntable | ||
|---|---|---|---|

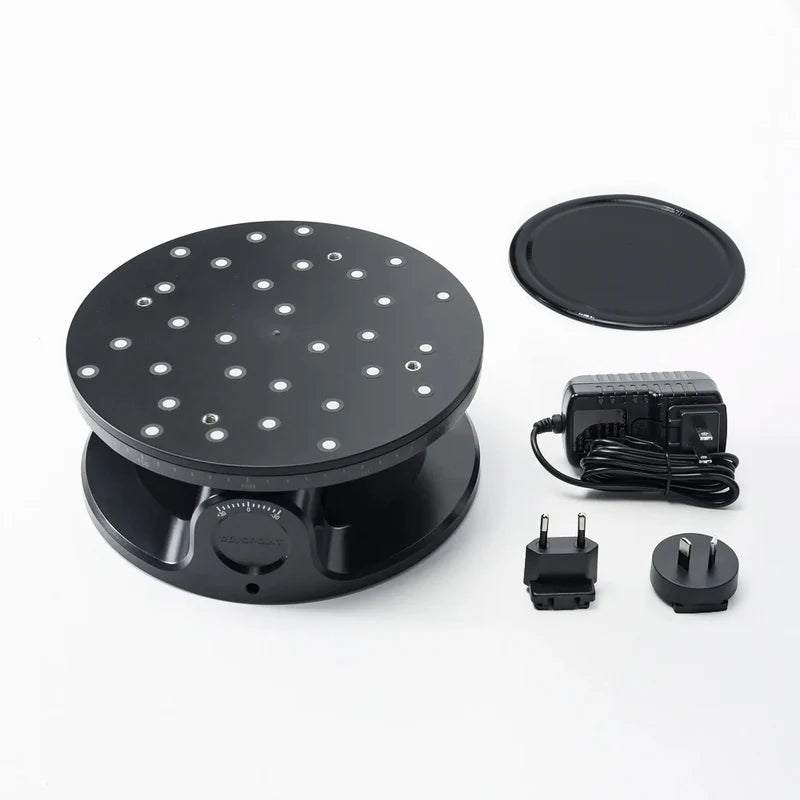

| Parts Included | Multi-region Adapter × 1, Dual-axis Turnable × 1, Power Cable × 1, Reusable Sticky Pad × 1 | ||
| Model | A230-Ⅱ | ||
| Power Output | 12V/2A | ||
| Compatible Devices | POP, POP 2, POP 3, MINI, RANGE, MINI 2, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, POP 3 Plus, MIRACO Plus, INSPIRE 2, MetroX, MetroX Pro, MetroY Pro, MetroY Ultra, POP 4 | ||

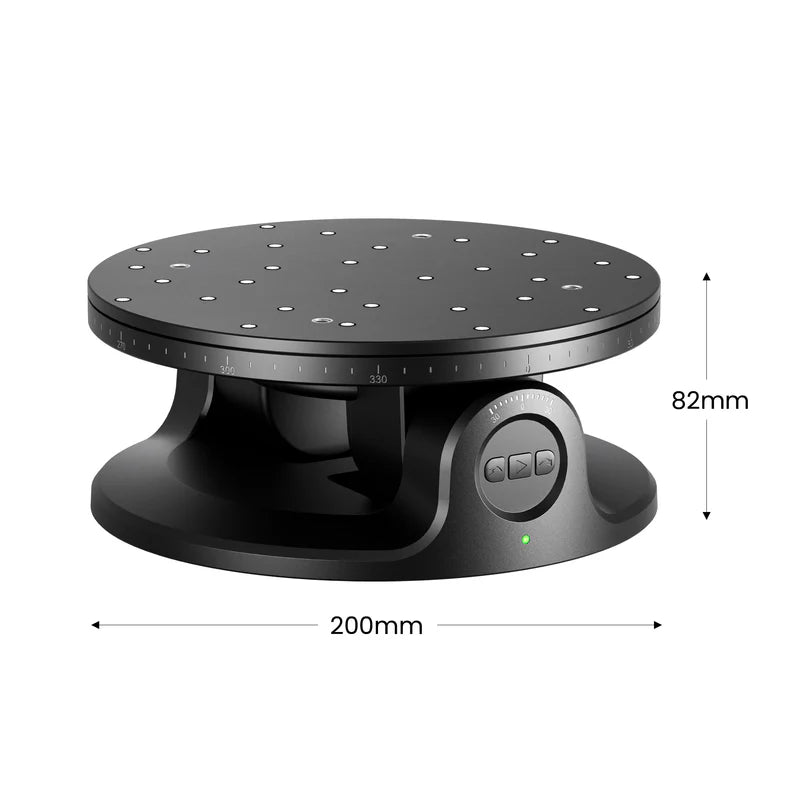

| Dimensions | (D) 200 mm × (H) 82 mm | ||
| Weight | About 771 g (≈ 1.7 lbs) | ||
| Turntable Speed | 18 - 90 Seconds per Rotation | ||
| Max Load | 5 kg (≈ 11 lbs) | ||
| Color | Black | ||
| Rotation Control | Via Buttons / APP (Revo scan/Revo assistant) | ||
| Controls | Direction, Tilt, Speed, and Start / Pause | ||
| Certifications | CE/FCC/ROHS/KC/CCC/UL/NCC/PSE | ||
