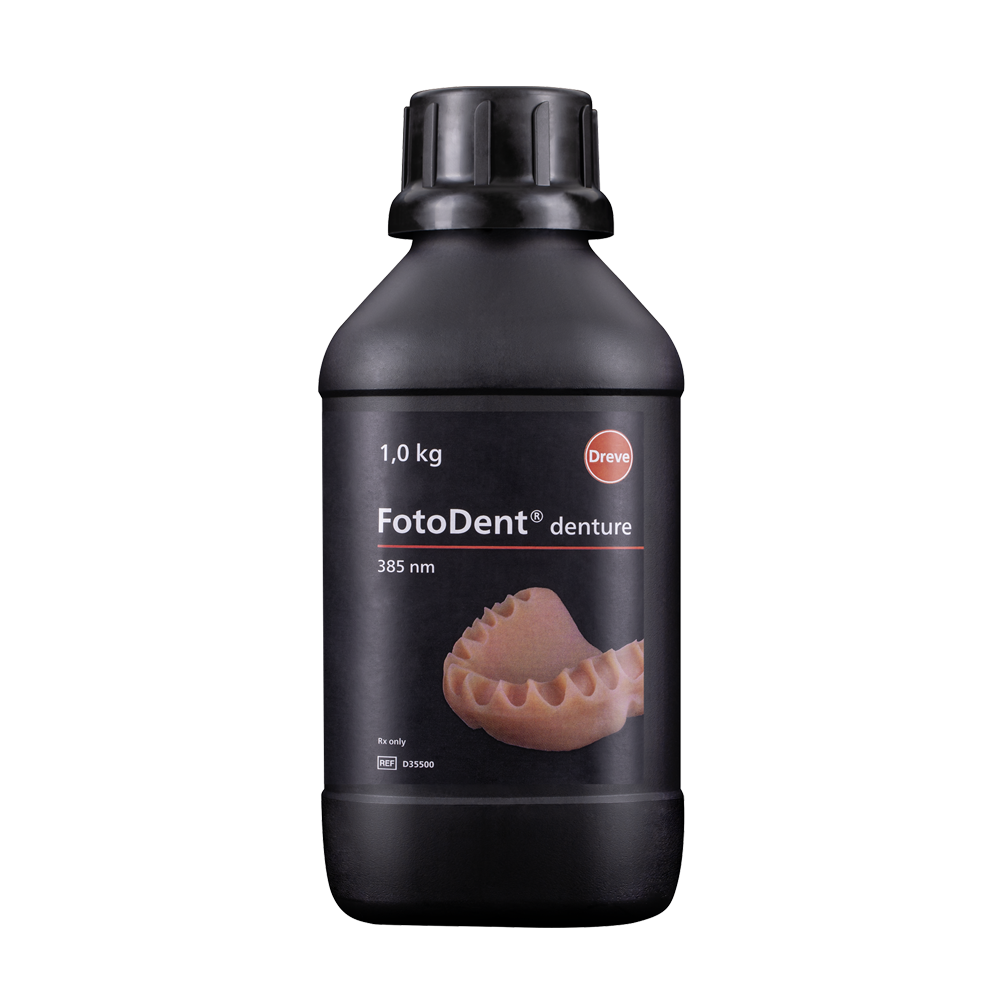

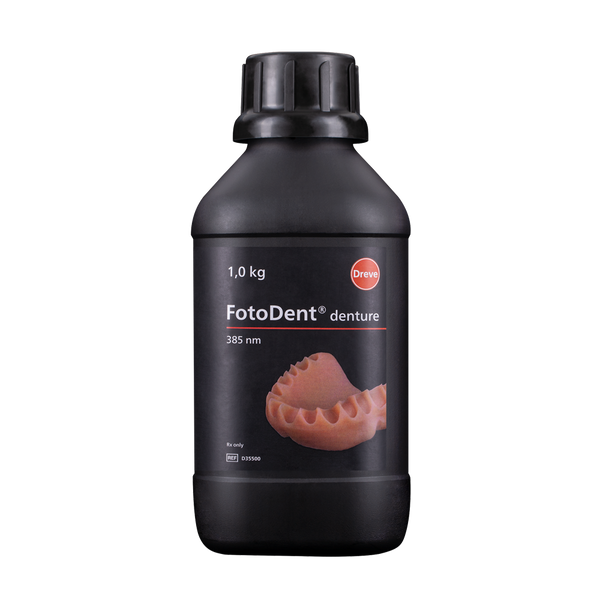

Dreve FotoDent Denture Resin
Craft highly accurate, durable, and aesthetically pleasing denture bases with Dreve FotoDent® Denture resin. This light-curing material offers outstanding dimensional stability, high impact strength, and is MMA-free and color stable. Designed for long-term patient use, it can be easily repaired and relined. Available in Pink Transparent and Pink Opaque to match diverse patient needs.
Key Features & Benefits
- Superior Accuracy & Dimensional Stability: Ensures precise fit and reliable prosthetic performance for optimal patient comfort.
- High Impact Strength: Formulated for exceptional durability, capable of withstanding daily denture function and long-term wear.
- Repairable & Relineable: Facilitates easy repairs and relining, extending the lifespan and utility of the denture.
- MMA-Free & Color Stable: Provides a biocompatible solution with lasting aesthetic integrity, available in Pink Transparent and Pink Opaque.
- Efficient Production: Optimized for 3D printing, offering consistent print speeds and material consumption for cost-effective manufacturing.
Application Notes
Dreve FotoDent® Denture resin is specifically developed for the additive manufacturing of prosthetic denture bases. For optimal results, always refer to the detailed instructions and technical data sheets.
Pro Tip: To maintain strict biocompatibility and color stability, wash the printed denture base in an ultrasonic bath using a fresh secondary alcohol swap. Always dry thoroughly with compressed air before final post-curing to prevent surface cloudiness.
Technical Specs
| SKU | D35500 (Pink Transparent), D35501 (Pink Opaque) |
| Final Hardness | 80 Shore D |
| Flexural Modulus | > 2,000 MPa |
| Flexural Strength | > 80 MPa |
| Viscosity | 0.4-0.6 Pa s |
| Size | 1 kg bottle |
Print Time & Material Consumption
(Based on Sonic XL 4K)
| Metric | Pink Transparent | Pink Opaque |
|---|---|---|
| Print speed (mm/h) | 19.2 | 19.1 |
| Print time/platform (min) | 173 | 173 |
| Print time/part (min) | 34.4 | 34.6 |
| Parts/platform (vert) | 5 | 5 |
| Material consumption (g/part) | 15 | 15 |
| Absolute height (mm) | 55 | 55 |
| Cost/part ($/part) | 6.67 | 6.67 |
