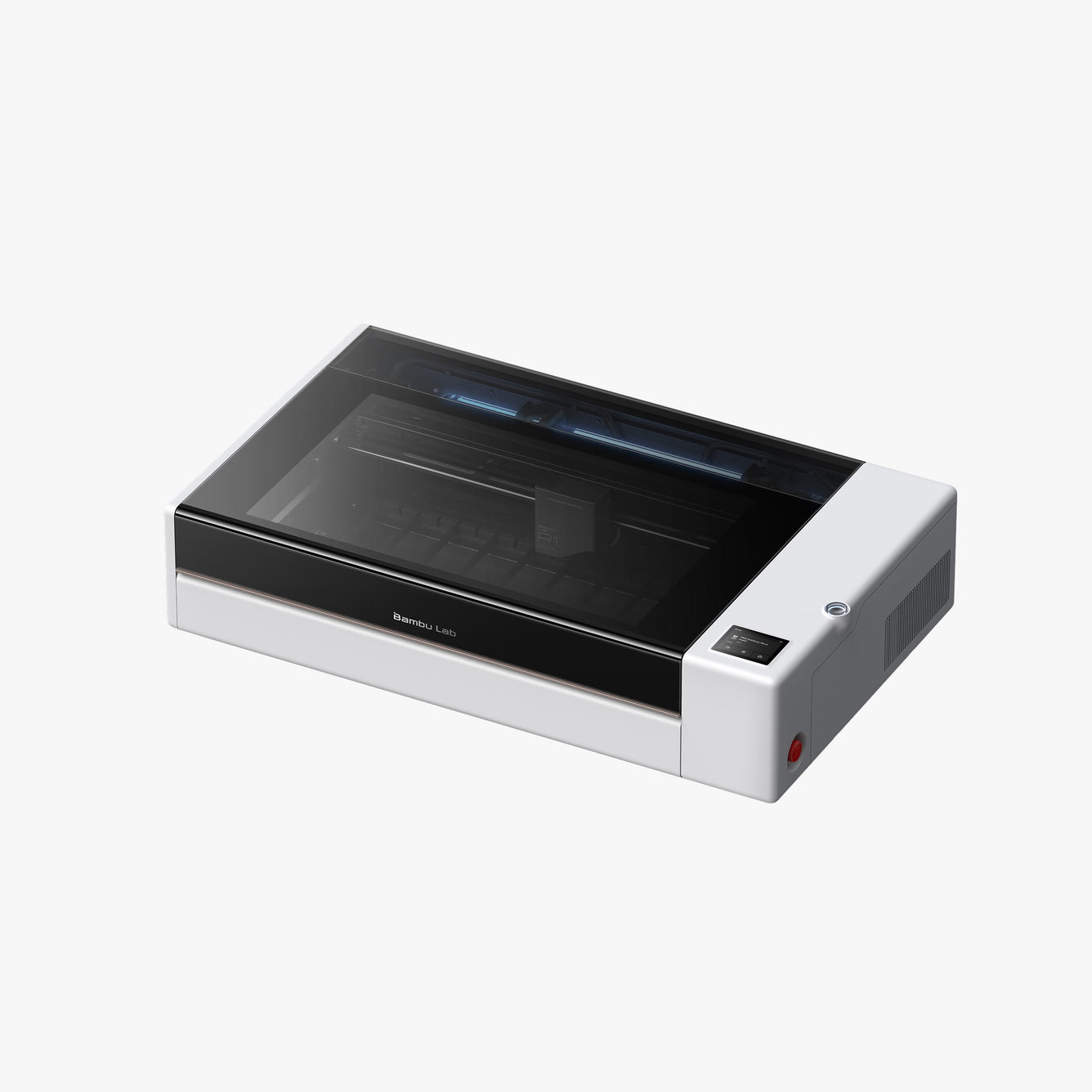

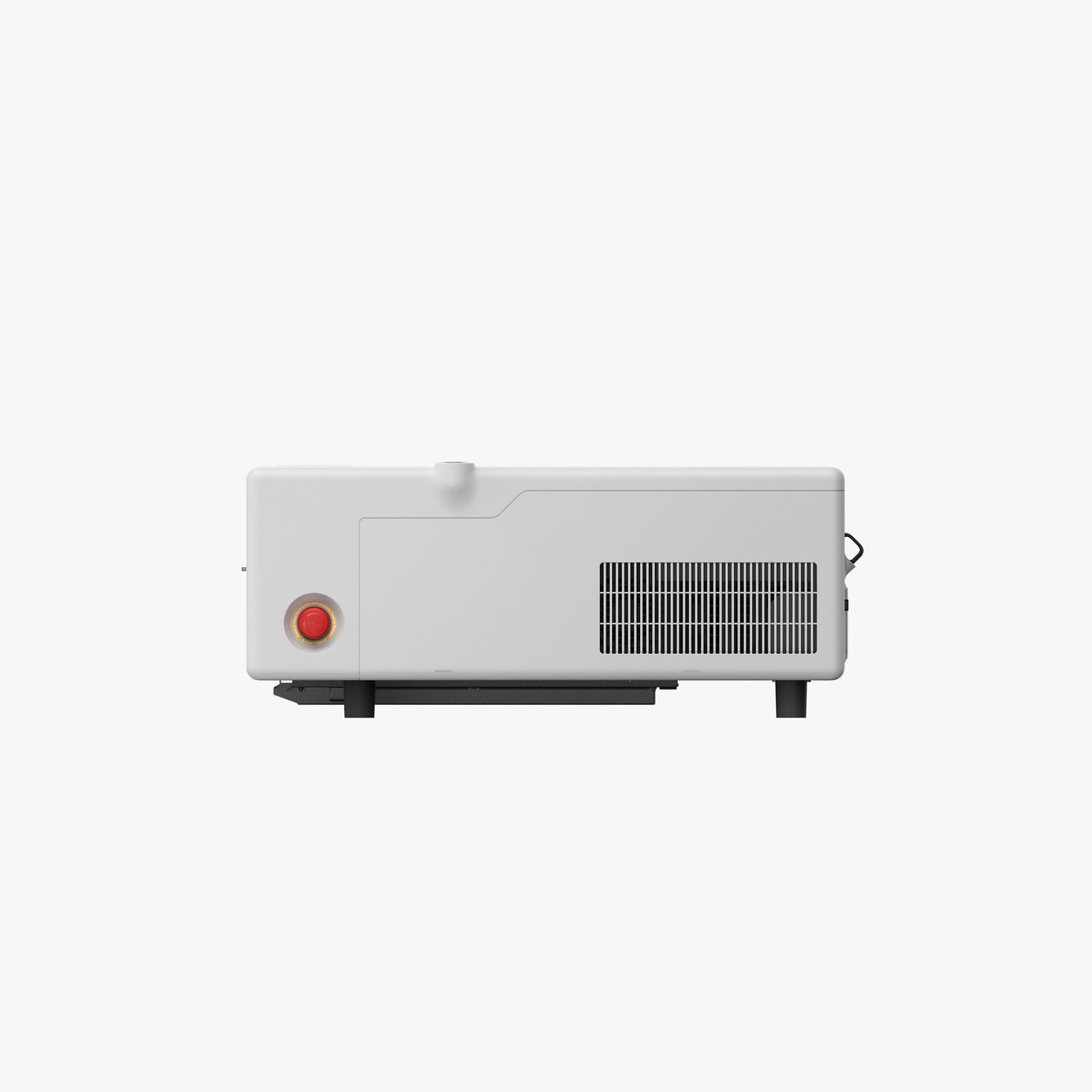

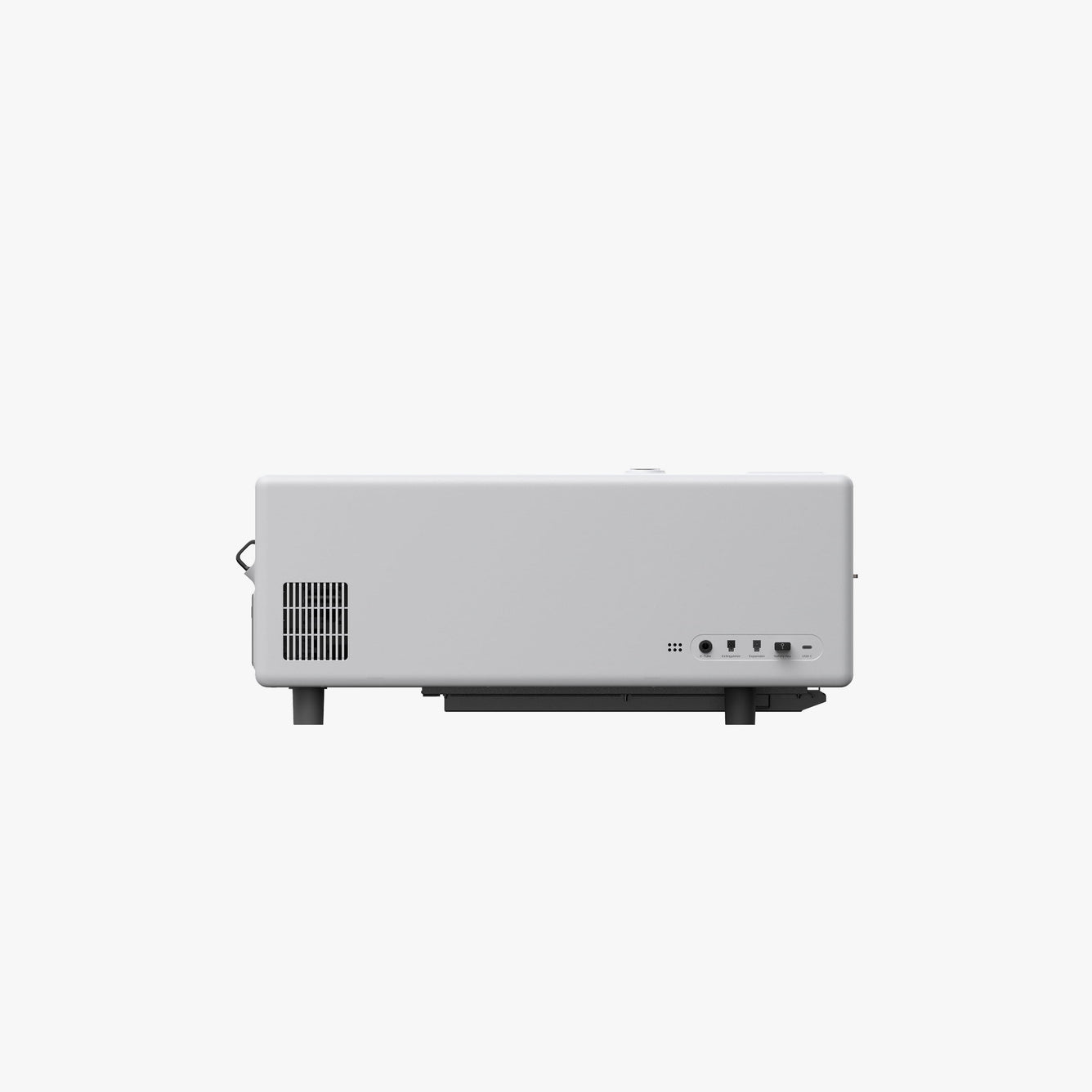

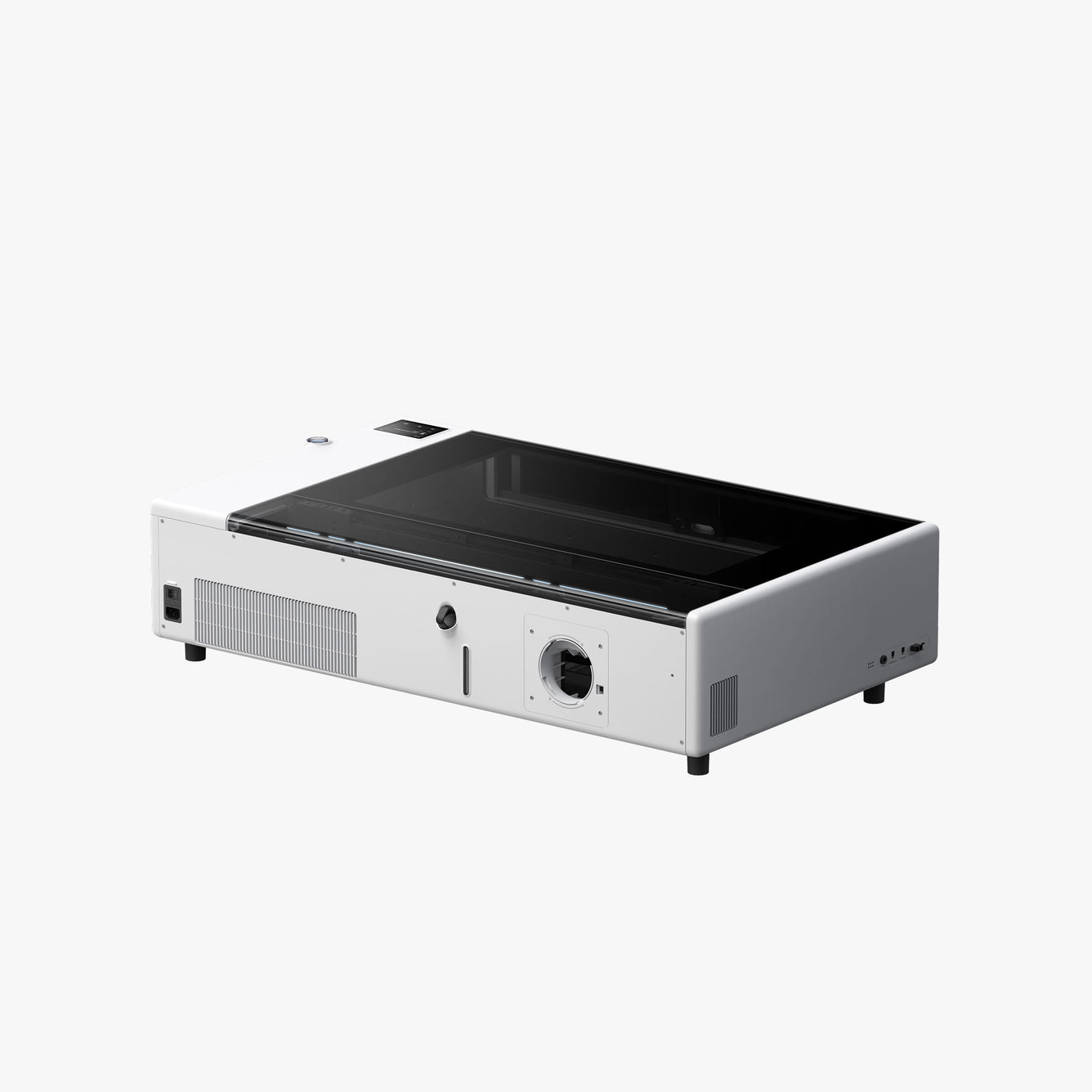

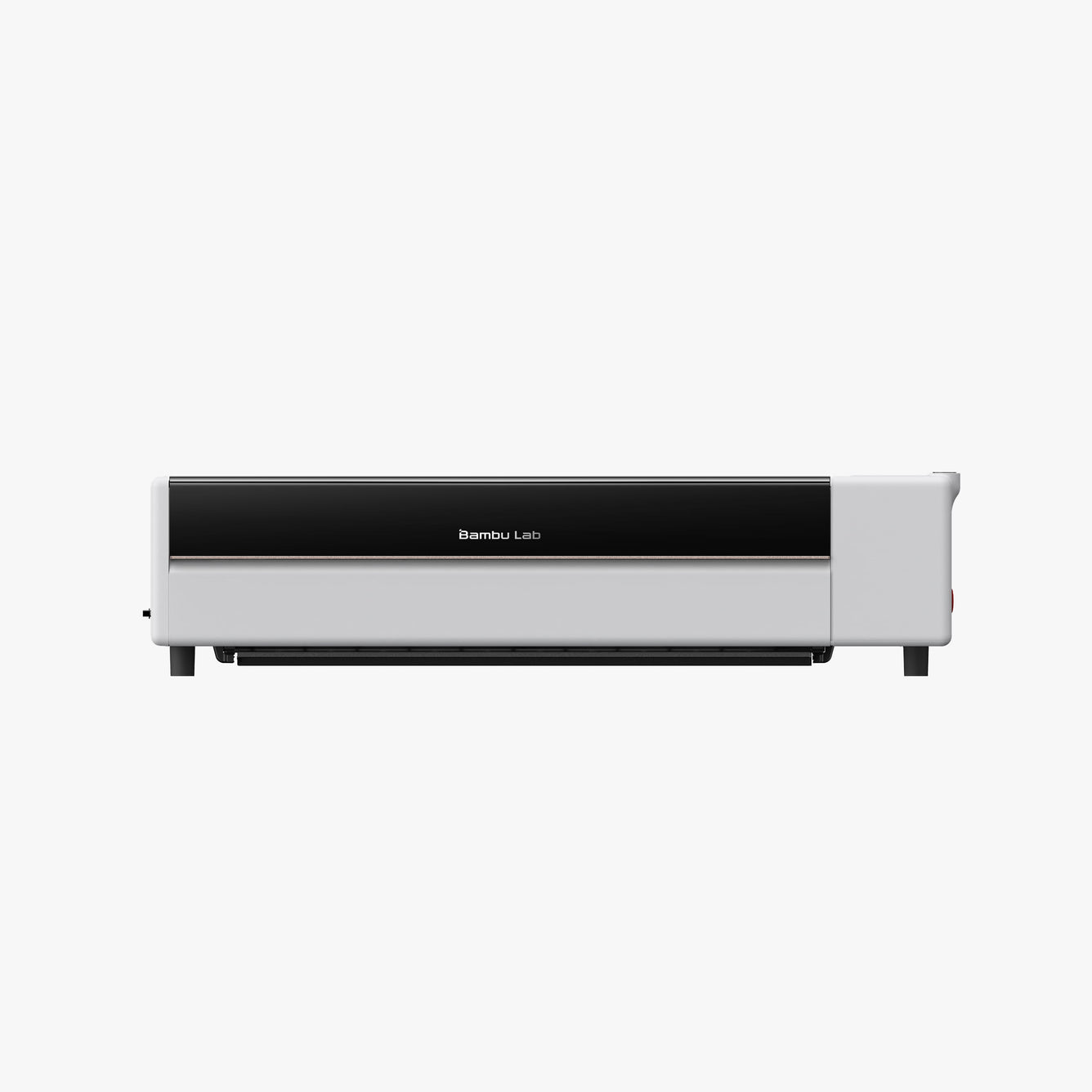

Bambu Lab R1
Big job. Light work.
A 55W CO2 laser cutter and engraver that combines deep cutting power, high-speed motion control, automatic alignment, and intelligent surface tracking to make ambitious projects faster, finer, and easier.
The desktop crafting revolution just got a massive, high-powered upgrade. If you thought Bambu Lab only dominated the 3D printing world, think again. The Bambu Lab R1 55W CO2 Laser Cutter and Engraver has officially arrived is here to turn your wildest design concepts into physical reality. Blending industrial-grade muscle with the smart, user-friendly motion control technology that made their 3D printers legendary, this desktop powerhouse makes heavy-duty laser crafting feel like absolute light work.
At the heart of the Bambu Lab R1 is a beastly 55W CO2 laser that packs a serious punch. Forget about the agonizingly slow, repetitive passes required by weaker diode lasers. The R1 can cleanly slice through materials like 18 mm walnut plywood and up to 20 mm thick clear acrylic in a single, effortless pass. Whether you are working with wood, leather, glass, fabric, slate, or anodized aluminum, the R1 brings out the absolute best texture and detail in every medium. It is a true multi-material workhorse engineered to scale up your projects from tabletop decor right up to full-sized custom furniture.
Space is always a premium in a workshop, which is why the R1 is such a game-changer. Bambu Lab engineered this machine to deliver a generous 600 × 300 mm standard work area, yet it boasts a footprint that is roughly one-third smaller than typical consumer CO2 lasers with equivalent capacity. But don't let the compact desktop design fool you—this machine loves a challenge. Need to go bigger? When paired with the optional Automatic Conveyor Feeder, the R1 can automatically feed and process raw stock up to 3 meters (3000 mm) long. From long-board signage to custom shelving panels, your creative boundaries just completely melted away.
Say goodbye to the absolute worst part of laser ownership: manual mirror alignment. Traditional CO2 lasers require tedious trial-and-error, thermal paper, and test shots just to calibrate the optical path. The R1 completely solves this headache with its Auto Laser Alignment system. Simply mount the optical sensor on the toolhead, and the machine measures, detects, and automatically corrects the beam path in about a single minute, hands-free. Furthermore, you don't even need a computer attached to get things moving. The built-in, responsive on-board touchscreen lets you monitor your jobs, check system health, and watch calibration happen in real time.
Precision is where the R1 truly flexing its tech DNA. Equipped with the innovative TriSense System, the machine utilizes a sophisticated array of cameras, lasers, and XY encoders to deliver a positioning accuracy within a razor-thin 0.2 mm. Its advanced height-sensing technology seamlessly tracks uneven or curved surfaces to keep your engraving perfectly sharp, and it remains flawlessly accurate even on notoriously difficult transparent materials like clear acrylic and glass. Plus, the high-resolution Toolhead Camera can automatically trace drawn outlines, trim printed stickers, or pinpoint tiny objects for ultra-fine detail placement.
Speed usually kills quality, but Bambu Lab’s world-renowned motion control has fixed that paradox. The R1 zips along at blazing engraving speeds up to 1000 mm/s with a mind-boggling 20,000 mm/s² acceleration, crushing standard jobs up to 3 times faster than standard consumer alternatives. To ensure your work stays crisp at these extreme speeds, built-in Vibration Compensation actively cancels out the split-second structural shakes that happen during sharp turns. To cap it all off, the smart machine automatically recognizes official Bambu Lab materials and instantly applies the perfect speed and power parameters. No more running endless test grids or wasting expensive blanks!
Best of all, the Bambu Lab R1 is thoughtfully designed to safely live in everyday creative spaces. In its standard configuration, it operates as a fully enclosed Class 1 laser safety device, meaning the laser radiation is entirely contained. You won't need a dedicated industrial ventilation bunker or funky safety goggles just to watch it work. Safety features like an instant lid-open stop, proactive flame detection sensors, and a dedicated physical emergency stop button give you complete peace of mind. Combined with its specialized Crossflow Ventilation that sweeps smoke evenly out of the chamber, it is clean, safe, and wildly efficient.
Ready to expand your workshop’s capabilities? The R1 ecosystem is fully modular. You can easily adapt your machine with the Riser Base to gain clearance for extra-tall objects, drop in the Rotary Attachment for stunning 360° engravings on glasses, tumblers, and bottles, or hook up the multi-layered E1 Pro Air Purifier to scrub odors and fine particles right at the source. The future of desktop fabrication has arrived, and it's faster, smarter, and more powerful than ever.
55W CO2. Cuts deeper. Cuts more.
Cut and engrave wood, clear acrylic, leather, fabric, glass, slate, and more. With the right focus lens, the R1 cuts up to 18 mm walnut plywood and 20 mm acrylic in a single pass.
A generous 600 × 300 mm work area handles everyday projects, while the optional Conveyor supports material up to 3,000 mm long.
Makes Laser Work Easy
A 55W CO2 laser with Bambu Lab's proven motion control, making laser work faster, finder and easier.
Furniture-scale capability
With the Auto-Feed Conveyor, the R1 can pass material through the machine and process boards up to three metres long. That opens the door to tables, shelving, wall panels, signs, and full-length décor.
Add the Riser Base for extra clearance, or the Rotary Attachment for full 360° engraving on bottles, bowls, cups, and other cylindrical objects.
Thick Cuts With One Pass
The 55W CO2 laser cuts up to 18 mm walnut and 20 mm acrylic in a single pass - Fast, clean and without the extra passes that slow you down.
Bring out the best in every material.
From warm wood and transparent acrylic to glass, leather, fabric, anodized aluminum, and slate, the R1 gives each material room to show its own character.
Wood
Transparent acrylic
Glass
Leather and fabric
Leather
Anodized Aluminum
Slate
What you mark is what you cut.
TriSense System
The TriSense System combines cameras, lasers, and XY encoders to locate your workpiece, read its surface, and keep every line exactly where you place it.
Follows the curve
Height sensing follows rises and falls across curved or uneven surfaces so engraving remains sharp and consistent.
Accurate on clear materials
Surface measurement remains accurate on transparent materials such as glass and clear acrylic.
Finds the tiny stuff
The Toolhead Camera pinpoints small objects and places fine detail exactly where you want it.
Traces the line
Cut around a printed design, trim a sticker, or follow a drawn outline with camera-assisted edge tracing.
Fast, without losing detail.
The R1 brings proven Bambu Lab motion-control technology to laser processing for crisp lines at speed.
Vibration Compensation
Residual shake after a direction change is cancelled to keep lines clean right out of the turn.
Even tone at 1,000 mm/s
The R1 compensates as it moves to help maintain consistent engraving depth at high speed.
Vision Encoder
The Vision Encoder corrects for mechanical drift and maintains absolute motion accuracy within 0.1 mm across the work area.
Tricky setup? Solved.
Auto Laser Alignment
Mount the Laser Alignment Sensor on the toolhead and the R1 measures beam alignment, detects misalignment, and corrects the optical path in about one minute—without thermal paper or test shots.
Follow it on the screen
The built-in touchscreen shows jobs in real time, optical-path calibration, and machine health status without requiring a computer.
Material, recognized
Bambu Lab official materials can be recognized automatically so the machine can apply the appropriate power and speed settings.
Safer by design. Made for everyday spaces.
In standard enclosed use, the R1 is a Class 1 laser device under IEC 60825-1, with multiple systems designed to help protect the operator and workspace.
Crossflow Ventilation
Fresh air enters from one side while smoke exits from the other for steady airflow through the chamber.
Lid-Open Stop
Opening the lid stops the laser immediately, and the laser remains disabled while the lid is open.
Flame Detection
Built-in sensors monitor for signs of flame and respond as soon as one is detected.
Emergency Stop
One press cuts power to the machine immediately.
Go taller. Rounder. Longer. Thicker.
Expand the R1 as your projects grow with optional accessories for taller objects, cylindrical work, thick stock, and extra-long boards.
- Riser Base: creates clearance for taller objects and is required for the Conveyor and Rotary.
- Conveyor: automatically feeds long stock for cutting and engraving boards up to 3 metres.
- Rotary Attachment: rotates round objects for full 360° engraving.
- Medium / Long Focus Lenses: provide greater depth of focus for cleaner cuts through thicker materials.
See the R1 in action
Specifications
Technical details for the Bambu Lab R1 55W CO2 laser cutter and engraver.
| Processing | |
|---|---|
| Laser type | 55W CO2 laser |
| Supported materials | Cut and engrave: wood, acrylic including clear acrylic, leather, fabric, paper, EVA foam, and shell. Engrave only: coated metal, glass, and ceramic. Bare metal cannot be engraved. |
| Maximum cutting capacity | Short-focus: 15 mm black walnut plywood / 20 mm acrylic Medium-focus: 18 mm black walnut plywood / 20 mm acrylic Long-focus: 18 mm black walnut plywood / 20 mm acrylic; faster than medium focus at the same thickness |
| Working area | Standalone: 600 × 300 mm With Conveyor: 600 × 3,000 mm |
| Maximum speed | 1,000 mm/s |
| Maximum acceleration | 20,000 mm/s² |
| Spot size | Short-focus: Ø0.11 mm Medium-focus: Ø0.17 mm Long-focus: Ø0.19 mm |
| Absolute motion accuracy with Vision Encoder | <0.1 mm at 600 mm |
| Air assist pump | 30 L/min at 30 kPa |
| Measurement and Positioning | |
| Positioning system | Dual-camera + dual-laser + dual-encoder system |
| Positioning accuracy | <0.2 mm |
| Panoramic capture | Supported |
| Detail capture | Supported |
| Focusing | Fully automatic laser ranging |
| Toolhead positioning measure | Supported |
What's in the box
The standard R1 package includes the core machine, calibration tools, starter materials, and operating accessories needed to begin creating.
- R1 laser cutter
- Power cord
- Smoke ventilation hose
- Smoke ventilation fan
- Anti-freeze
- Funnel
- Allen key
- Pre-installed safety key
- Laser Alignment Sensor
- Material pin
- Calibration board
- Lubricant grease, 2 units
- Lubricant oil
- Clear acrylic
- Basswood plywood
- Quick-start materials and documentation
See what R1 can make.
Create layered lamps, furniture-scale décor, signs, clocks, organizers, gifts, and detailed custom pieces. The R1 is designed to move from quick prototypes to larger finished work without changing machines.
Creator projects are shown for inspiration. Follow all material, ventilation, and laser-safety guidance for your setup.
PlayDeck - Modular Play Table & Stool Set @ janberrydesign
Crystal Canyon Mine - Marble Run @Daniel4d
Prairie Lamp @Makim
Sunflower Painting @miyabi
Thundercloud - Layered Acrylic Lamp @Daniel4d
Layered Clock @Bambu Lab
Frequently asked questions
What are the differences between the R1 focusing lenses?
Short focal length (S) provides the smallest spot size and the best detail performance. Medium focal length (M) balances precision, speed, and cutting capability. Long focal length (L) provides greater depth of field and is suited to cutting thicker materials.
When does the R1 require optical-path calibration?
The R1 can automatically check and correct the optical path with the Laser Alignment Sensor. Follow the on-screen prompts whenever the machine requests calibration or when the laser module or optical components have been serviced or repositioned.
What is the difference between the R1 and H2-series laser modules?
The R1 uses a 55W CO2 laser designed for cutting and engraving a broad range of non-metal materials, including clear acrylic and wood. Refer to the applicable product documentation for material limits, accessories, and processing conditions for each platform.
Which materials are not recommended for processing?
Do not process materials that can release hazardous or corrosive fumes, unknown plastics, PVC/vinyl, or other materials prohibited by the safety documentation. Bare metal cannot be engraved with the R1; coated metal may be engrave-only. Always verify a material's composition before processing.
Which Bambu Lab air purifier is compatible with the R1?
The E1 Pro Air Purifier is designed to connect to the R1 exhaust outlet and help capture smoke, fine particles, and odors with multi-layer filtration and activated carbon. It is sold separately.
Important safety and performance notes: All references to wood refer to plywood. Cutting capacity depends on material, focus lens, settings, and environmental conditions. The Riser Base, Rotary Attachment, medium- and long-focus lenses, Conveyor, Vision Encoder, Auto Fire Extinguishing System, and E1 Pro Air Purifier are sold separately.
When the Riser Base or auto-feed accessory is installed, the enclosure is no longer complete and the laser cutter changes from an enclosed Class 1 device to a Class 4 device. CO2 laser-safety eyewear and trained professional operation are required in that configuration.
Product data is based on Bambu Lab internal testing. Actual results may vary with material differences, user settings, maintenance, habits, and environmental conditions.
