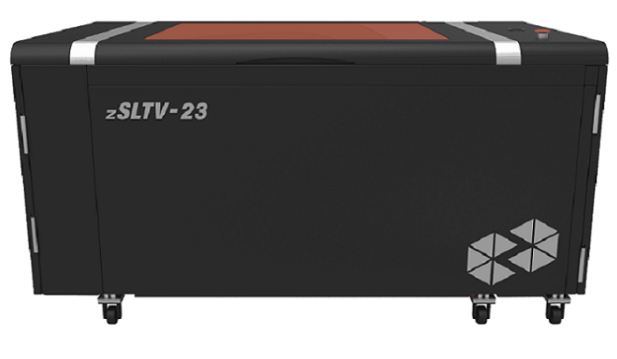

zSLTV-23 is a large scale and high speed industrial 3D printer, it has 3x build area and a blistering fast printing speed, making it the fastest SLA industrial 3D printer in the world to date, ideal for aerospace, automotive, and many other applications.



Printing:

Printing Technology

LCD Stereolithography

Build Volume

527.04 × 296.46 × 740mm

20.75" × 11.67" × 29.13"

XY Resolution

137µm

Highest Accuracy*

±40µm

Layer Thickness (Z resolution)

10, 25, 50, 75, 100, 150, 200, 300µm

Profile customizable

Separation Mechanism

Polymer film natural peel

Up to 100x more durable than PDMS

Support

Uniz smart support technology

Printing Speed

Up to 200 mm/hr

Resin Level Control

Automatic level control

Hardware:

Dimension/ Weight

1600 × 850 × 850mm [W×H×D]

63" × 33.5" × 33.5", 150KG/331LB

Operating Temperature

Suggested 18-28°C

Suggested 64-82°F

Power Requirement

100VAC/220VAC optional, 50/60Hz, 3000W

Optical System

LED array light source with liquid cooling system

Mechanical

Sheet Metal, Machined, fully enclosed

Connectivity

USB, Ethernet

Desktop Software:

System Requirement

Windows 7 and up (64-bit only), Mac OS X 10.7 (64-bit only) and up, 16GB RAM, OpenGL 2.1, Discrete Graphics

Advanced Features

Multi-printer management

Built-in advanced model repair

Ultra large file support (1GB+)

Compatible Format

STL, OBJ, AMF, 3MF, UNIZ
