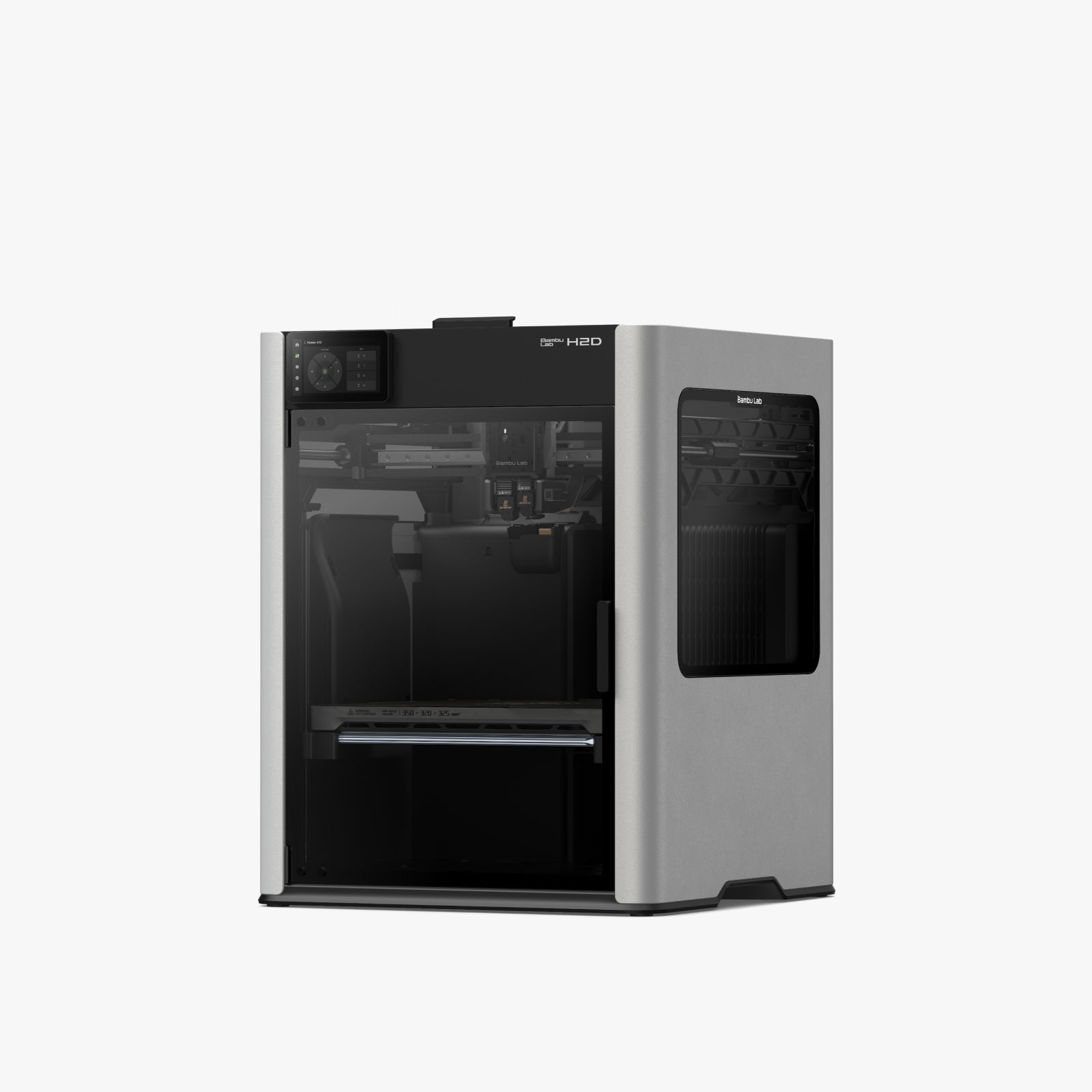

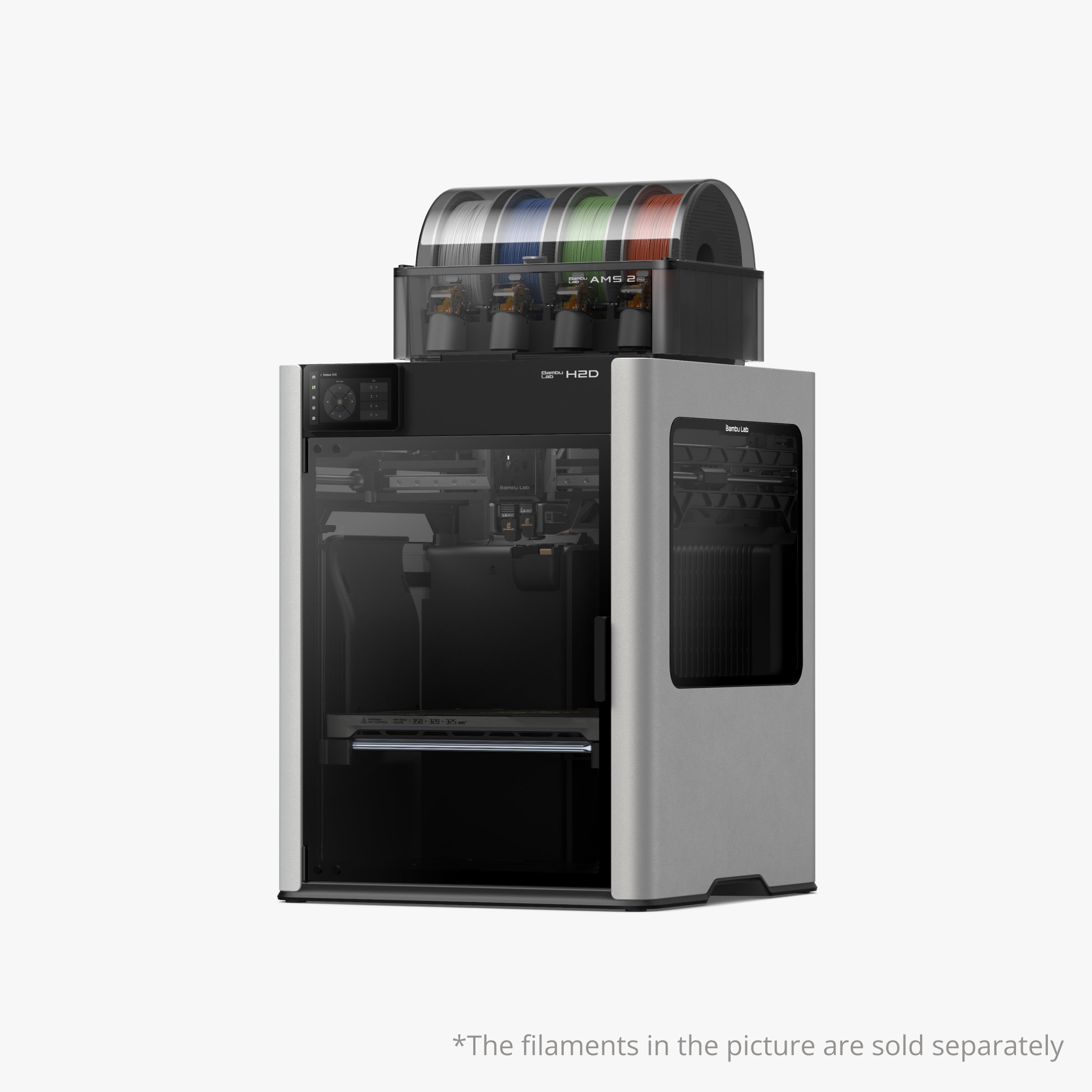

Bambu Lab H2D
Rethink Personal Manufacturing
Explore Dual-Nozzle Cababilities
Multi-material Printing
Flexible and rigid, low cost and exotic materials in one print
Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond trandional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.
Dedicated Support Material
Perfect supports with minimal waste, purging and reloading
Print with support is no longer a headache. With H2D's dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.
Efficient Multi-color Printing
Fast and efficient multi-color printing
Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.
All-in-one Solution For Personal Manufacturing

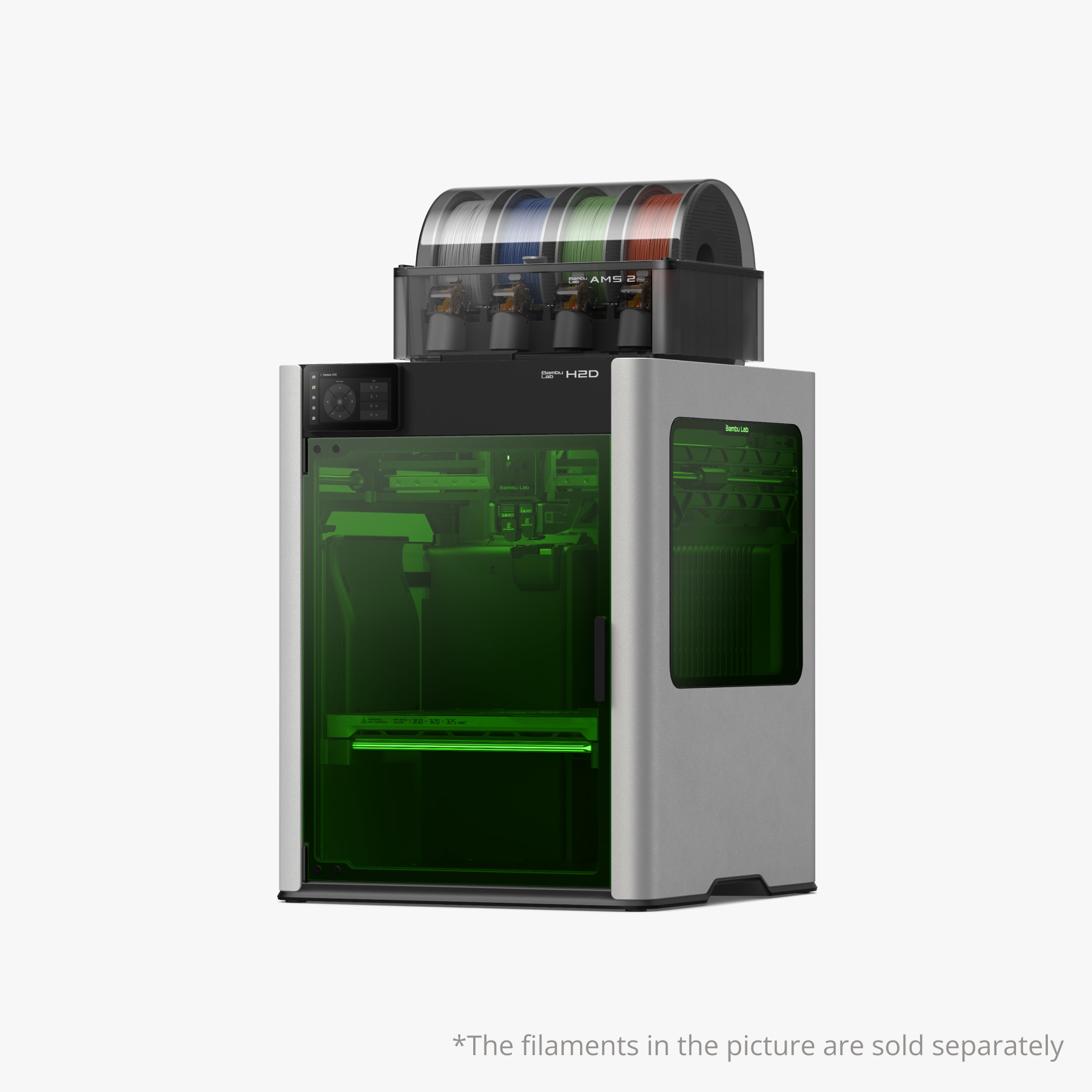

Laser
10W and 40W 455nm Laser for engraving and cutting
Pen Drawing
Drawing and writing
Digital Cutting
Precise cutting on a wide variety of materials
Live Spatial Alignemnt
What you see is what you get
The h2D's BirdsEye camera, combined with computer vision algorhtims, delivers top-view alignment accuracy up to 0.3mm. This advanced spatial alignment allows users to place the tool path at the right position on the material - truly "what-you-see-is-what-you-get." *
Auto Arrangement
Maximize material efficiency, minimize waste
Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project accourding to the shape of your material, i.e leftover plywood from the previous project. This feature helps you to get the most out of every material.
Safety Features
Laser Safety Windows
Operate and monitor laser projects safely without the need for goggles, thanks to the H2D safety windows.
Air Purifier
An optional air purifier ensures clean air, even during indoor laser operations.
H2D Settings
Full-auto Calibration
A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments.
Material Codesync
The H2D automatically scans the QR code on your material to load the perfect preset.
A Serious Laser Machine
Air Assist
Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.
Contact-less 3D Mesh
Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.
Go Big, Go Fast, Go Precise
Secret Weapon: Vision Encoder
50μm ultra-fine motion accuracy*
An ultra-accurate vision encoder plate, combined with 5μm resolution optical measurements to track and correct toolhead motion, enables the H2D to achieve consistent and reliable distance-independent 50μm motion accuracy across the entire workspace, one order of magnitude better than its predecessor.(*Vision encoder sold separately)
King-Size Work Zone
Break Free from Size Constraints
With a print volume up to 350mm x 320mm x 325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.
350℃ Hotend & 65℃ Chamber Heating
Unleash the Full Potential of High-Performance Materials
Equipped with 65℃ active chamber heating and a high-temperature hotend reaching up to 350℃, the H2D delivers precise closed-loop temperature control. This advanced system effectively eliminates warping and deformation in high-performance materials, ensuring superior layer bonding and maximizing their full potential.
REAL High-Flow Hotend*
Consistently Print at 600mm/s with Ease
The H2D's purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s. Designed for consistent performance, it eliminates mid-print flow rate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.*
DynaSense Extruder
Intelligent Sensing for Precise Extrusion Control
Bambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.
A Smarter, Safer Experience
Nozzle Camera
Monitor Extrusion at the Nozzle Tip
The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion filaments.
Pre-Flight Checklist by AI
Peace of Mind, Every Time you Print
Prior to each operational cycle, H2D's vision system initiates a comprehesive pre-flight checklist:
- Chamber Integrity Scan - Detects debris across the entire print surface.
- Hardware Configuration Audit - Instantly identifies nozzle dimensions and build plate properties.
- Digital-Physical Alignmnet - Automatically verifies consistency between hardware specifications and active slicer parameters.
SOTA Filament Monitoring
15 Sensors on One Filament Path
Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This establishes an industry-leading filament behavior control system.
Technical Specifications:
| Printing Technology: | Fused Deposition Modeling |
| Single Nozzle Printing Build Volume: | 325 x 320 x 325 mm |
| Dual Nozzle Printing Build Volume: | 300 x 320 x 325 mm |
| Total Volume for Two Nozzle Printing Build Volume: | 350 x 320 x 325 mm |
| Filament Diameter: | 1.75 mm |
| Extruder Motor: | Bambu Lab High-precision Permanent Magnet Synchronous Motor |
| Extruder Gear: | Hardened Steel Nozzle |
| Hotend: | All-Metal |
| Nozzle Material: | Hardened Steel Nozzle |
| Max. Nozzle Temperature: | 350°C |
| Nozzle Size: | 0.4mm |
| Max Build Plate Temperature: | 120°C |
| Build Surface: | Flexible Textured PEI Plate |
| Max Toolhead Speed: | 1000mm/s |
| Max Toolhead Acceleration: | 20,000mm/s² |
| Max Flow Rate (Standard Flow Hotend): | 40mm³/s* |
| Active Chamber Heating: | Supported |
| Max Chamber Temperature: | 65°C |
| Pre-Filter Grade: | G3 |
| HEPA Filter Grade: | H12 |
| Activated Carbon Filter Type: | Granulated Coconut Shell |
| VOC Filtration: | Superior |
| Particulate Matter Filtration: | Supported |
| Part Cooling Fan: | Closed Loop Control |
| Cooling Fan for Hotend: | Closed Loop Control |
| Main Control Board Fan: | Closed Loop Control |
| Chamber Exhaust Fan: | Closed Loop Control |
| Chamber Heat Circulation Fan: | Closed Loop Control |
| Auxiliary Part Cooling Fan: | Closed Loop Control |
| Enclosed: | Yes—Plastic & Glass |
| Frame: | Aluminum and Steel |
| Filament Cutter: | Built-In |
| Build Plate: | Magnetic, Flexible |
| Bed Leveling: | Fully-automated |
| Swappable Nozzle System: | Yes |
| Power Loss Recovery: | Yes |
| Live View Camera: | Built-in; 1920 × 1080 |
| Nozzle Camera: | Built-in; 1920 × 1080 |
| BirdsEye Camera: | Built-in; 3264 × 2448 |
| Toolhead Camera: | Built-in; 1920 × 1080 |
| Door Sensor: | Supported |
| Filament Runout Sensor: | Supported |
| Filament Tangle Sensor: | Supported |
| Filament Odometry: | Supported with AMS |
| Supported Materials: | PLA, PETG, TPU, PVA, BV OH, ABS, ASA, PC, PA, PET, PPS, PPA, and Carbon/Glass Fiber Reinforced Filament variants of the previously listed materials |
| Display: | 5" Capacitive Touch Screen |
| Display Resolution: | 720 × 1280 |
| Storage: | Built-in 8 GB EMMC and USB Port |
| Control Interface: | Touchscreen, mobile App, PC App |
| Control Interface: | Touchscreen, mobile App, PC App |
| Motion Controller: | Dual-core Cortex-M4 and Single-core Cortex-M7 |
| Applicator Processor: | Quad-core 1.5 GHz ARM A7 |
| Neural Processing Unit: | 2 TOPS |
| Ethernet: | Not Available |
| Wireless Network: | WiFi |
| Operating Frequency: | 2412-2472 MHz, 5150-5850 MHz (FCC/CE) / 2400-2483.5 MHz, 5150-5850 MHz (SRRC) |
| Compatible OS: | Windows, MacOS |
| Slicing Software: | Bambu Studio. Supports third-party slicers which export standard G-code (i.e. Super Slicer, PrusaSlicer and Cura, etc.), but certain advanced features may not be supported. |
| Supported File Format(s): | STL, 3MF |
| Output File Format(s): | Gcode |
| Laser Type: | Semiconductor Laser |
| Laser Power: | 10W: 10 W ± 1 W / 40W: 40 W ± 2 W |
| Laser Wavelength: | Engraving Laser: 455 nm ± 5 nm Blue Light / Height Measuring Laser: 850 nm ± 5 nm Infrared Light |
| Laser Spot Dimension: | 10W: 0.03mm × 0.14mm / 40W: 0.14 mm * 0.2 mm |
| Working Temperature: | 0°C - 35°C |
| Max Engraving Speed: | 10W: 400mm/s / 40W: 1000mm/s |
| Max Cutting Thickness (Basswood Plywood): | 10W: 5mm / 40W: 15mm |
| Laser Safety Class for Laser Module: | Class 4 |
| Overall Laser Safety Class*: | Class 1 |
| Engraving Area: | 10W: 310mm × 270mm (12.2" × 10.6") / 40W: 310mm × 250mm (12.2" × 9.8") |
| Processing Height Range: | 10W: 0mm - 280mm / 40W: 0mm - 265mm |
| XY Positioning Method: | Visual Positioning |
| XY Positioning Accuracy: | < 0.3 mm |
| Z Height Measuring Method: | Micro Lidar |
| Z Height Measuring Accuracy: | ± 0.1 mm |
| Flame Detection: | Supported |
| Temperature Detection: | Supported |
| Laser Module Installation Detection: | Supported |
| Engraving Timelapse: | Supported |
| Safety Key: | Included |
| Air Pump: | Built-in; 30 kPa, 30 L/min |
| Ventilation Pipe Adapter Outer Diameter: | 100mm |
| Safety Key: | Included |
| Laser Safety Windows: | Equipped on Laser Edition - Standard H2D can upgrade through Laser Upgrade Kit |
| Air Assist Pump: | Equipped on Laser Edition - Standard H2D can upgrade through Laser Upgrade Kit |
