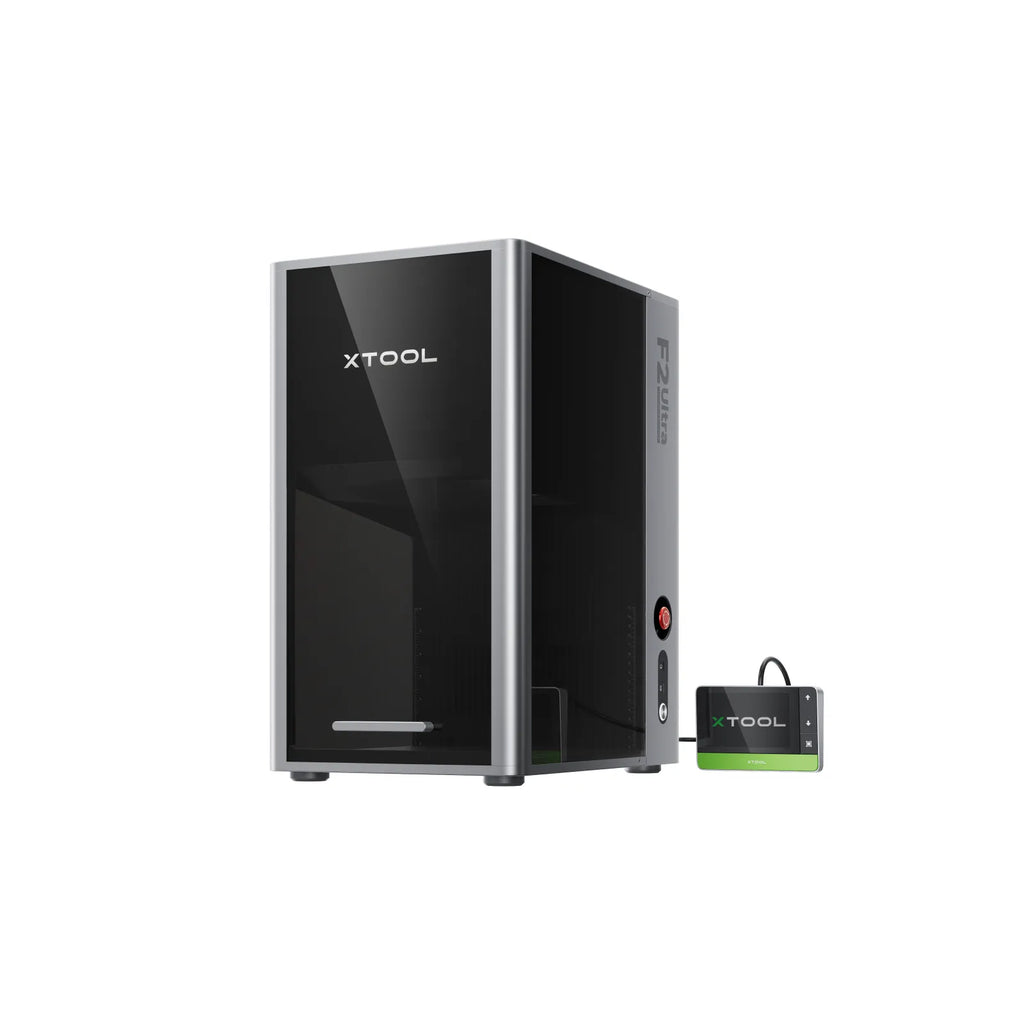

xTool F2 Ultra
xTool F2 Ultra
The First 60W MOPA + 40W Diode Dual Laser with AI
One Powerful Machine Does It All
xTool F2 Ultra offers more possibilities. 60W MOPA laser enables pulse and frequencey control, delivering high-precision results whenever needed. 40W diode laser enables finer processing of non-metal materials and cuts thicker materials effortlessly.
60W MOPA Examples:
40W Diode Examples:
Improved Accuracy and Ease in Color Engraving
With the 60W MOPA laser, you can achieve richer tones, finer gradients, and even holographic effects on metal. What sets xTool apart is their precisely calibrated structure and premium optical system—engineered to minimize variation and maximize consistency.
100+ Vibrant Colors, Remarkably Consistent
Delivers over 100 consistent colors on stainless steel and titanium, spanning 7 color spectrums and taking your designs far beyond black and white.
Get Your Color Palette in One Click
Pre-set color files in XCS let anyone create a personal color palette and easily find the right settings for any color. Color engraving is now easier than ever.
Deep Engraving Done Faster, with More Detail
60W MOPA cuts metal faster and deeper, creating crisp textures and layered reliefs that lower-power lasers can’t match. Adjustable pulse width and frequency give you precise control to reveal the finest details in every design.
From 2D to 3D, Made for every Masterpiece
Effortlessly Cut Through Thicker Materials
2mm Metal
The 60W MOPA laser enables cutting metals up to 5 times thicker than a 20W fiber laser.
20mm Acrylic
The 40W diode laser cuts acrylic up to 20mm thick through multiple passes, delivering clean edges.
23mm Wood
The 40W diode laser cuts wood up to 23mm thick through multiple passes,delivering deeper cuts with less burning.
AI Takes Laser Engraving to the Next Level
AI Drives the Entire Process with One Click
From material detection to settings and preview, it simplifies every step for you.
Dual AI Cameras with Hawk-Eye Vision, Boosting Precision by 60%
Two 48MP cameras in F2 Ultra boost accuracy to 0.2mm—60% improvement over single-camera systems.
AI Powers Every Step You Take
AI Color Recognition
Upload an image, and AI will automatically segment the colors, allowing you to quickly set parameters for each one.
AI Design
AI image generation helps transform your words in 70+ styles within minutes, making every project truly unique.
AI Modeling
Smart 3D modeling lets you engrave objects of any shape or size easily and accurately.
The Ultimate ROI Machine
Create More in Less Time
Unlock Larger Project Possibilities
Up to 220 × 220 mm work area, ideal for one-off projects and detailed pieces.
With the conveyor, the bed size expands to 220 × 500 mm, perfect for handling urgent bulk orders on your own.
Smarter, Batch Process for Industrial-Grade Output
From layout to batch positioning, F2 Ultra streamlines your workflow with smart fill — so you're always ready for bulk orders.
Always Safe and Easy to Maintain
Pre-Assembled
Ensure reliable performance, without setup errors.
Detachable Fan
Easily remove the fan with one click for tool-free maintenance.
What's in the Box?
Specifications
| Laser Type: | F2 Ultra: 40W Diode + 60W MOPA Laser / F2 Ultra(single): 60W MOPA Laser |
| Processing Mode: | Laser engraving & laser Cutting |
| Laser Cuttable: | Diode Laser: Paper, Wood, Leather, MDF, Felt, Some Dark Opaque Acrylic |
| Mopa Laser: | Brass, Stainless Steel, Aluminum |
| Laser Engravable: | Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some Dark Opaque Acrylic, Bamboo, Fabric, Dark Glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal |
| Mopa Laser: | Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold |
| Working Area: | 8.6" × 8.6" (220 mm × 220 mm) / 8.6" × 19.6" (with conveyor) (220 mm × 500 mm) |
| Max. Working Speed: | 590.55 ips (15,000 mm/s) |
| Max. Laser Cutting Capacity (Basswood): | 0.91" (23mm) in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic): | 0.79" (20mm) in Multiple Passes |
| Max. Processing Height: | 150mm |
| Max. Rotary Engraving Diameter: | 150mm |
| Supported Software: | xTool Creative Space/Atomm |
| Operating System: | Windows/macOS |
| Connection Method: | USB/Wi-Fi/IP |
| Supported Files: | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| AImake Compatibility: | Yes |
| Pre-assembled: | Yes |
| Built-in Camera: | 48 MP Dual Cameras |
| Positioning Method: | Camera Positioning |
| Focus Mode: | Autofocus |
| Ranging System: | N/A |
| Preview Method: | Smart Camera Preview |
| Laser Spot Size: | 0.09*0.1mm (40W Diode Laser) / 0.03*0.03mm (60W MOPA Laser) |
| Positioning Precision: | 0.2 mm |
| Ranging Precision: | 0.2 mm, Camera |
| Image Resolution: | N/A |
| Motion Accuracy: | 0.00482 mm |
| Safety Certification: | Class 4 Laser Safety |
| Product Size: | 11.57'' × 16.88'' × 20.51'' (294 mm x 429 mm x 521 mm) |
| Product Weight: | F2 Ultra: 47lb (21.6kg) / F2 Ultra(single): 45lb (20.8kg) |
| Max. Machine Input Power: | 400W |
| Power Adapter Input Voltage: | 100 V - 240 V, AC 50/60 Hz |
