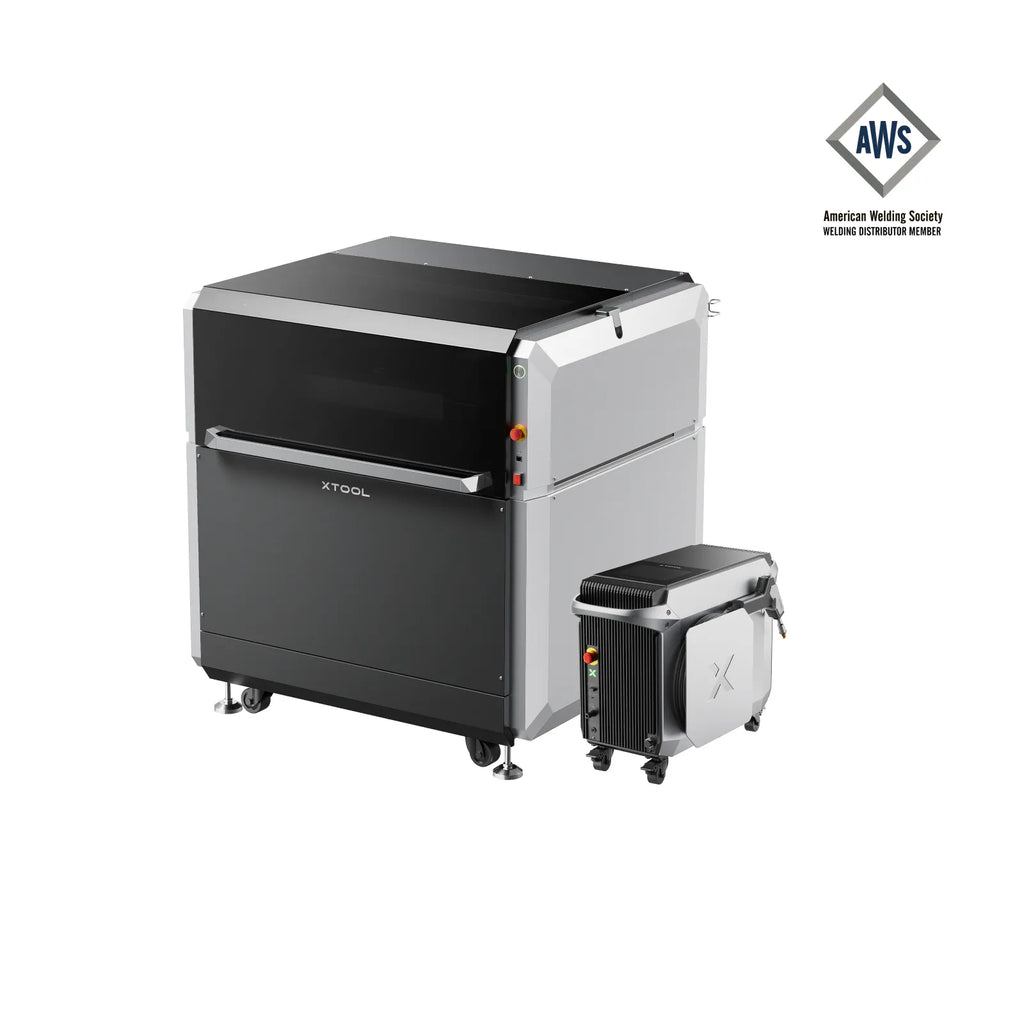

xTool MetalFab Laser Welder and CNC Cutter
xTool MetalFab Laser Welder and CNC Cutter
All-in-One Metal Workshop for Small Businesses & DIYers
Your All-in-One Metal Workshop
Laser Welding
Achieve clean, consistent, and durable welds with industrial laser precision. Get professional-grade results even for beginners.
Mobile Cutting
Performs smooth, precise metal cuts on-site and in tight spaces, without rough edges or mess.
Post-Weld Cleaning
Achieve clean white weld seams with a 0.39-inch (10mm) cleaning path. (The nozzle must have contact to the surface to activate the safety circuit)
CNC Laser Cutting
Unlock ultra-precise, industrial-grade metal cutting for intricate designs. Bring your concepts to life with flawless detail.
CNC Laser Cleaning
Automate rust and paint removal like never before! 1.57 IPS of precision, achieving flawless results with zero effort.
From DIY to Business, Cover All Your Metal Needs
Compressing Project Time from One Week to One Hour - Super Fast
15.75 ips
Cutting Speed
8x Faster
Welding Then TIG
Take Your Metalworking to the Next Level - Perfect Welds. Precise cuts.
Master Every Weld, No Matter the Metal, Thickness, or Joint Type
Fiber laser technology minimizes heat-affected zones to ≤0.002 inches (0.05mm), enabling precise welding of thin metals without distortion. Its high-energy output ensures rapid metal melting, allowing single-pass welding for materials up to 0.2 inches (5mm) thick. With this technology, deep and narrow welds are achieved with stable and consistent quality.
Various Thicknesses
Various Joint Types
Various Metals
From 0.008" to 0.39" Thickness, Every Cut is Smooth, Clean, and Flawless.
The 1200W high-energy fiber laser effortlessly cuts carbon steel up to 0.39 inches (10 mm) thick in a single pass. With its minimal heat-affected zone and high laser power, it ensures precise cutting results. It delivers smooth, clean surfaces while effectively preventing deformation in thin metals. This significantly reduces the need for post-processing.
Precision You Can See, Ultra-Fine in Every Detail
The secret behind precision cutting lies in the exclusive VibeFreeCut™, FlexiTrack™, and ObstacleFree™ technologies, designed to work together to deliver unmatched precision, making every cut flawlessly accurate and effortlessly smooth.
What Makes Every Cut Perfect?
VibeFreeCut™
VibeFreeCut™ integrates advanced motion control algorithms with system recognition technology to eliminate vibrations in real time, ensuring unparalleled stability and precision.
FlexiTrack™
FlexiTrack™ continuously checks the distance between the laser head and the metal surface in real time, automatically adjusting the Z-axis to maintain accurate focus, ensuring precise cuts and smooth results every time.
ObstacleFree™
ObstacleFree™ features a proprietary path-avoidance algorithm that intelligently bypasses potential obstacles, ensuring continuous operation and equipment safety.
One-Click Smart Nesting: Up to 98.7% Material Use
Equipped with a 16MP panoramic camera and AI algorithms, the system analyzes materials and generates optimal cutting layouts with one click, achieving a 98.7% material utilization rate.
Ultra-Accurate Cutting for Small Objects
The close-range camera ensures precise positioning with a center deviation of less than 0.008 inches (0.2mm), delivering exceptional accuracy and reliability—perfectly suited for even the smallest objects.
Save 50% on Gas with xTool's Innovative Solution
Our proprietary SaveGas™ Solution combines the SaveGas™ nozzle with the xTool-selected air compressor and dryer, designed to maximize cutting efficiency. The ceramic ring inside the nozzle forms a tight seal against the material surface, optimizing airflow and enhancing cutting performance. When cutting 0.16 inches (4 mm) stainless steel to a burr-free finish, xTool accessories require only 87 PSI (0.6 MPa)—saving up to 50% in gas compared to nitrogen cutting at 174 PSI (1.2 MPa).
Burr-Free Cutting of 0.16-inch Stainless Steel at Just 87 PS
Effortless Creation Through Powerful Software
One-Click Material Settings
No more wasting time testing parameters or wasting materials! Simply select the corresponding material in the software, and apply it instantly with just one click.
AI-Generated Images in Seconds
No more struggling with AI using complex prompts—just state your needs in one sentence, and AImake generates precise, ready-to-use designs in seconds!
Smart & Efficient Cut-Path Planning
When cutting multiple regular shapes (such as rectangles or circles), the Smart Flow Cutting mode connects line segments in the same direction for continuous cutting. By minimizing redundant movements, it increases efficiency by 50% and significantly enhances productivity.
One-Tap Setup, 108+ Parameters Preset
The 8-inch Smart Touchscreen with an intuitive interface makes operation effortless. Preloaded with 108+ material parameters, it’s ready to use instantly. Easily switch between three welding modes with a single tap and fine-tune parameters with precision. Save custom settings and access them effortlessly with just one tap.
It’s Proven to Last 30% Longer Than Other Laser Cutter

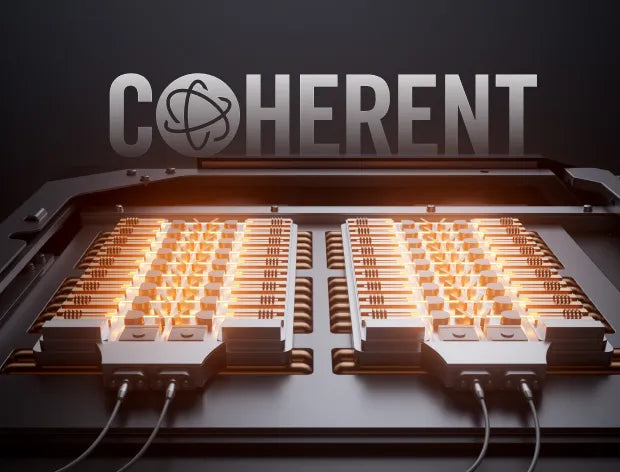

Built with high-quality industrial-grade materials, a Coherent chip, advanced temperature adaptability, intelligent thermal control, and high-performance cooling, the device delivers stable performance even in extreme temperatures (-10°C to 40°C). The design minimizes overheating risks, ensuring long-term reliability and cost-efficiency during high-load and extended operations. With a lifespan exceeding 10,000 hours, it outlasts competitors by 30%.
-10 to 40°C Stable Laser Power Output
7*24Hrs Non-Stop Working
≥ 10,000 Hrs Stable Operation
Highest Safety Standards with 10 Features
The xTool Metalfab is CE, FCC, and FDA certified, meeting stringent safety and quality standards. Equipped with 10 advanced safety protections, it ensures your welding tasks are performed with maximum security. These certifications and safety features provide you with peace of mind, so you can focus on creativity and performance, knowing that safety is fully covered.
Made with Care for Your Best Experience
Integrated Welding Gun for Smoother Use
Compact Portable Welder with Built-In Wire Feeder

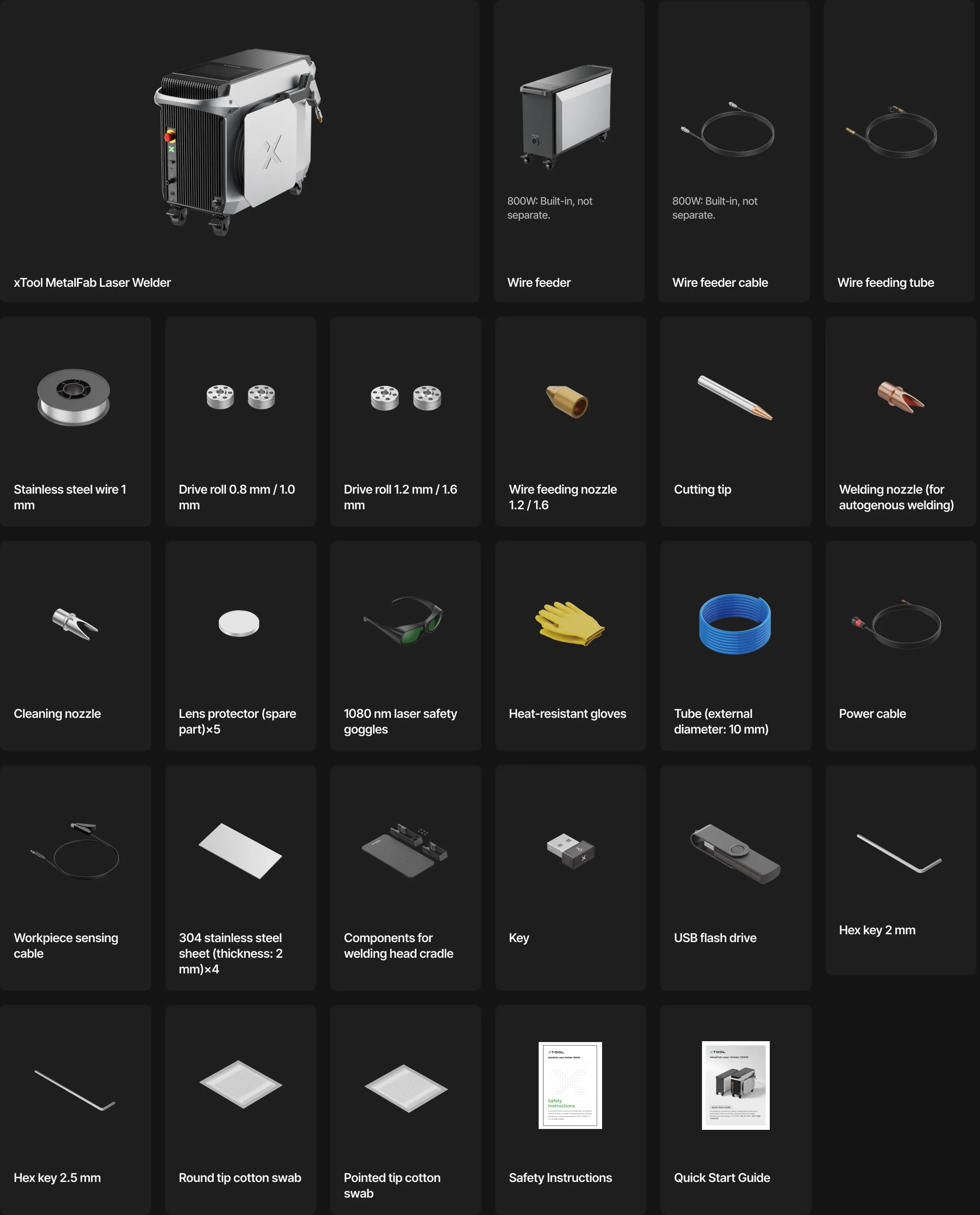

What's in the Box?
Specifications
xTool MetalFab Laser Welder 1200W
| Laser Power: | 1200W |
| Laser Type: | Fiber Laser |
| Processing Mode: | Welding / Cutting / Rust Removal & Cleaning |
| Welding Mode: | Continuous Welding / Spot Welding / Pulse Welding |
| Supported Materials: | Stainless steel, aluminum, carbon steel, titanium, nickel alloy, brass, galvanized sheet, magnesium, etc. |
| Processing Thickness: | 0.0078 - 0.197 in (0.2 - 5 mm) |
| Wavelengths: | 1080 ± 10 nm |
| Photoelectric Conversion Rate: | 36% |
| Recommended Gases: | Nitrogen or Argon |
| Cooling System: | Air-cooling |
| Safety Certification: | Class 4 Laser Safety |
| Rated Power: | 4200W |
| Input Voltage: | 200 - 240V, AC 50/60Hz |
| Full-load Current: | MAX 21A |
| Storage Temperature: | 14 ℉ - 140 ℉ (-10 ℃ - 60 ℃) |
| Operation Temperature: | 14 °F - 104 ℉ (-10 ℃ - 40 °C) |
| Machine Dimensions: | 28.66 × 12.87 × 20.16 in (728 × 327 × 512 mm) |
| Cable Length: | 196.85 in (5 m) |
| Machine Weight: | 38.2 kg |
xTool MetalFab Laser Welder 800W
| Laser Power: | 800W |
| Laser Type: | Fiber Laser |
| Processing Mode: | Welding / Cutting / Rust Removal & Cleaning |
| Welding Mode: | Continuous Welding / Spot Welding / Pulse Welding |
| Supported Materials: | Stainless steel, aluminum, carbon steel, titanium, nickel alloy, brass, galvanized sheet, magnesium, etc. |
| Processing Thickness: | 0.0078 - 0.157 in (0.2 - 4 mm) |
| Wavelengths: | 1080 ± 10 nm |
| Photoelectric Conversion Rate: | 36% |
| Safety Certification: | Class 4 Laser Safety |
| Storage Temperature: | 14 ℉ - 140 ℉ (-10 ℃ - 60 ℃) |
| Operation Temperature: | 14 °F - 104 ℉ (-10 ℃ - 40 °C) |
| Recommended Gases: | Nitrogen or Argon |
| Rated Power: | 3000W |
| Cooling System: | Air-cooling |
| Full-load Current: | MAX 15A |
| Input Voltage: | 200 - 240V, AC 50/60Hz |
| Machine Dimensions: | 24.88 × 11.97 × 18.58 in (632 × 304 × 472 mm) |
| Machine Weight: | 35 kg |
| Integrated Wire Feeder: | Yes |
| Cable Length: | 137.8 in (3.5 m) |
xTool MetalFab CNC Cutter
| Processing Mode: | CNC Cutting/CNC Rust Removal & Cleaning |
| Cutting Thickness: | Up to 0.39 in (10 mm) with xTool MetalFab Laser Welder 1200W |
| Cutting Thickness: | Up to 0.31 in (8 mm) with xTool MetalFab Laser Welder 800W |
| Working Area: | 24.02 × 24.02 in (610 × 610 mm) |
| Pass-Through Size: | 24.02 × ∞ in (610 × ∞ mm) |
| Max. Working Speed: | 15.75 ips (400 mm/s) |
| Motion Accuracy: | ± 0.0039 in (± 0.1 mm) |
| X/Y Axis Max Speed: | 0.1G |
| X-Axis Travel: | 24.02 in (610 mm) |
| Y-Axis Travel: | 24.02 in (610 mm) |
| Z-Axis Travel: | 3.54 in (90 mm) |
| Exhaust Fan Capacity: | 620m2800RPM (± 10%) |
| Safety Certification: | Class 4 Laser Safety |
| Rated Power: | 250W |
| Input Voltage: | 100 - 240V, AC 50/60Hz |
| Full-load Current: | MAX 2.5A |
| Storage Temperature: | 10 °F - 140 °F (-10 °C - 60°C) |
| Operation Temperature: | 0 °F - 104 °F (0 °C - 40 °C) |
| Machine Dimensions: | 46.26×45.55×48.43 in (1175 x 1157 x 1230 mm) |
| Machine Weight: | 150kg |
