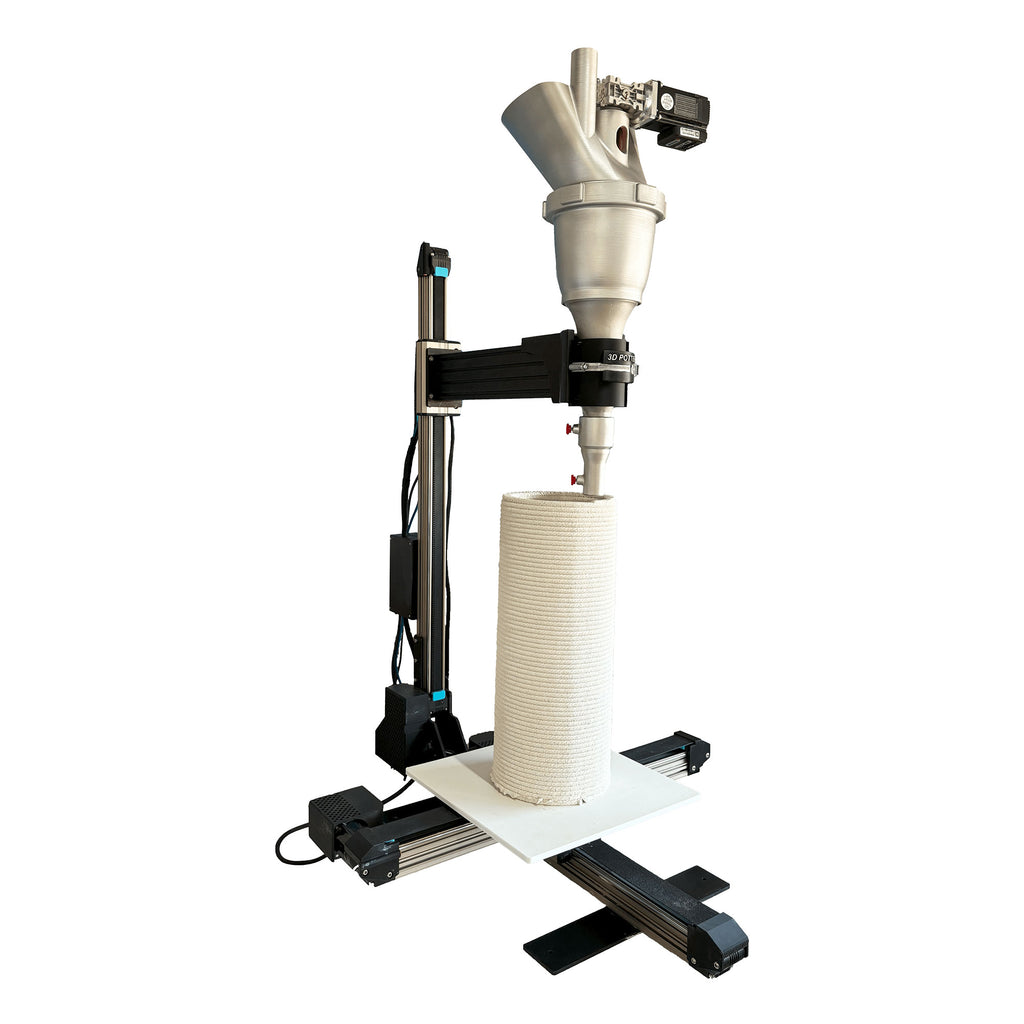

3D PotterBot 10 XL with Auger HP 24 System

3D Potterbot 10 XL

The 10XL, when paired with our auger system, is suitable for testing small batches of cementitious and adobe materials in a laboratory or university setting. This is useful for evaluating different types of materials before using larger-scale systems, such as the Scara Elite Roadrunner Rail System. It is important to note that the 10XL print bed has a maximum weight capacity of 30 pounds, so it is not recommended to exceed this limit. The auger system is not compatible with clay.

It uses our strongest motors and has 30% more printing area than our standard size model, allowing for even more creative designs.

This 10 XL printer also works with our 3600ml and 4000ml extruders which can be added later.

The 10 XL ceramic 3D printer has the capability of printing vessels up to 28" (71cm) high with 18 pounds of clay being extruded at one time. It is constructed with extremely durable components. The 10 XL has the largest extruder out of all of our printers, letting you print the most amount of clay with the least amount of tube reloading. With a 4000ml you can print dozens of objects and still have clay left over.

3D Potter Clay Printers

3D Potter clay printers use high quality anodized aluminum rails. These rails are robust and have a smooth surface, allowing for easy movement of parts while being able to withstand classroom or industrial environments.

The unique feature of our printers is the direct extrusion of real clay. Other brands use a compressed air system printing slip (watered down clay or alcohol diluted clay). The advantage of direct extrusion is printing full body clay, or other paste-like materials. All materials used to build our printers are food grade, so get creative.

We keep improving our designs. The 10th generation ceramic 3D printer brings a new wireless feature with a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously. The interface allows you full control over every setting of the machine. Interface preview.

The 10th gen has a new uniform nozzle design for improved performance, across all of our printers. This allows you to interchange nozzles between all of our printers, from the Micro to the Scara V3.

What's included:

1. 3D PotterBot 10 XL

2. Auger (extruder)

3. 2 nozzles, 1/2 in and 3/4 in. 1 in opening with no nozzle

4. Optional 3600ml or 4000ml extruder, 2 tubes and anti-Rotator, Anodized aluminum print nozzles (in sizes: 3, 4, 5, and 6mm)

5. Alan key set

6. Power Supply

7. Wall mount bracket

Specifications

Printing Envelope:
X-19.3" (490 mm)
Y-19.3" (490 mm)
Z-28" (710 mm)

Printer size:
W-32” L-40” H-47”
Normal operation space needed 3600ml: W-32” L-40” H-82”
Normal operation space needed 4000ml: W-32” L-40” H-85”
Maximum operation space needed: W-35” L-42” H-89”
Bat diameter (printer bed): 15x15in” (381x381mm)
Height to the top of the extruder fully extended is 89” (2260mm)
Weight with extruder: 60 lbs.

*Note, Auger Z height print envelope is approximately 24″

Recommended print speed: 1.1”/s’ to 7.9’’/s (30 to 200 mm/s)
Maximum print speed: 7.9in”/s (200mm/s)
Power Supply: Output - 24V 10 amps, Input - 100-240V, 50-60 Hertz.
Power consumption: 24V ~6 amps, ~144 Watts

Full control through web interface, no apps or software installation. Non-WiFi versions are available, please contact us if you would like this type of connection (Ethernet connection).
