gMax 2 PRO Enclosed 3D Printer
gMax 2 PRO
Enclosed
Versatile, High Performance, USA Made
Designed and rigorously tested to be versatile across a wide range of materials and functionalities, the gMax 2 PRO is the premium solution for accurate, consistent 3D printing with a build volume suited for life sized objects. The gMax 2 PRO is the new standard for easy to use, affordable, industrial large format desktop 3D printing.
- 18" x 18" x 24" Print Volume Capabilities
- 800W BuildTak G10FR4 Heated Bed
- Full Color, Responsive Touchscreen
- 400°C Slice Engineering Copperhead Hotend
- Hiwin Industrial Linear Guide Rails
- 32-Bit Electronics with Silent TMC 2130 Drivers
- Dual Door Full Enclosure with 360° Visibility

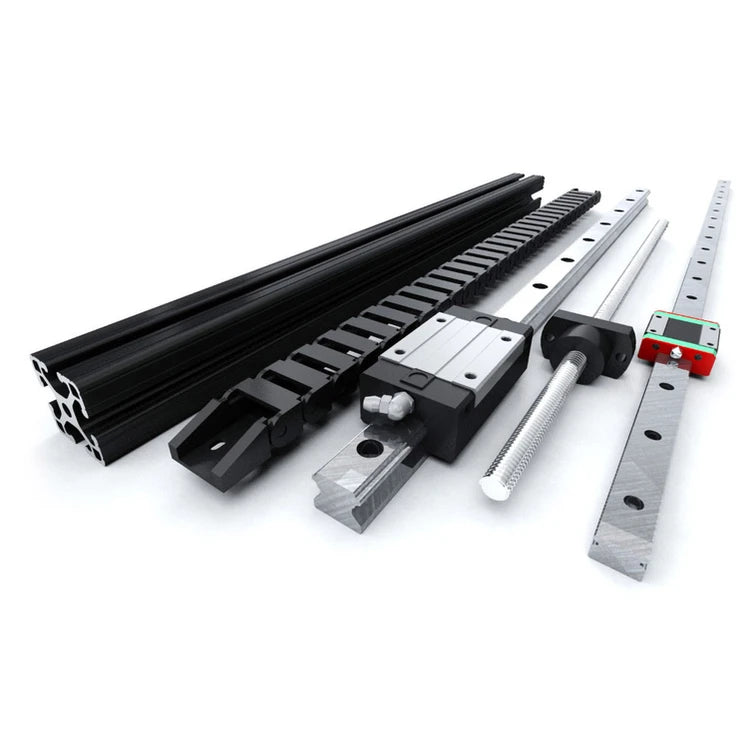

Industry Leading
Components
|
Genuine components from industry leading partners to ensure the highest quality output and easy maintenance. |
USA Designed and
Manufactured
|
The gMax 2 PRO is proudly made in-house in Brooklyn, NY with many parts sourced in the USA. |
In-House
Tech Support
|
gCreate's dedicated in-house technicians are available for email, phone, and video support. |
A Large Format Workhorse
The gMax 2 PRO sets the new standard for large format desktop 3D printers.

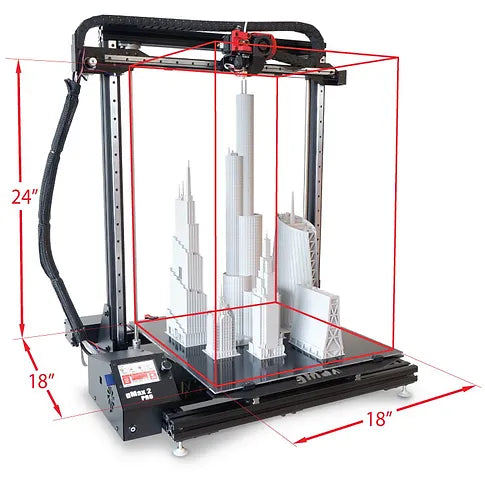

The gMax 2 PRO has an impressive build volume of 457.2 x 457.2 x 609.6 mm (18" x 18" x 24") or and impressive 7,776 in³
The gMax 2 PRO has all metal structure and is made from industrial grade materials. From steel linear rails to a robust genuine 80/20 frame, the gMax 2 PRO was designed with strength, performance and reliability in mind.
Industrial Glass Fiber Reinforced Composite Heated Bed
The glass fiber reinforced heated bed provides a great print surface for all types of filament.
Made of a custom laser cut BuildTak G10FR4 composite heated build surface for excellent thermal stability even at high temps combined with an 800 Watt heated pad. The bed is controlled by the printer via an external Solid State Relay (SSR) with PID tuning and fuse protection.
The result is a bed that combines the thermal stability of glass and the resilience of aluminum for a perfect heating cycle. You can adjust temperatures per layer, fine tune the heating cycle and turn off the bed remotely with the gTouch Controller.

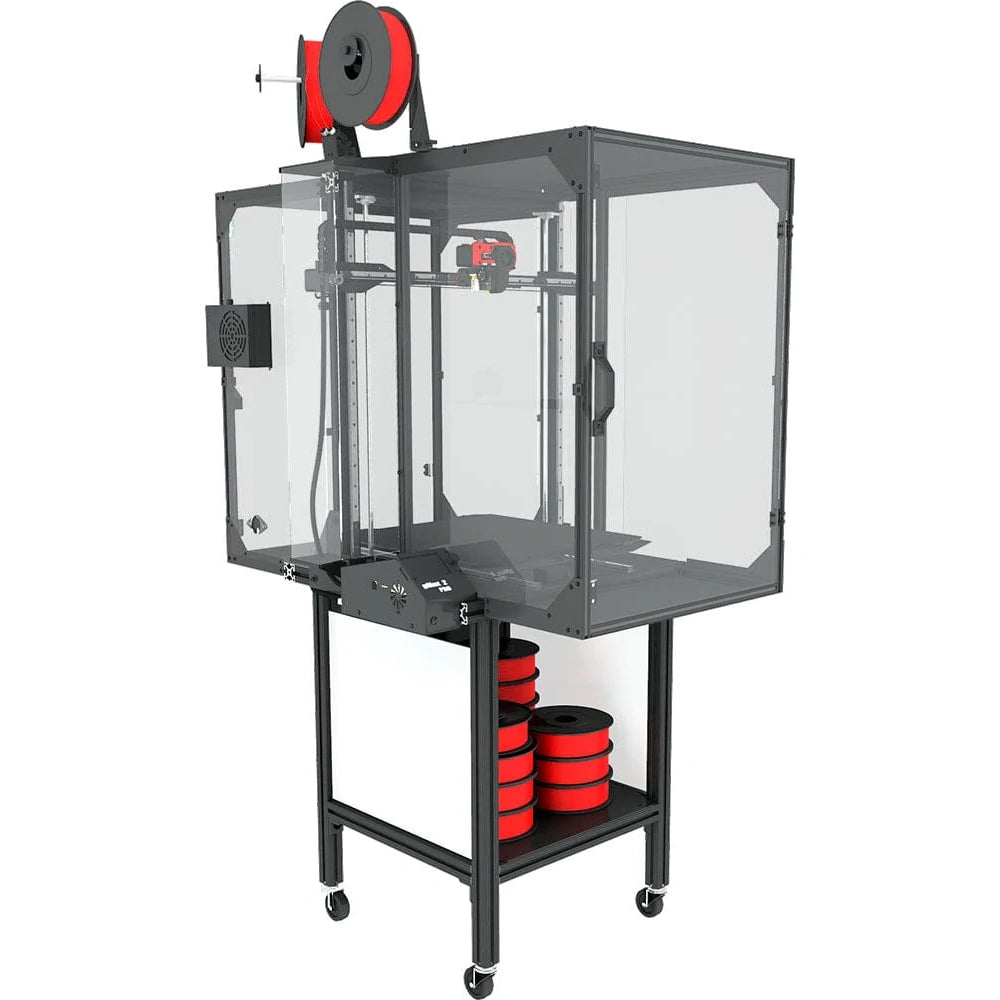

Enclosed Build Chamber
Perfect Fit
The gMax enclosure attaches directly to the ultra sturdy gMax 2 PRO and gMax 2 aluminum frame.
This custom enclosure attaches directly to the printer to ensure a streamlined, ultra sturdy production system. The enclosure consists of powder coated aluminum panels on top and bottom, bolted to an aluminum 2020 frame. Thanks to the design, this enclosure does not require a table and it also works if you have the gMax rolling cart.
View the rolling cart by clicking 'Learn more' below.
Features Include:
- Compatible with the gMax rolling cart
- Front and rear acrylic doors allow for easy access to your prints
- Supports dual runout sensors
- Supports multiple spool brackets
Print Engineering Grade Materials Out of the Box
The gMax 2 PRO is designed to print with an extensive selection of 1.75mm filaments right out of the box to 400°C. gCreate emphasizes producing top quality 3D printers that can perform with engineering grade materials.
- PLA
- PETG
- TPU
- CF-Nylon
- PVA
- Polycarbonate
- Engineering Grade Composites
- Metal Composites
- and many more
- GF Nylon
- 90% Metal Filament
- PC+TPE
- Nylon 645
- ABS
32-Bit Electronics with Marlin 2.0
The gMax 2 PRO has 32-bit electronics using a powerful Arm Cortex-M4 STM32 processor
The gMax 2 PRO electronics have been completely redesigned to use powerful new controller options and firmware.
gCreate utilizes Trinamic TMC2130 stepper drivers equipped with SpreadCycle™ and StealthChop™ technology for silent operation at increased speeds and up to 1/256 microstepping!
gCreate utilizes Trinamic TMC2130 stepper drivers equipped with SpreadCycle™ and StealthChop™ technology for silent operation at increased speeds and up to 1/256 microstepping! |
|
The gMax 2 PRO also includes a responsive full color touch screen with dedicated firmware. The screen operates very quickly and has updated themes available. Future software updates can easily be done via SD card.
The gMax 2 PRO also includes a responsive full color touch screen with dedicated firmware. The screen operates very quickly and has updated themes available. Future software updates can easily be done via SD card.
Additional upgrades include:
- All new v2 filament runout sensor (Dual runout compatible)
- Power loss recovery
- 144 point bilinear bed leveling (BBL)
- Sensorless homing
- RGB LED light bar with printer events
- Print from SD, USB memory stick or USB via a computer
- Classic Marlin mode emulator and much more
Adaptive Toolhead
Ultra Performance Extruder
- Powerful Direct Drive Extruder
- Supports speeds Up To 200 mm/sec
- Powerful Blower Fan for Fast Cooling
- Sharpest Drive Gear in the Industry
- Print with 85A TPU
- High Quality Metal Parts
- Made in the USA
Premium hotend options from Slice Engineering, E3D, and more....
Mulitple configurations for improved performance or dual material printing.
gMax 2 PRO
Single Extruder
Slice Engineering® Copperhead™
Included Hotend
- Print up to 400°C
- 50 Watt Heater Cartidge
- Easy Nozzle Swapping
- Nickel Plated Copper Alloy Heat Block
- Bimetalic Heat Break
- Print engineering grade materials
gMax 2 PRO
Swap Hotends for High Flow or High Temp
The gMax 2 PRO extruder was designed to fit the common "groove mount" style hotend allowing for many professional and hight quality replacements. From the industry recognized E3D v6 to the high quality Slice Engineering hotends they can all fit on the single extruder.
E3D v6
(Compatible)
- Commonly used in the industry.
- Print Up to 300°C
- Swappable Nozzles
- All-Metal Hotend
- Readily Available Components
Slice Engineering® Copperhead™
- Comes Standard on the gMax 2 PRO
- Print up to 400°C
- 50 Watt Heater Cartridge
- Easy Nozzle Swapping
- Nickel Plated Copper Alloy Heat Block
- Bimetallic Heat Break™
Slice Engineering® Mosquito®
- Mosquito, Mosquito Magnum and Mosquito Magnum + Compatible
- Print up to 400°C
- 50 Watt Heater Cartridge
- High Flow Printing up to 30 mm³/sec and 80 mm³/sec with the Magnum+
- Easily Swappable on the gMax 2 PRO Single Extruder
gMax 2 PRO Dual
Chimera+ Dual Nozzle Hotend
The gMax 2 uses genuine E3D Chimera+ hotends for high precision and accessible replacement parts.
Dual Chimera+ with 2 inputs and 2 outputs allows for independent temperature control per nozzle for use with a wide range of materials simultaneously.
Each heater can also utilize different nozzle sizes for extremely strong infill with high detailed perimeters. Mix and match nozzles all in the same dual print!
gMax 2 PRO Dual Chimera+ Features
- Can print TPU and materials up to 300°C
- Precision engineered components
- Easily swappable with gMax 2 PRO Single Extruder
- Separate nozzles for independent heating
- Wide range of easy-to-swap nozzles between 0.2mm - 1.2mm
- Easy dual-material and dual-color 3D printing
- Powerful 40W heater cartridges
Available Accessories
gMax Rolling Cart w/ Locking Casters
This stylish and functional cart was designed with quality and strength in mind, using solid steel plates and the same high quality components as the gMax printer itself. The cart also includes locking casters for easy movement or stationary support.
Bundle and save! View the Pro Bundle by clicking 'Learn more' below.
Features Include:
- Heavy duty 80/20 aluminum profiles
- Solid aluminum angles provide great rigidity
- Heavy and durable powder coated steel bottom shelf and back plate
- Visible Storage from frosted acrylic inserts as side panels
- Four locking 2.5" casters for easy movement or stationary support
Buy now or upgrade later. View the rolling cart by clicking 'Learn more' below.

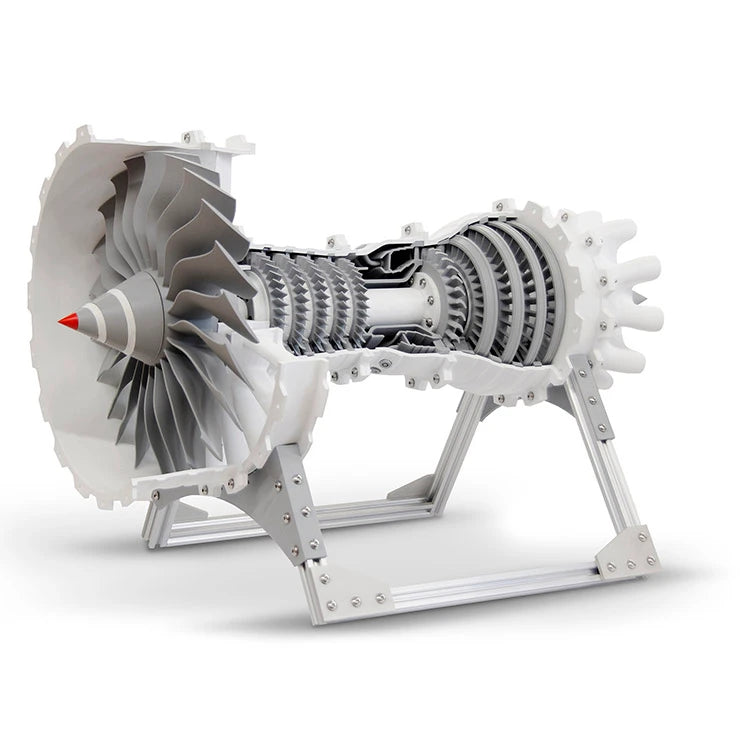

gMax 2 PRO Print Gallery
The gMax 2 PRO has been tested across a wide variety of filaments from flexible TPU to glass giber reinforced nylon to ensure you can print with industrial grade materials. Thanks to the 400°C Slice Engineering Copperhead hotend and BuildTak G10FR4 heated build plate the gMax 2 PRO is ready for your next project.
Custom Configuration Files
for PrusaSlicer, Cura, and Simplify3D
The gMax 2 PRO 3D Printer has been tested extensively using the popular PrusaSlicer, Simplify 3D, and Cura slicing software.
PrusaSlicer
PrusaSlicer is a powerful and free open-source slicing engine with advanced features such as paint on support, variable layer height and dual 2in1 support. (Recommended)
Cura
Cura is a free slicing program with new features being continuously added over the years.
Simplify 3D
Simplify3D is a professional slicing with advanced features and a powerful gcode viz engine.
gMax 2 PRO Specs
Printer Technology:
FDM - Fused Deposition Modeling
Dimensions:
18" x 18" x 24" inch (7,776 in³) print volume
(457.2 x 457.2 x 609.6 mm)
Layer Resoolution:
0.01mm to 0.9mm (nozzle dependent)
Filament:
gMax Printers are compatible with a wide variety of 1.75mm filaments
Linear Motion:
Metal linear guides for X, Y and Z
4mm Pitch Tr10 10mm Lead Screws
Resolution:
0.000492” XY resolution
0.0000492" Z resolution
0.040 mm min layer resolution
1/256 microstepping controlled by firmware
Bed:
18" x 18" BuildTak G10FR4 Glass Fiber Reinforced Heated Bed Controlled by Printer.
Keenovo Silicone 800W Heated Pad, FoTek SSR in Steel Grounded Case.
Electronics:
32-Bit SKR v2
Arm Cortex M4 STM32 Processor
Marlin 2.0 Firmware
Runout Sensor:
Dual bearing PRO Runout Sensor with optical sensor. Can be connected to other sensors
Power supply:
120v/240v Selectable Micro ATX
(Printer Uses Approx. 80 Watts)
120v (Only) Heated Bed Plugs Directly Into Wall
Hotend:
All-Metal Slice Engineering Copperhead with 50W heater cartridge. Prints 400°C out of the box
Nozzle:
Works with a variety of nozzle diameters (0.2mm - 1.2mm), Stainless Steel, Olsson Ruby and more
Structure and Frame:
Genuine 80/20 Lite aluminum 1.5″ T-Slot profile
Powder coated aluminum and steel parts manufactured in the USA
Motors:
NEMA 17 1.68 Amp, 1.8 Step Angle
Silent TMC2130 Drivers with SPI
Bed Leveling:
Integrated Genuine BLTouch Smart Bed Leveling Sensor 144 Point Bi-Linear Bed Leveling (BBL)
Connectivity:
Print via USB, SD Card or USB Stick
OctoPrint, OctoDash and OctoFarm compatible
Materials:
All 3D printed parts are printed in industrial-grade CF PETG and SLS nylon.
Combined Weight:
Approx. 150lbs
