$19,999 + Shipping Cost

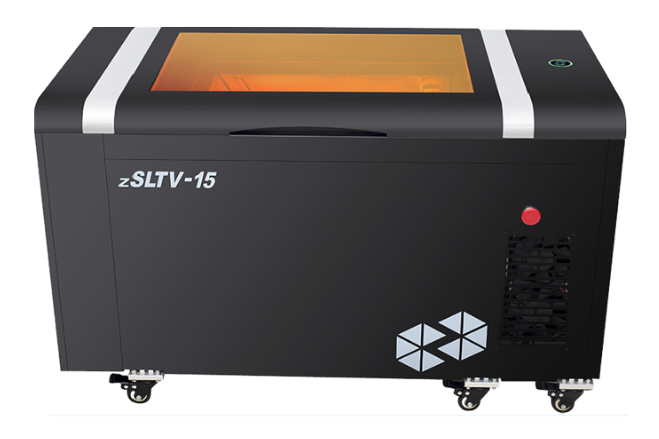

Employed with Uniz’s Uni-Directional Peel™ (UDP) technology, zSLTV-15 has 3x build area and a blistering fast printing speed, making it the fastest SLA industrial 3D printer in the world to date, ideal for aerospace, automotive, and many other applications.

Contact sales@u3dps.com for more information



Printing:

Printing Technology

LCD Stereolithography

Build Volume

345.6 × 194.4 × 400mm

13.6" × 7.65" × 15.75"

XY Resolution

86µm

Highest Accuracy*

±30µm

Layer Thickness (Z resolution)

10, 25, 50, 100, 150, 200, 300µm

Profile customizable

Separation Mechanism

Polymer film natural peel

Up to 100x more durable than PDMS
UDP ready**

Support

Uniz smart support technology

Printing Speed

Up to 600 mm/hr (UDP mode)

Up to 200 mm/hr (Normal mode)

Resin Level Control

Automatic level control

Hardware:

Dimension/ Weight

1350 × 600 × 700mm [W×H×D]

53.1" × 23.6" × 27.6", 100KG/220LB

Operating Temperature

Suggested 18-28°C

Suggested 64-82°F

Power Requirement

100VAC/240VAC optional, 50/60Hz, 1000W

Optical System

5000 (±300) Lux blue LED array

liquid cooling system

Mechanical

Sheet Metal, Machined, fully enclosed

Connectivity

USB, Ethernet

Desktop Software

System Requirement

Windows 7 and up, Mac OS X 10.7 and up, OpenGL 2.1, 16GB RAM, Graphic card

Advanced Features

Multi-printer management

Built-in advanced model repair

Ultra large file support (1GB+)

Compatible Format

STL, OBJ, AMF, 3MF, UNIZ
