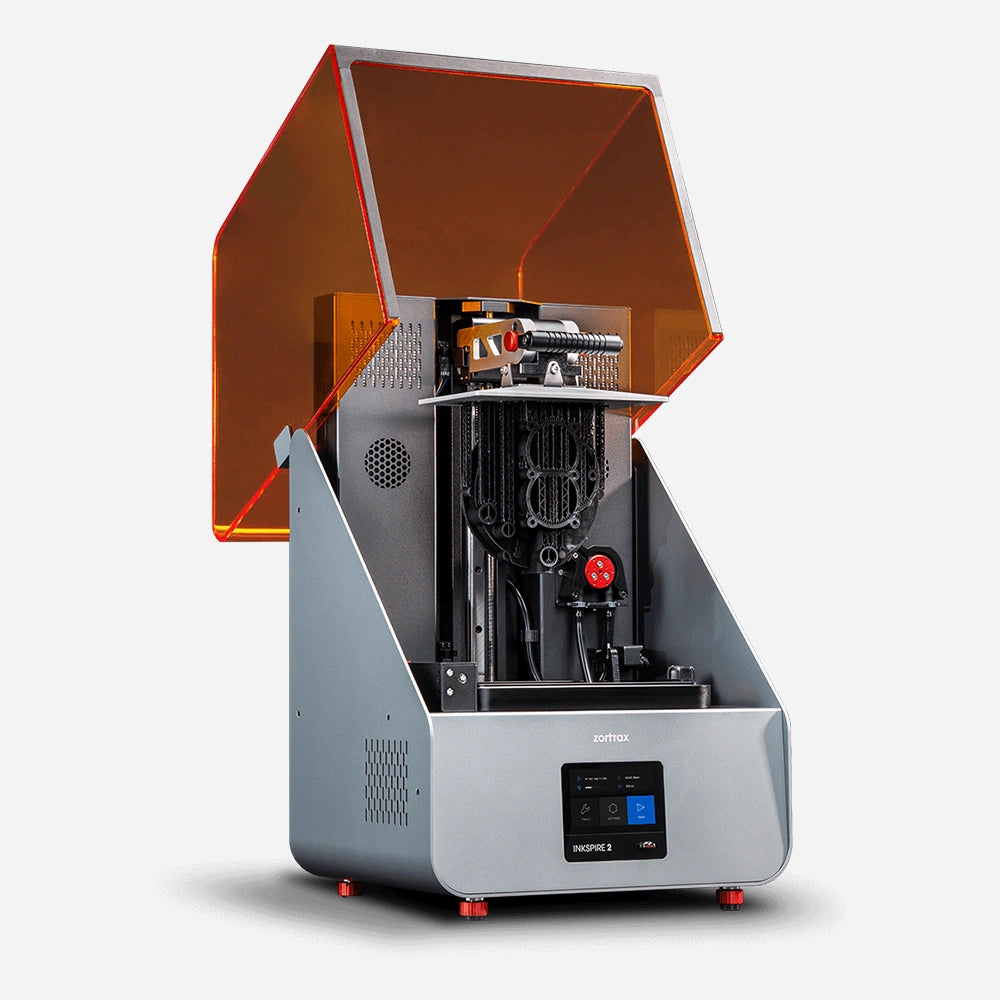

Zortrax Inkspire 2 - Resin 3D Printer

$ 4,390.00

$ 4,390.00
Zortrax Inkspire 2 features

Zortrax Inkspire 2

The new benchmark for refined resin 3D printing systems

Made in the EU

Large Build Volume

Integrated Ecosystem

Highly Automated

Wide Compatibility

Plug & Play

Zortrax Inkspire 2 resin profiles

Quality approved by top resin manufacturers

The Inkspire 2 is compatible with many advanced engineering resins, including those previously available only for DLP 3D printers. Zortrax is working with brands like Henkel/Loctite and BASF Forward AM to ensure properties of parts printed with their best-performing resins match or exceed values specified by the manufacturer. This conformity is guaranteed by a thorough, two-stage validation process, where 3D printed models were first tested in-house by Zortrax and then, independently, by the resin manufacturers who made the test prints on pre-production Inkspire 2 units sent to their laboratories. Test samples were post-processed using Zortrax Cleaning Station and Zortrax Curing Station which means the validation extends to the entire Zortrax resin 3D printing ecosystem.

basf x henkel
Zortrax Inkspire 2 basf approved
Zortrax Inkspire 2 details

What Makes the Inkspire 2 Special

HEPA filters: Protect your health and enjoy peace of mind with active reduction of harmful fumes.

Resin pump: Integrated resin pump performs convenient resin loading and active resin level management.

Proprietary light engine: Inkspire 2's light engine is 7x more powerful allowing for 4x build volume. While also achieving 40% more uniform light distribution.

Intuitive touch screen: Large and high quality touch screen provides streamlined experience for seamless printer operation.

Zortrax Inkspire features

Soft-closing top cover: Protects the machine and your floors by preventing spills during setup and cleaning.

Easily attached build platform: The easily removable platform comes pre-calibrated from the factory, making it ready for immediate use.

Wi-Fi: Streamline the 3D printing management process with Wi-Fi and Zortrax inCloud, all the tools necessary for convenient and efficient printer management.

Resin holder with a weight sensor: Inkspire 2's will compare the weight of available material with vat measurements to determine if there is enough material for the current print.

Zortrax Inkspire 2 light engine

Industrial-grade proprietary light engine

The light engine in the Inkspire 2 has been developed in-house from the ground up. Zortrax engineers designed an array of UV diodes backlighting a monochromatic screen to achieve uniform UV exposure of every single pixel on a large build platform while retaining utmost precision. Therefore, resin 3D models made on the Inkspire 2 have the same, outstanding quality, regardless of whether they are placed in the center or towards the edges of the build platform. Finally, this new light engine is seven times more powerful than a standard UV LCD screen, which makes Zortrax Inkspire 2 compatible with chosen DLP resins.

Highly uniform

Pin-point accuracy

Wide compatibility

7 times more powerful

Clever Automation

The Inkspire 2 makes the entire resin 3D printing process simple and clean through automation cleverly implemented in its key components. This makes working with photopolymer resins easier than ever.

Zortrax Inkspire 2 automation

Smart build platform

The build platform in Zortrax Inkspire 2 is designed to make tasks like removing resin 3D prints or getting rid of leftover resin easier. The platform is easily attachable and comes factory-calibrated to make the Inkspire 2 ready for work out of the box.

Zortrax Inkspire 2 build platform

Intelligent hinge enables easy attachment and removal.

Zortrax Inkspire 2 calibration

Factory-calibrated and available 3 step user calibration.

Zortrax Inkspire 2 post-processing

Fast and easy attachment to cleaning station.

Zortrax Inkspire 2 Resin management features

Resin management system

The Inkspire 2 3D printer recognizes how much resin is available in the vat and identifies the amount needed to complete the printing process. There are three separate components working together to make this system work.

Zortrax Inkspire 2 resin vat

Resin vat sensors constantly monitor vat resin level.

Zortrax Inkspire 2 resin weight sensor

Built-in resin weight sensor tracks available resin.

Zortrax Inkspire 2 resin pump

Resin is intelligently moved between bottle and resin vat.

Zortrax Inkspire 2 resin vat features

Practical resin vat

The resin vat in the Inkspire 2 is made to solve real issues users have with operating resin 3D printers. It can be easily installed and detached. Curved corners make it easier to clean. An automatic wiper deals with sedimentation in more advanced resins. It is a simple design that works.

Zortrax Inkspire 2 resin vat locks

Easily accessible vat locks vat into place.

Zortrax Inkspire 2 trasfer pump

The transfer pump makes unloading and swapping resins more efficient.

Zortrax Inkspire 2 automatic wiper

Automatic wiper prevents sedimentation during long prints.

Zortrax Inkspire 2 light engine


Z-SUITE is a slicing software that comes free with every Zortrax 3D printer. It is made to prepare digital models for 3D printing to achieve the best possible quality of printed parts in the shortest time.

Consistent results

Pin-point accuracy


Additional supports exposure

Zortrax inCloud

The Inkspire 2 has Wi-Fi connectivity which makes it compatible with Zortrax inCloud, a cloud-based 3D printing management service.


All Zortrax 3D printers with network connectivity can be accessed via Zortrax inCloud from literally anywhere in the world.


Zortrax inCloud has built-in staff management functionalities. Added users can be organized into teams with assigned 3D printers.


The status of all teams and 3D printers can be checked through Zortrax inCloud in real time. Stored data includes assigned projects, working hours and used materials.

Zortrax Inkspire 2 remote printer management

Full control

Zortrax inCloud enables real-time, remote management capability over all available Zortrax 3D printers and workforce. Prints can be uploaded, started, and paused on each machine connected to the inCloud account.

Zortrax remote printer management

Printing farm management

3D printing farms are clusters of 3D printers used typically for medium to large scale production. With Zortrax inCloud it is possible to organize 3D printing equipment and human resources into teams responsible for different 3D printing projects.

No failed 3D prints caused by blackouts

Zortrax Inkspire 2 has the same, tried and true, blackout response system that works in Zortrax M Series Plus 3D printers. At all times, the machines store enough energy to save the printing progress whenever a power outage occurs. Once the power is back on, 3D printing can be resumed from the same spot. No more failed prints, no more time lost, no more resin wasted.

Zortrax Inkspire 2 blackout response

Advanced post-processing ecosystem

Most professional resins require post-processing to achieve manufacturer's declared properties after the printing is done. Therefore, Zortrax has introduced Zortrax Cleaning Station and Zortrax Curing Station: two automatic post-processing devices that complement the Inkspire 2 UV LCD 3D printer in an advanced ecosystem. The purpose of Zortrax Cleaning Station is to remove uncured resin from the surfaces of models while Zortrax Curing Station provides UV curing to materials that need it.

Zortrax Inkspire post-processing

Step 1 Printing

All Zortrax 3D printers with network connectivity can be accessed via Zortrax inCloud from literally anywhere in the world.

Zortrax Inkspire post-processing

Step 2 Cleaning

Leftover resin is cleaned off the model's surfaces in the Zortrax Cleaning Station.

Zortrax Inkspire post-processing

Step 3 Curing

Cleaned model is UV-cured in the Zortrax Curing Station.

Zortrax Inkspire Cleaning station

Zortrax Cleaning Station

Zortrax Cleaning Station is a post-processing device removing excessive, unsolidified resin from the surfaces of models made on all types of photopolymer 3D printers. Cleaning should be done before UV curing and is necessary to preserve the model's dimensional accuracy.

Zortrax Curing Station

Zortrax Curing Station is a post-processing device providing additional UV curing of parts made in all resin 3D printing technologies. This additional curing is necessary for most resins to achieve their target mechanical properties.

Zortrax Inkspire Curing station



Build volume 192 x 120 x 280 mm (7.56 x 4.72 x 11.02 in)
Platform pre-calibrated during quality control
Connectivity Wi-Fi, LAN, USB
Operating system Android
Touchscreen 4'' IPS 800 x 480
External materials applicable
Supported formats .zcodex2

Calibrated Resins

In the box

Zortrax Inkspire 2

UV Resin

Bottle Holder

FEP Film (set)

Wiper Set

Resin Sensor Set

Starter Kit


Technology UV LCD
Pixel size 50 μm
Layer thickness 25, 50, 100 μm
LCD screen 8.9″ monochrome
Light source integrated LED panel (wavelength 405 nm), ensuring even light distribution across the entire platform
Supports mechanically removed - printed with the same material as the model


Ambient operation temperature 20-40 °C
Storage temperature 0-35 °C


AC input 100-240 V AC 6.2 A 50/60 Hz
Maximum power consumption 340 W


Software bundle Z-SUITE
Supported file types .stl, .obj, .3mf, .dxf (only 2D models), .ply
Supported operating systems Mac OS Mojave and newer versions
Windows 7 and newer versions

Additional information

All information contained in this brochure and specification is subject to change without notice. Each delivered printer may have worked up to 90 hours during the quality control test prints.
