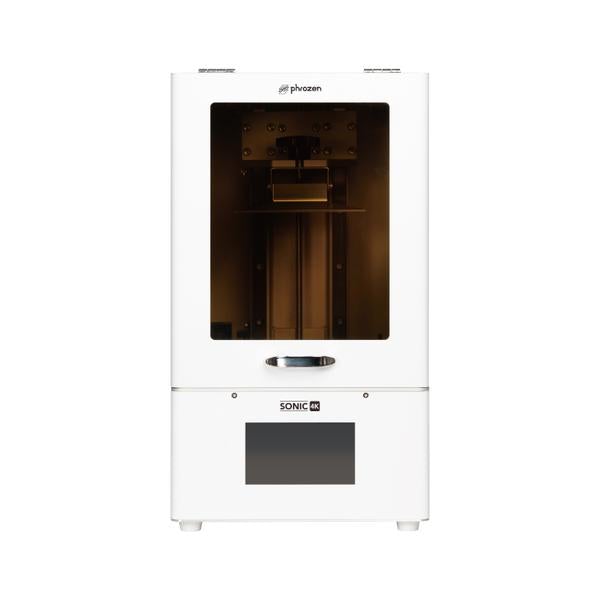

Phrozen Sonic 4K Resin 3D Printer

$ 1,799.00 $ 1,199.00

-
+
$ 1,199.00

Phrozen Sonic 4K Resin 3D Printer

While specially designed for the dental industry, the Sonic 4K offers also works great for those wanting to print highly detailed models, jewelry, prototypes and more. It comes with built-in parameters for dental applications that work to print out all the dental models you need with high precision and accuracy.

With a super-high resolution of 722 PPI, this printer prints at 35µm, and offers an ample printing space of 6.1”. You’ll also be able to print one layer in only one second, which is twice as fast as the Sonic Mini 4K!

The Sonic 4K uses a super-stable Z-axis to ensure that users have a quiet and smooth printing experience.

Model Sonic 4k Sonic XL 4k Sonic 4k 2022 Sonic XL 4k 2022
Open Materials
Monochrome LCD Screen
Touch Screen Interface
High Quality Dual z-axis
Rails and Ball Screw
Para LED 3.0 module
Adjustable LED Light Sytem X X
USB / Ethernet
WiFi X
Leveling Feet X X
Door Buffer X X
Air Filtration System X X
Heated Enclosure X X
Slicer CHITUBOX Phrozen 3D Power DS Slicer
Premium Dental Slicer
DS Slicer
Premium Dental Slicer
Build Plate Dimensions L13.4 x W7.5 x H20 cm L19 x W12 x H20 cm L13.4 x W7.5 x H20 cm L20 x W12.5 x H20 cm
Build Volume 2010 cm3 4560 cm3 2010 cm3 5000 cm3
XY Resolution 35 µm 50 µm 35 µm 52 µm

Benefits

  • 4K with 6.1” Printing Area: 3840 x 2160 ultra-high-definition. Prints at 35µm with 722 PPI,  the highest PPI ever, with a large printing area of 6.1”
  • Monochrome LCD Screen: Prints up to 5 times faster than traditional 3D printers, and up to twice as fast as the Sonic Mini 4K. 2000 working hours guaranteed for all LCD screens; we offer a free 3-month warranty for all LCDs.
  • Solid Design: Made with Aluminum & designed to ensure a quiet and smooth printing process
  • Supports Remote File Transmissions: Connects to your router directly via the ethernet, allowing you to send over your file remotely and start printing immediately
  • Built-In Printing Parameters for Dental Application: Works with resin print settings from NextDent, Dreve, KeyStone, HarzLab, Enlighten & Dentona. Also compatible with resins of 385nm & 405nm

Specs

  • System: Phrozen OS
  • Operation: 5in Touch Panel
  • Slicer Software: Chitubox
  • Connectivity: USB | Ethernet
  • Technology: Resin 3D Printer - LCD Type
  • Light Source: 405nm ParaLED Matrix 3.0
  • XY Resolution: 35 µm
  • Layer Thickness: 0.01-0.30mm
  • Printing Speed: 90mm/ hour
  • Power Requirement: AC100-240V~50/60Hz
  • Printer Size: L260 x W230 x H460 mm
  • Printer Volume: L133 x W75 x H200 mm
  • Printer Weight: 14.5kg
