Printers
4 Element/HT
3D Printers
Storage
1 Cart
Stores Competed Print Beds
Material Management
4 Palette X
1 Per Element Printer
Automation
40 Print beds
For Continuous Printing
Material
32 Material
Pods
8 Per Element Printer
Automation
1 Robotic
Arm
Automatically Removes/Replaces Print Beds
Increase Throughput
Large build volume and automated print monitoring means low downtime and high throughput.
Expand Range
Print up to 8 materials in a single part with industrial materials, including PEEK, PEKK and Ultem.
Automate
With one operator able to run the equivalent of 250 3D printers, 3D printing large production volumes is finally possible.
Manage Team Workflow With Canvas
Control all your printing workflows with Canvas. With smart queueing, detailed dashboards and project management you have full control of your print queue and key performance metrics.
Spend your time where it counts
Rely on Array's bed removal and material changing systems so your team spends less time working with printers and more time on other activities.
Precision printing, every time
Automated bed leveling ensures your printhead stays the correct distance from the build plate, allowing for greater consistency within your prints.
Unlock ultimate flexibility with Palette X
Print with up to 8 materials in a single part to unlock an entirely new range of prints. Mosaic's Palette X technology brings a new dimension to your parts.

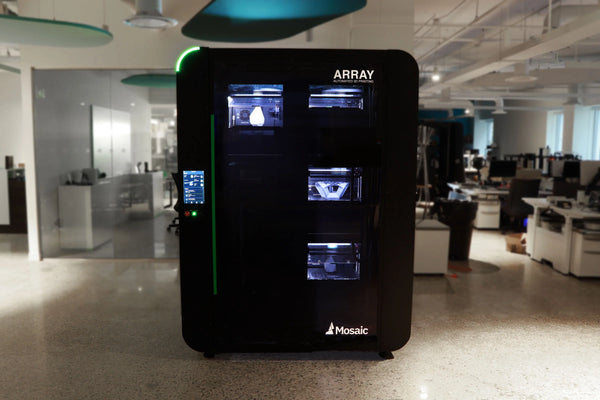

Types of Array Printers
Array 32
- 4 ELA Printer
- 32 Material Pods
- 48 Type 1 Beds
- 8 LT Print Heads
- 1 Storage Cart
Array 8
- 4 ELA Printer
- 8 Material Pods
- 8 Type 1 Beds
- 4 LT Print Heads
- 1 Storage Cart
Array Specifications
| Build Speed: | < 100mm/s, max printhead move speed of 200mm/s | Build Plate: | Spring steel build plate, automatically changed via internal robotic arm |
| Heated Bed: | 0 - 120°C | Thermal Chamber: | 0 - 80°C |
| Max Nozzle Temperature: | 300 - 500°C | External Fume Extraction: | Integrated exhaust fan with optional 3” external fume extraction hook up (not included) |
| Dimensions: | 355mm | Array Weight (No Elements): | 925 lbs |
| Array Weight (x4 Elements): | 1325 lbs | Build Envelope: | 1.6m x 3.2m x 2.1m (5’2” x 11’2”, 5’2”) |
| Power Supply Input: | 230V AC, 30A | User Interface: | 5” color touch screen or remote access from Canvas |
| Monitoring: | Live camera inside chamber | Status Indication: | RGB stack light |
| Nozzle: | 0.4mm hardened steel nozzle | Compatible Models: | Print Head 0.4, Print Head 0.4 HT |
| Serviceability: | Modular extruder, tool-less removable in < 60 seconds | User Interface: | 5” color touch screen or remote access from Canvas |
| Max Speed (Travel): | 300mm/s | XYZ Resolution: | 12.5μm, 12.5μm, 0.4μm (X ,Y, Z) |
| Layer Resolution: | 20-320 microns | Supported Materials: | Mosaic PLA, Mosaic PETG, Mosaic Matrix, Mosaic ABS, Mosaic Breakaway, Mosaic PEEK (HT), Mosaic PEKK (HT), Mosaic Ultem 9085, Mosaic ESD |
| Material Type: | Mosaic certified, Non-Mosaic, other materials not supported | Material Bays: | 8 x 1500cc Material Pods Per Printer (12,000cc/Printer Total) 32 x 1500cc Material Pods in Array (48,000cc/Array Total) |
