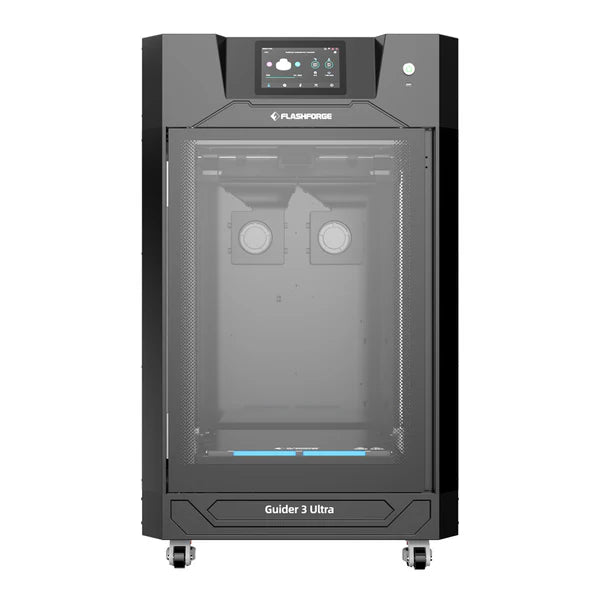

Guider 3 Ultra
The Flashforge Guider 3 Ultra is a commercial grade additive manufacturing equipment with ultra high speed printing, reliability, and quiet printing operation.
Ultra high speed 3D printing at a commercial and industrial grade levels is what the FlashForge Guider 3 Ultra can offer to your business. Featuring CoreXY design for extreme high throughput while maintaining the legendary Flashforge reliability and quality.
CoreXY Design
Efficiency and Quality
CoreXY Design: smoother movement, reduced resonance frequency, quiet operation, and reduced misaligned layers
High speed printing at 500 mm/sec
Quiet Operation Even with High Speed Settings
Superior Model Suface Details
Newly designed internal structure improves the printing efficiency while improving on strength of the print structure
The dual Z-axis ball screw design provides accurate positioning and smooth model surface resulting in high quality prints
Uninterrupted Steady Movement
Featuring ultra sturdy and smooth dual z-axis ball screws and guides
Built-in Filament Drying Chambers
The dual sealed filament chambers will effectively ensure that filaments are in a sealed and dry environment both during the printing process and in the idle state. The humidity level can be visually viewed with a hygrometer equipped.
HEPA 13 Air Filtration System
Comes standard with the Guider 3 Ultra
Material Compatibility:
PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, PLA-CF, PLA
Third-party Filaments Supported
Note: Use of high quality filaments is highly recommended
Resume Printing from Power Outage
Filament Run-out
Assisted Leveling and Automatic Calibration
Flexible and Removable Build Plate
Quick Release Nozzle
Remote Video Control and Monitoring
Specifications
Printing
- Printing Precision: ±0.15mm or 0.002mm/mm
- Position Precision: X/Y axis: 0.011 mm; Z axis; 0.0025 mm
- Layer Thickness: 0.05-0.4mm
- Build Volume: Single Extruder - 330(L) x 330(W) x 600(H) mm (13 x 13 x 23.6 in) Dual Extruder - 300(L) x 330(W) x 600(H) mm (11.8 x 13 x 23.6 in)
- Nozzle Diameter: 0.4 mm Standard (Optional 0.6 mm/0.8 mm)
- Maximum Extruder Temperature: 350°C (660°F)
- Heated Build Plate: Yes
- Filament Diameter: 1.75 mm
- Filament Compatibility: PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, PLA-CF, PLA, PETG, PVA, HIPS
- Print Speed: 10-250mm/s
Mechanical & Dimensions
- Number of Extruders: Two
- Printer Dimensions: 635(L) x 550 (W) x 1070(H) mm (25 x 21.7 x 42 in)
- Packaging Dimensions: 775(L) x 690(W) x 1235(H) mm (30.5 x 27.2 x 48.6 in)
- Net Weight: 155 LBS (70 KG)
Electrical
- Power Supply: AC100-240V , 850W Max
- HD Touch Screen: 7 inch
- Connectivity: WiFi, Ethernet, USB Flash Drive, Cloud Printing
- Certification: CE / FCC / RoHS
Software
- Software: FlashPrint Third Party Slicing Software: Slic3r, Cura (Required to set up)
- File Input Format: STL / 3MF / OBJ / FPP / BMP / PNG / JPEG
- File Output Format: GX / G / GCode Supports (OS): Windows XP/Vista/7/8/10, and Mac OS
